Woven red belt (collar) without eyelet with plastic safety buckle. Suitable for d-control…

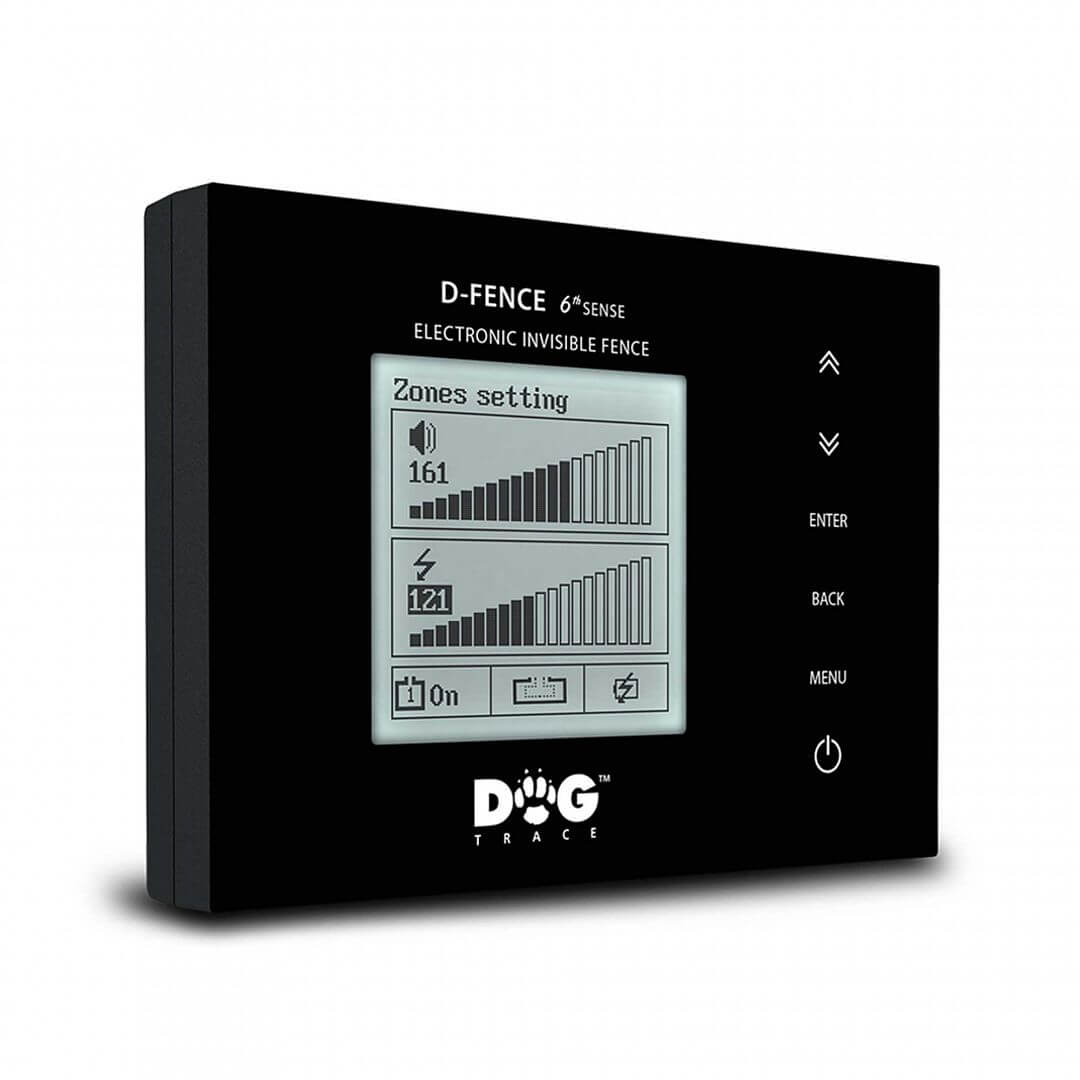

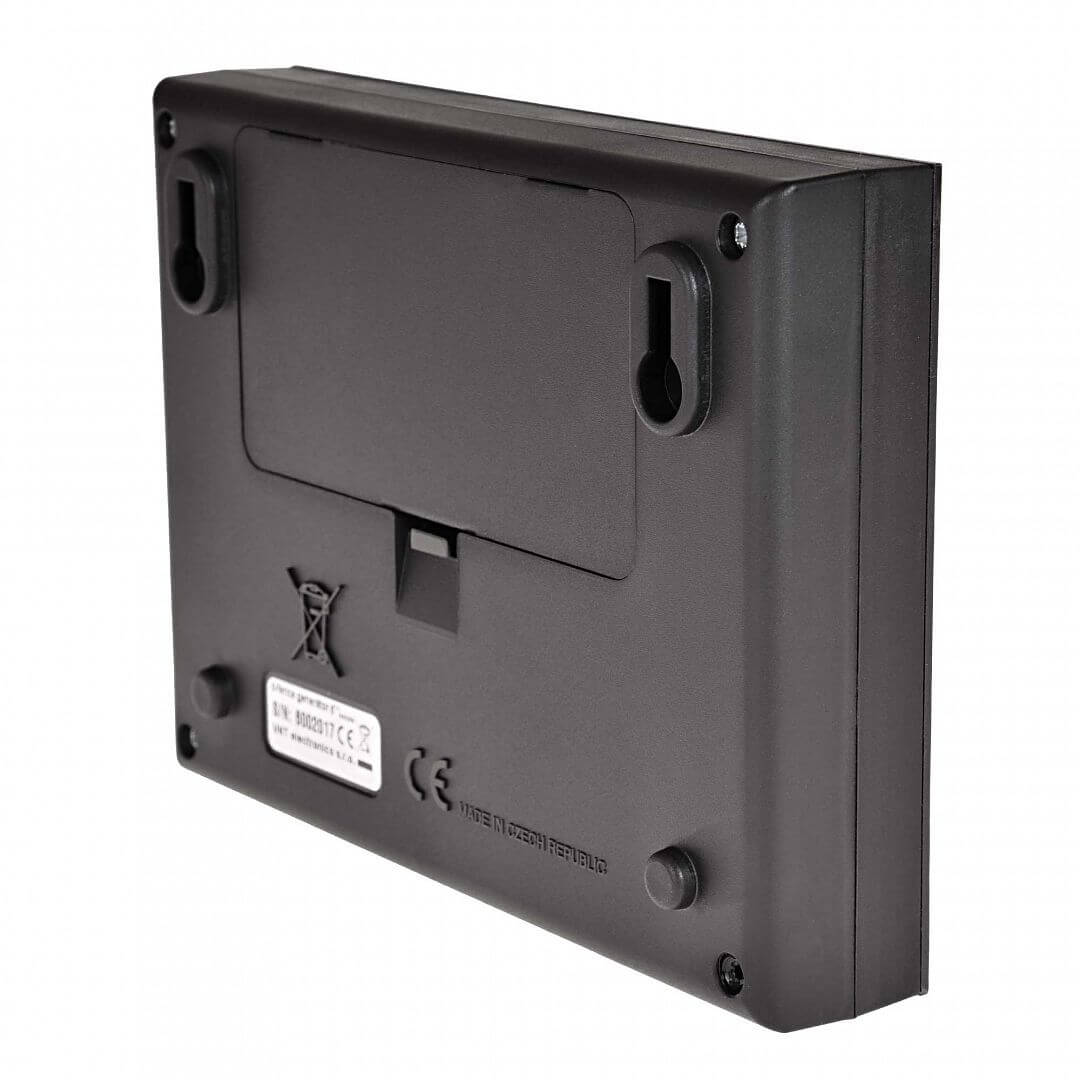

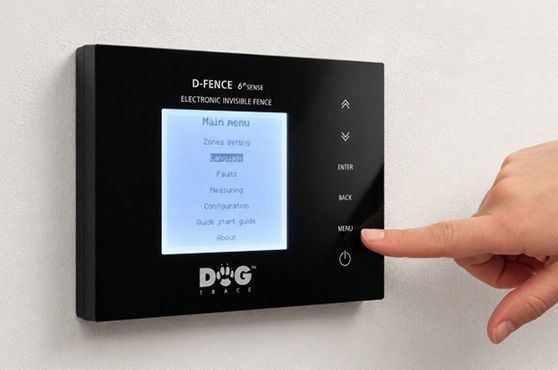

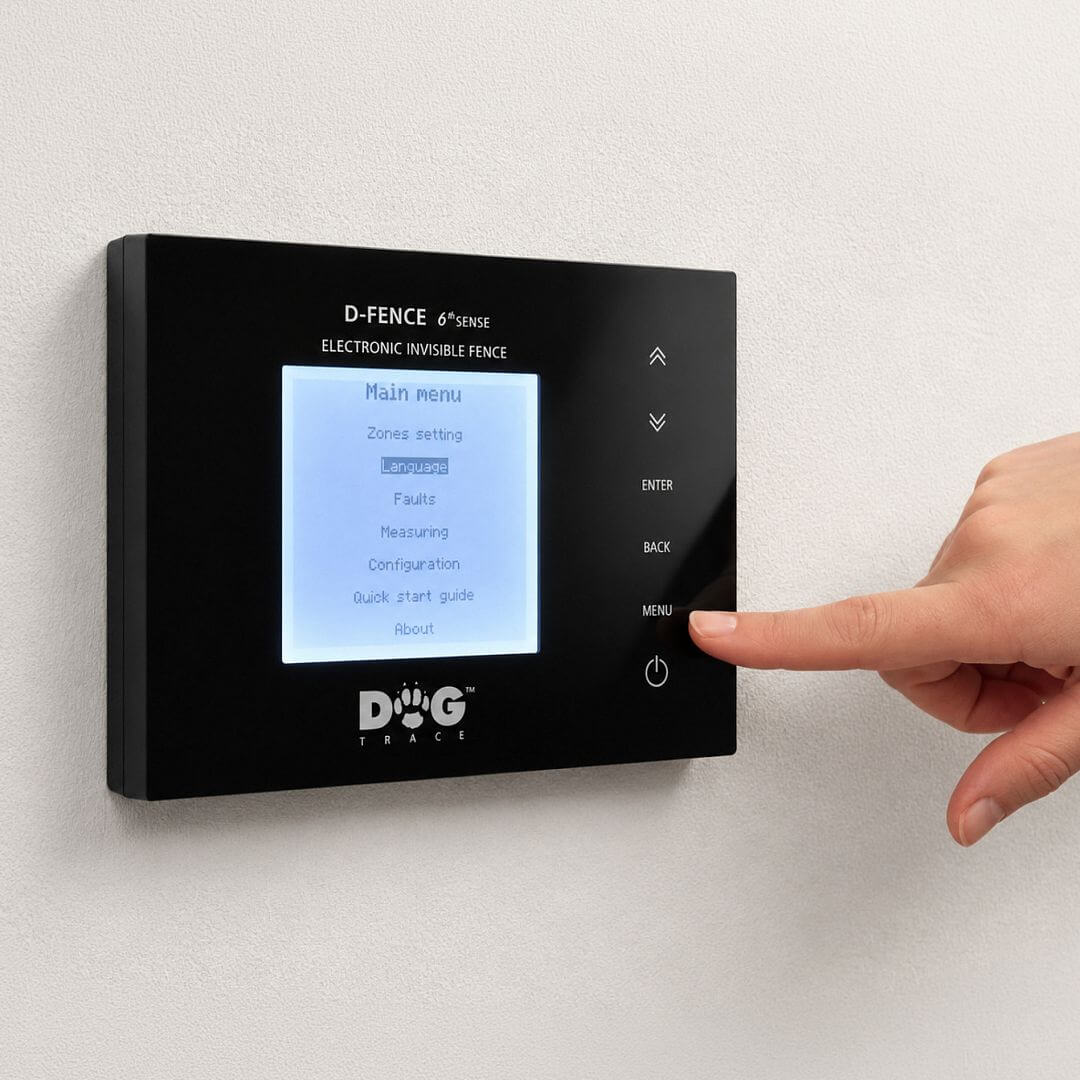

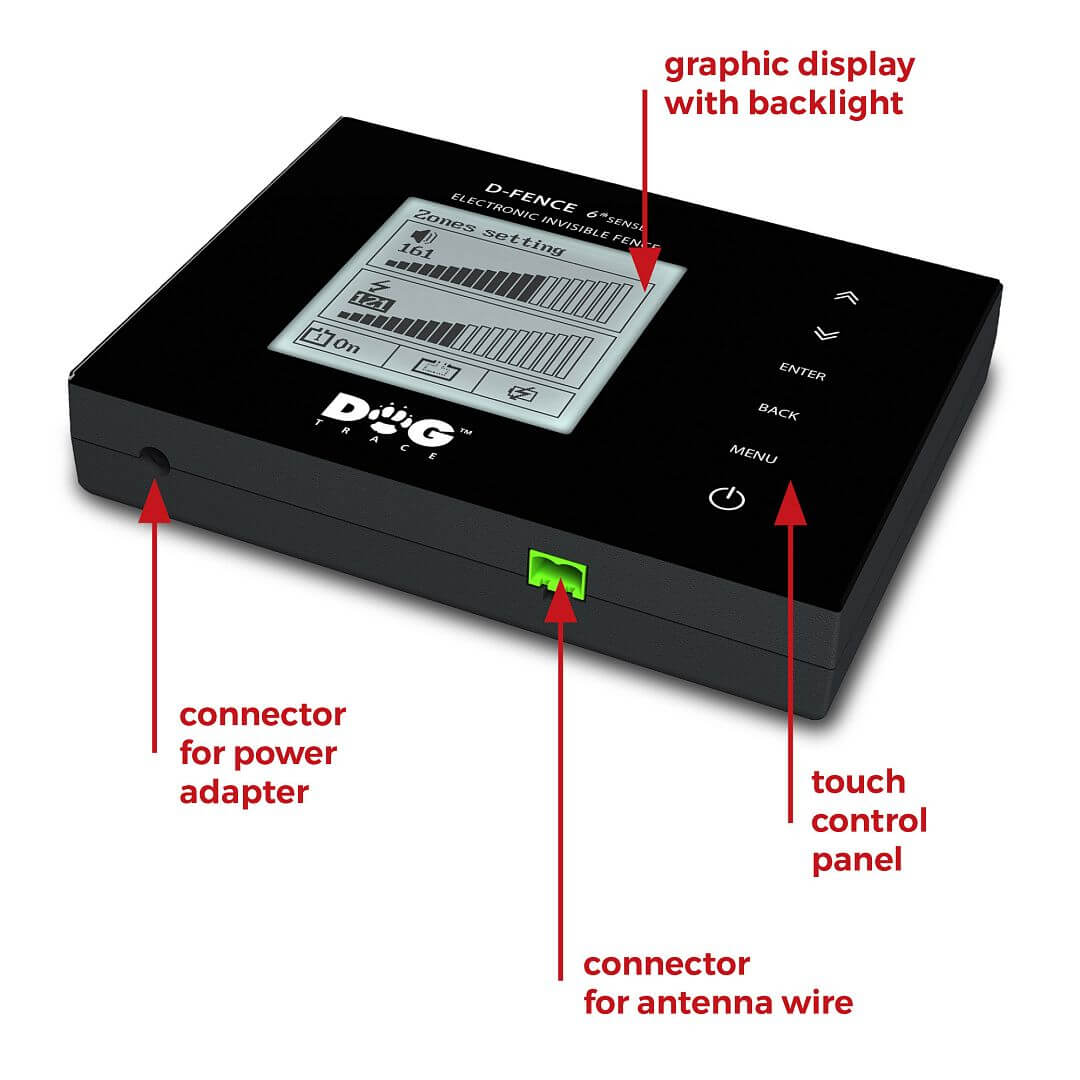

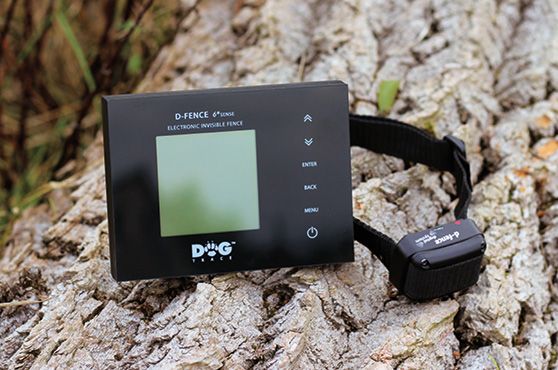

Transmitter unit

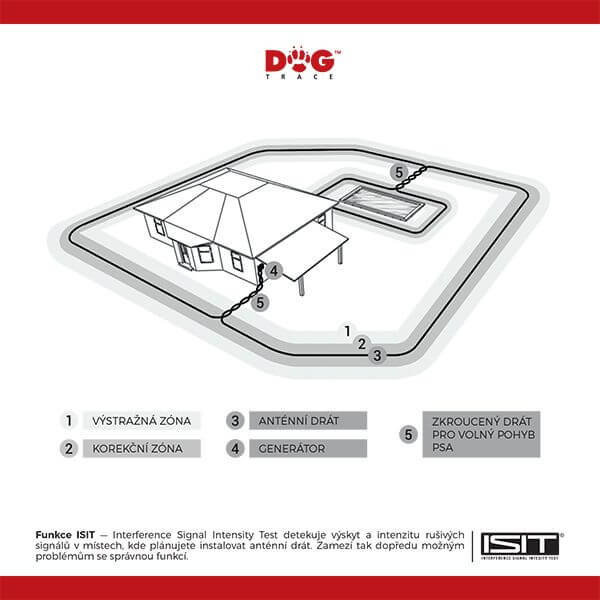

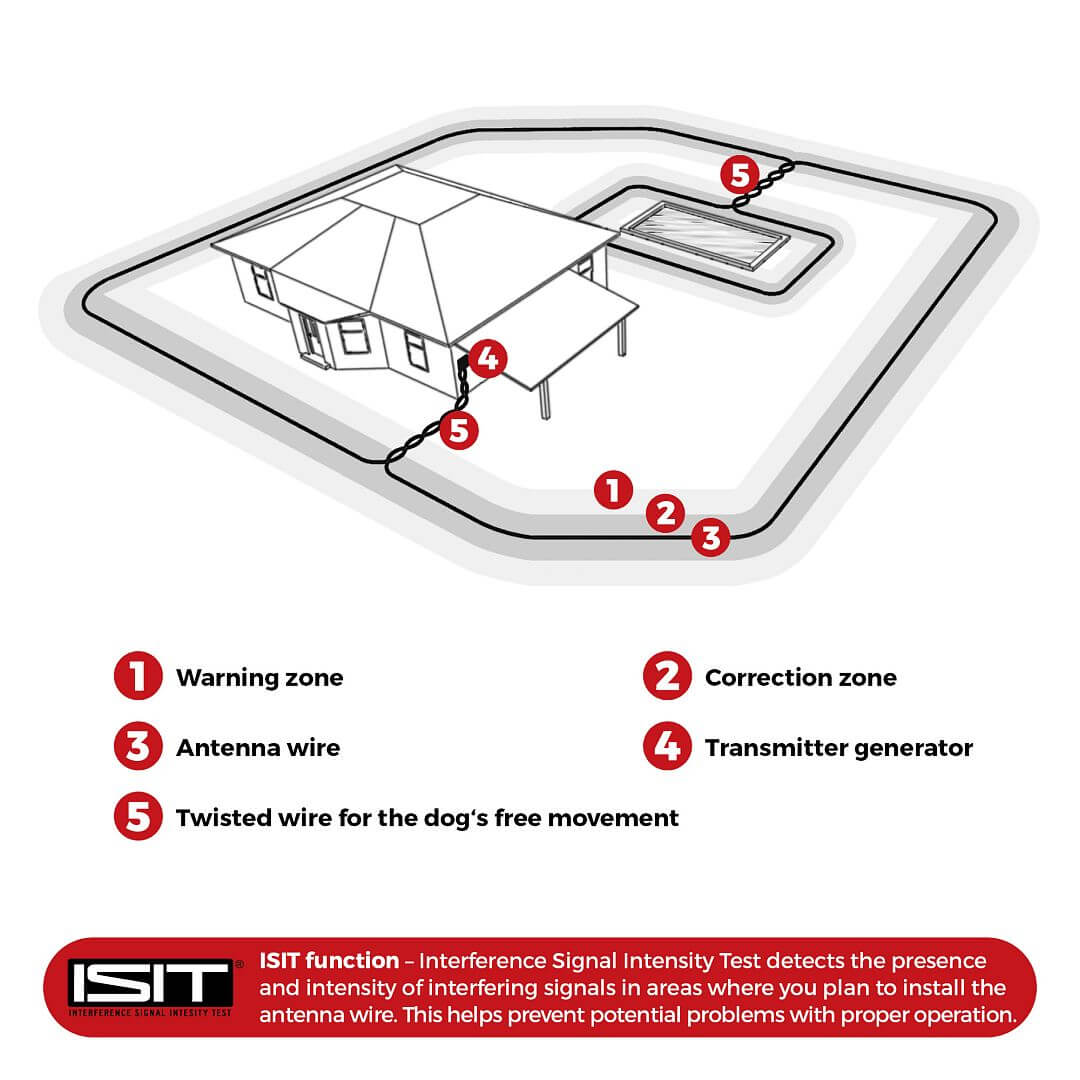

- warning zone: width of the zone from 0 to 10 m
- correction zone: width of the zone from 0 to 10 m
- power supply: adapter 230 V/50 Hz, 15V/300 mA
- max. covered area: 30 ha (square-shaped installation)
- for installations up to 2200 m

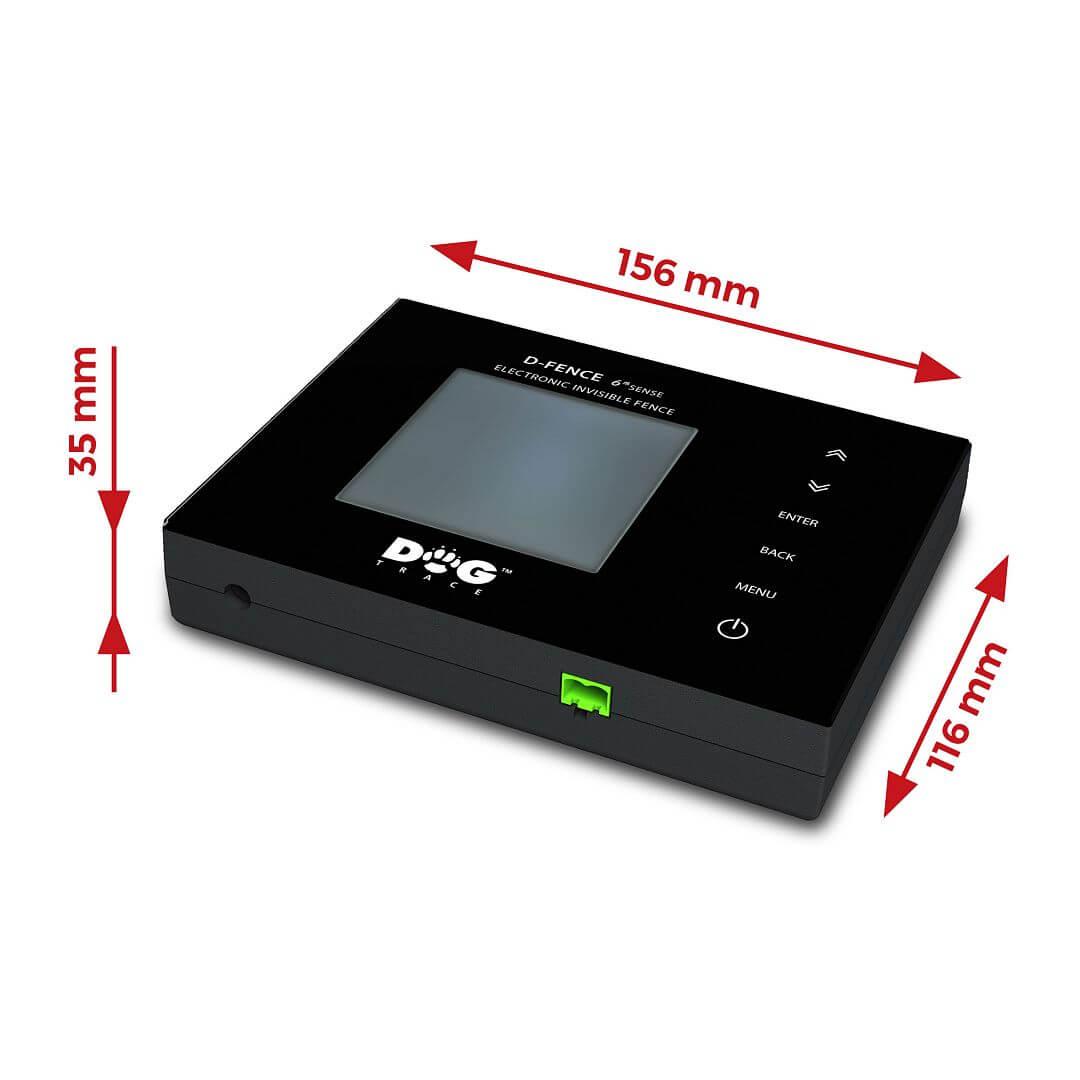

- dimensions: 156 × 116 × 35 mm
- weight: 316 g

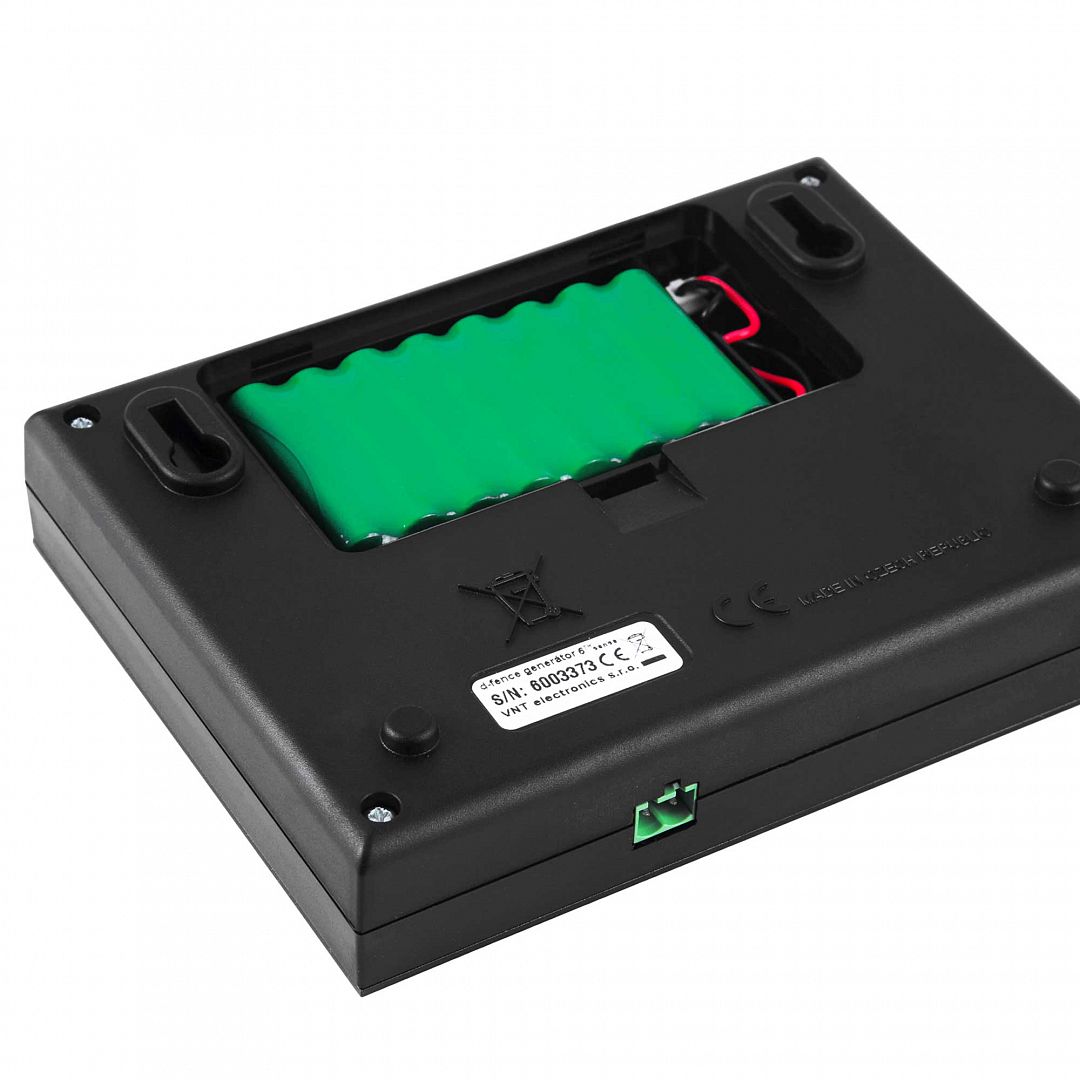

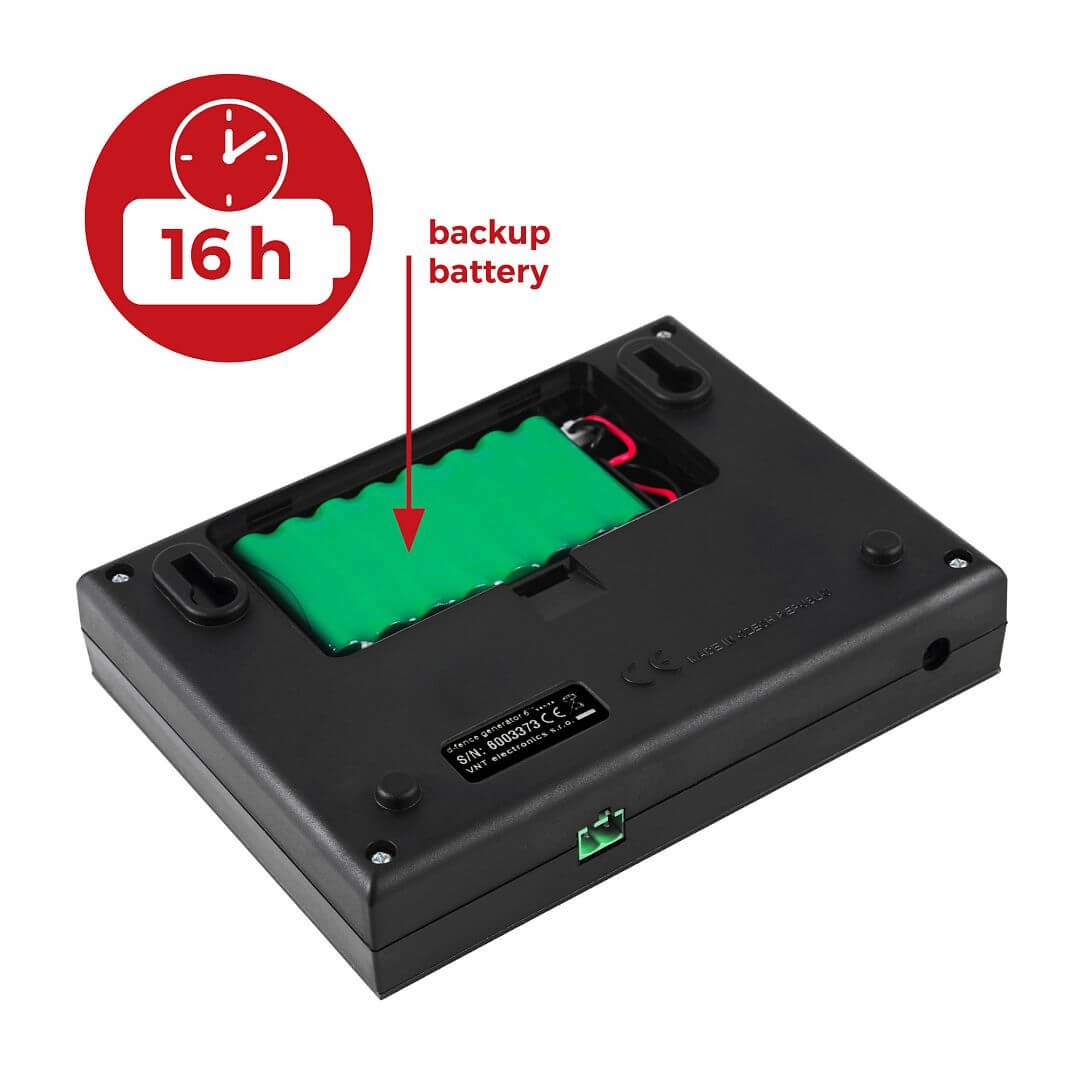

- back-up power supply: battery pack 9,6V

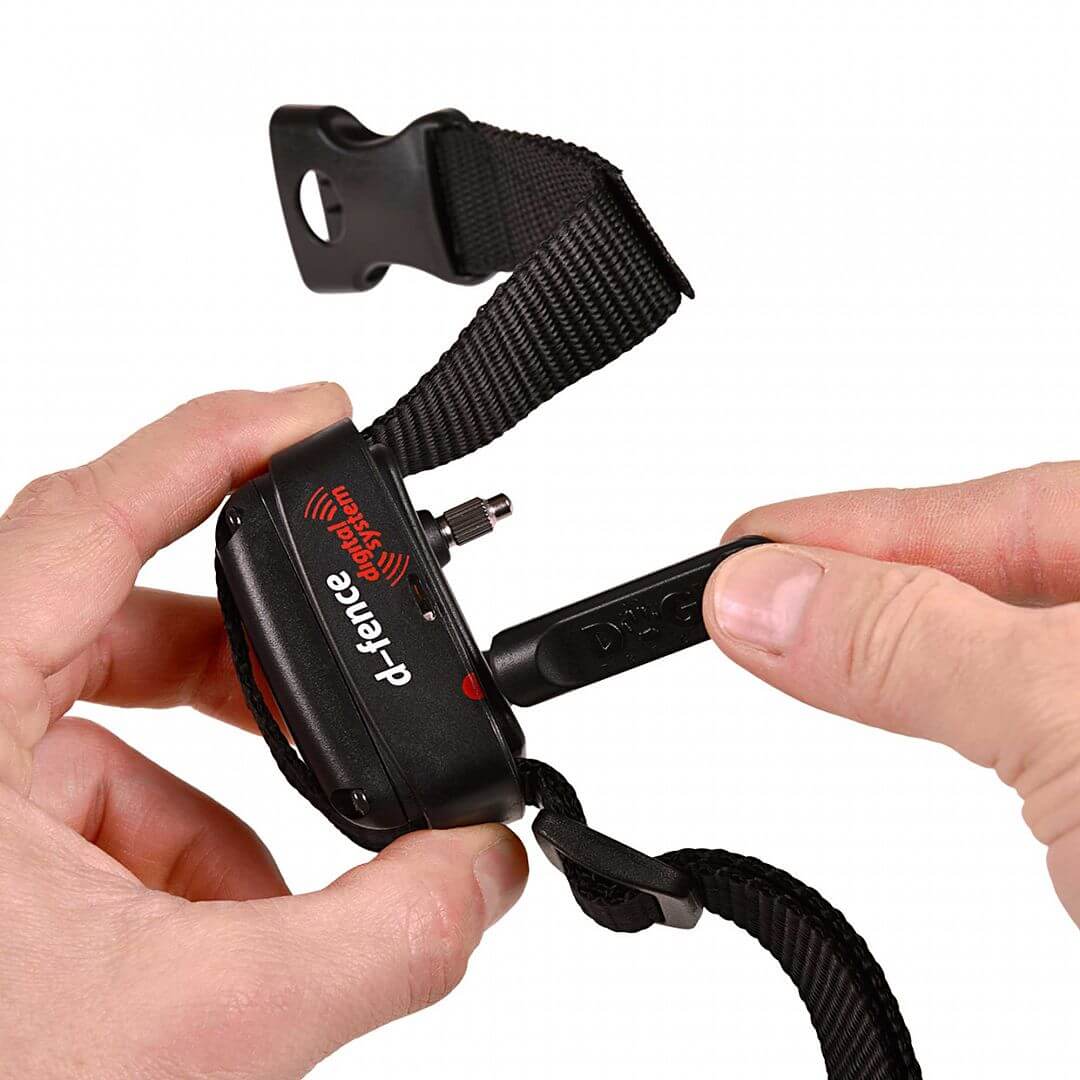

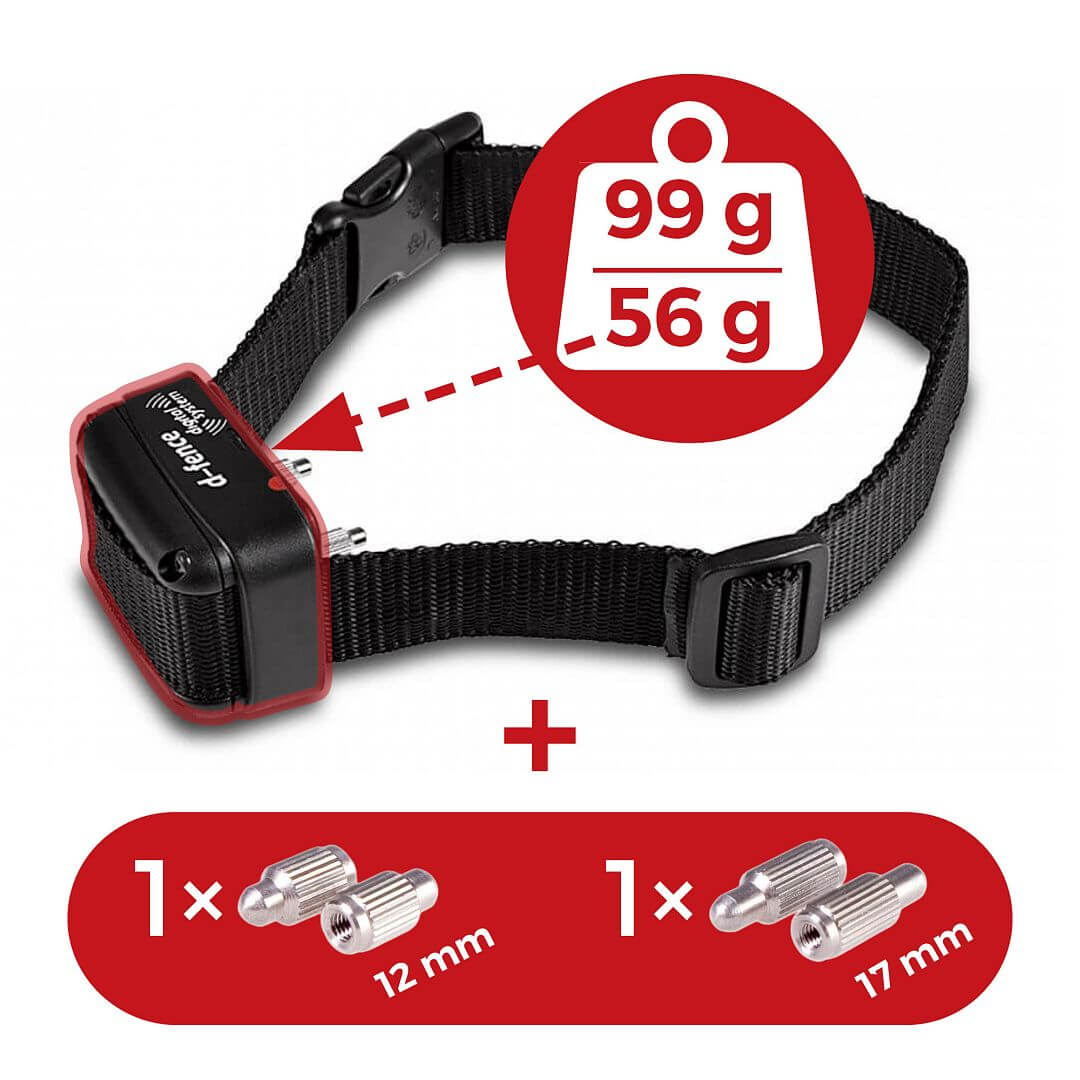

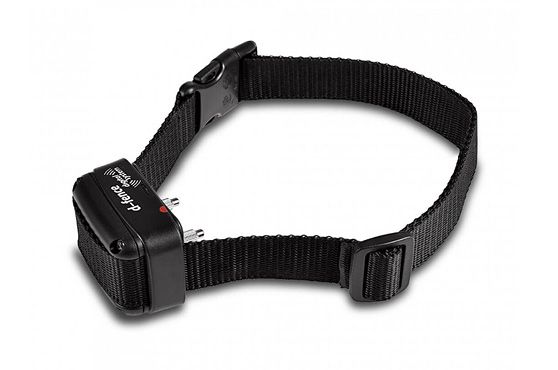

Receiver
- waterproof
- weight: 60 g (without battery and contact points)

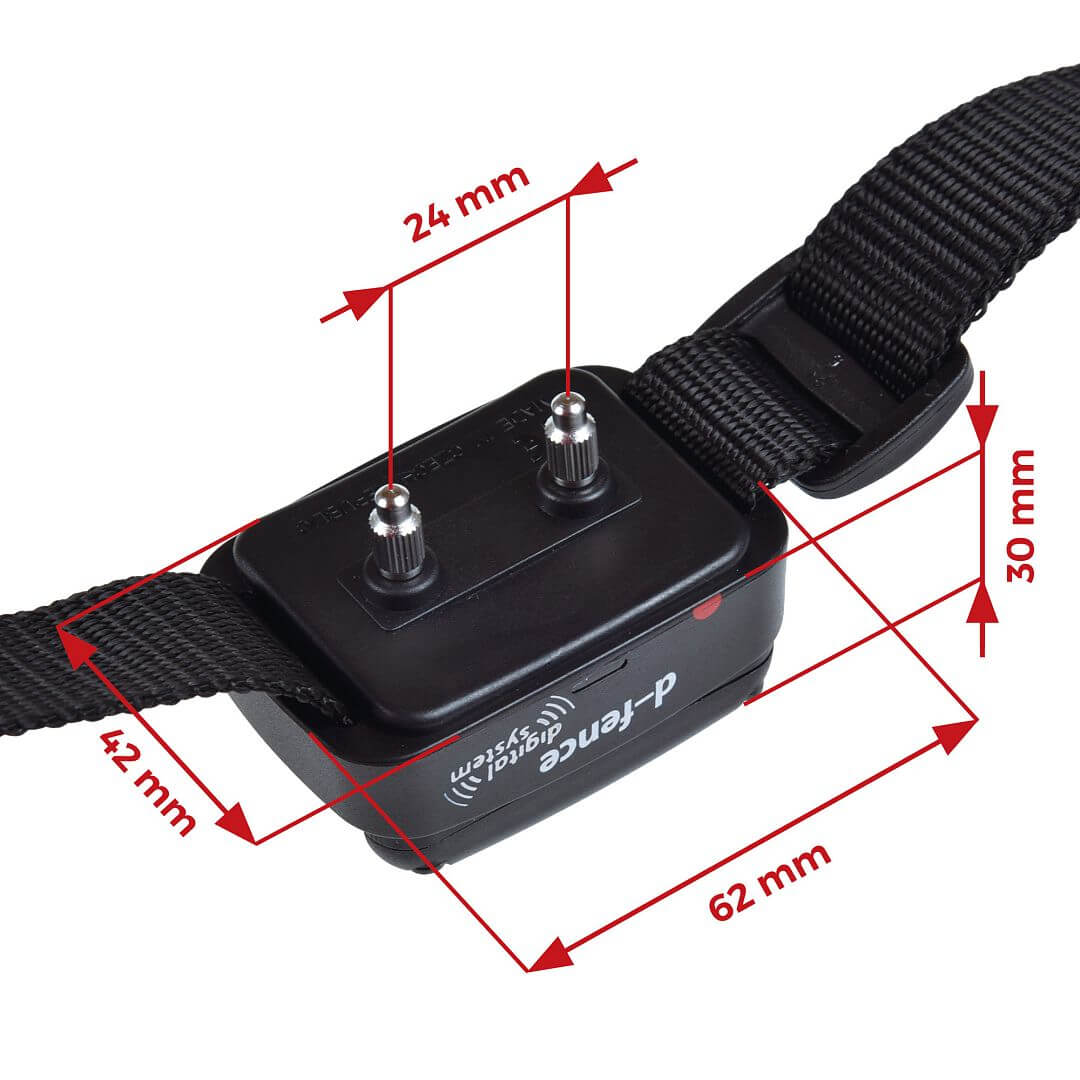

- dimensions: 64 × 43 × 34 mm
- power supply: CR2 3V
- battery life: up to 6 months in stand-by
- 8 stimulation levels

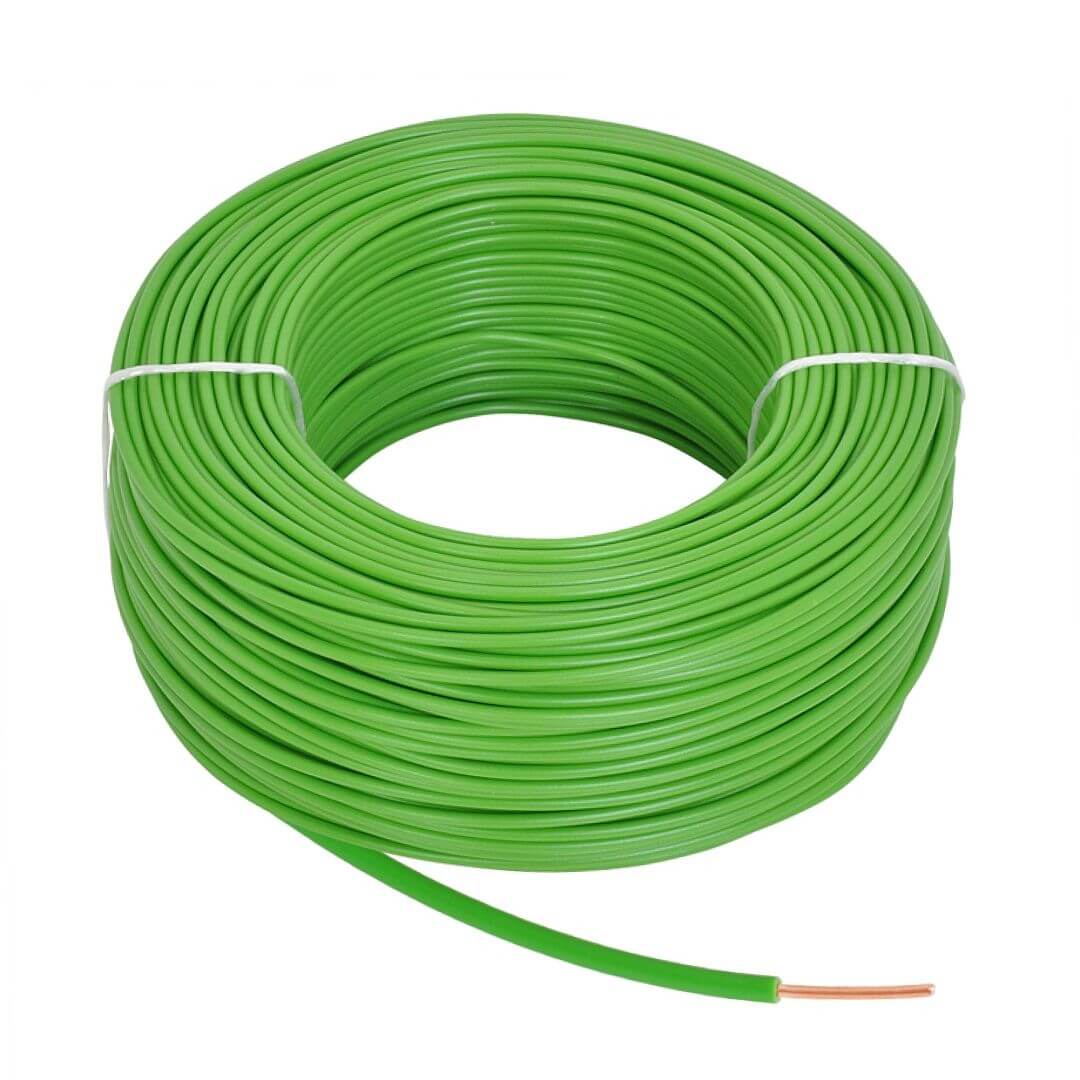

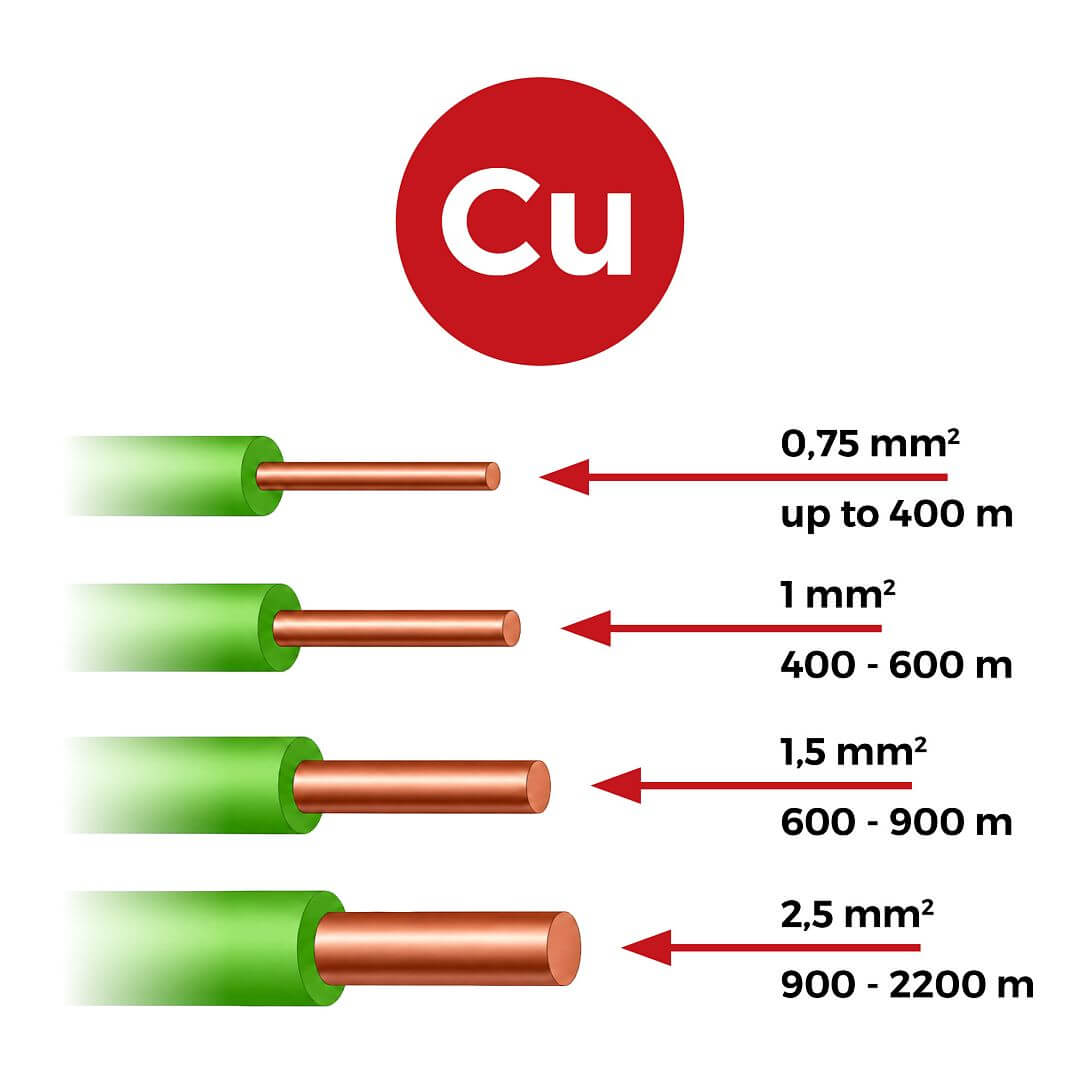

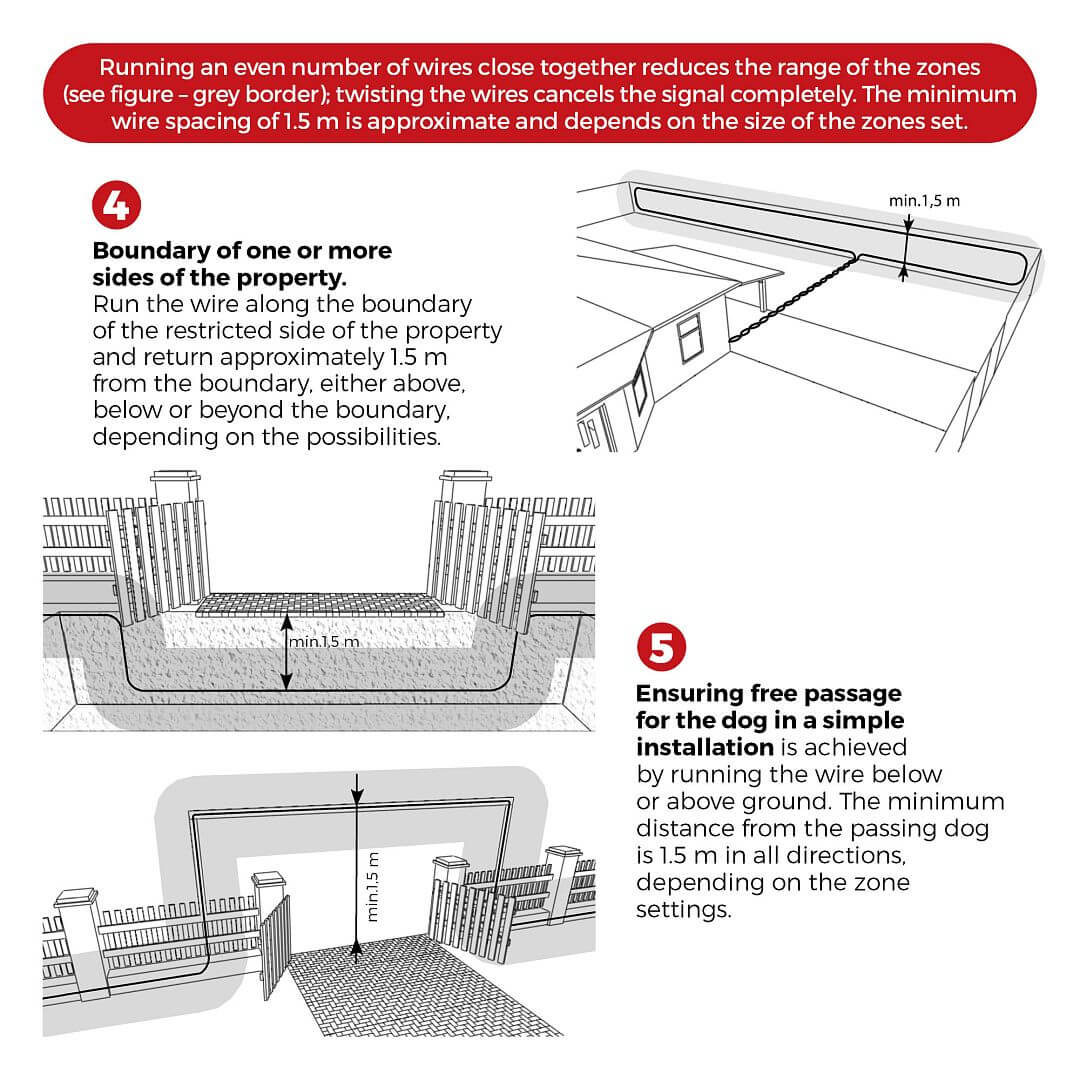

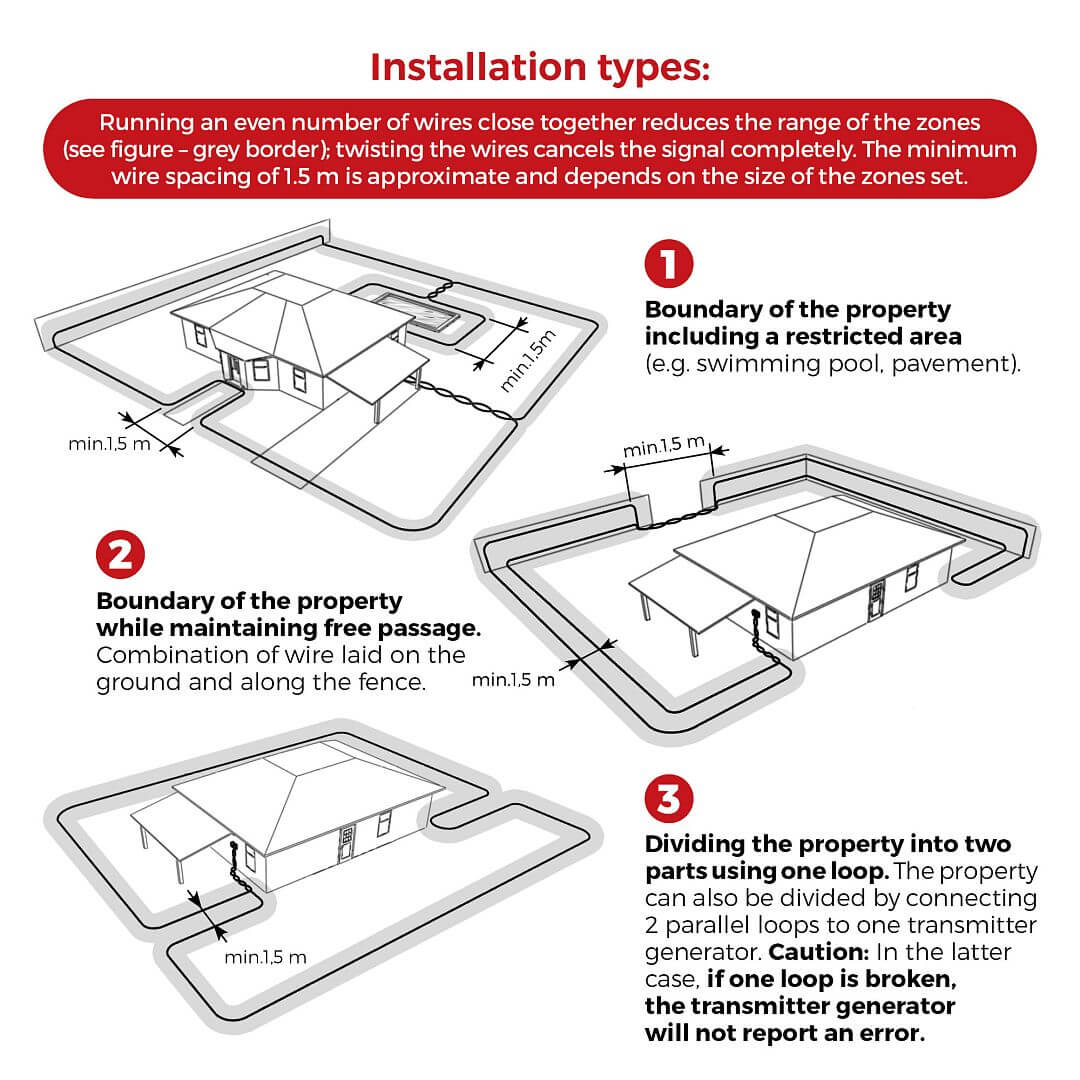

Antenna wire
- copper insulated wire with cross-section from 0,75 to 2,5 mm2
- installation up to 400 m. . . . . . . . . . . . . . . . . . . . . . . . . 0,75 mm2
- installation from 400 m to 600 m . . . . . . . . . . . . . . . . . . . . 1 mm2
- installation from 600 m to 900 m . . . . . . . . . . . . . . . . . . 1,5 mm2
- installation from 900 m to 2200 m. . . . . . . . . . . . . . . . . . 2,5 mm2
