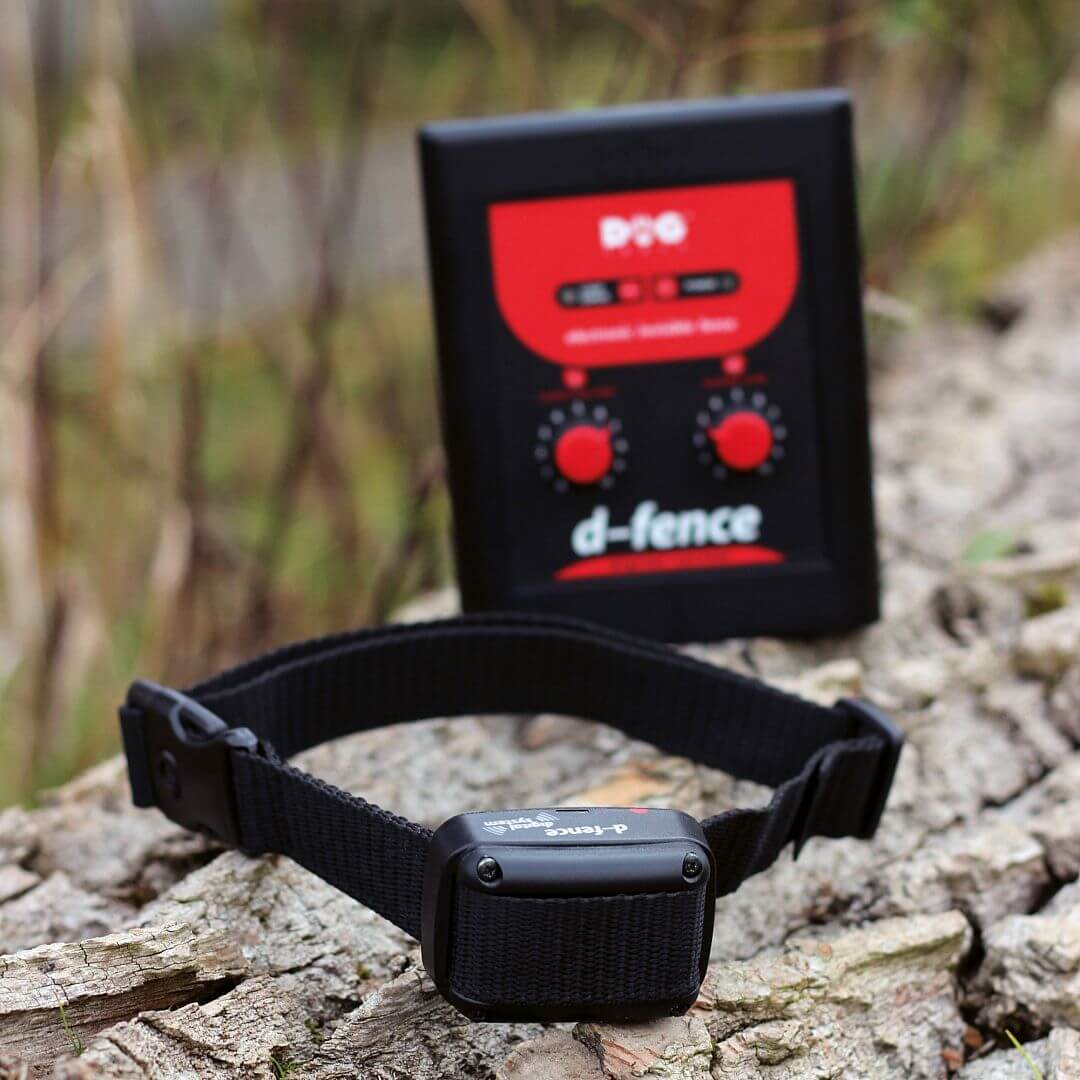

Electronic invisible fence d-fence (101/1001)

An effective way to teach your dog to respect a designated exercise area where he is not in danger.

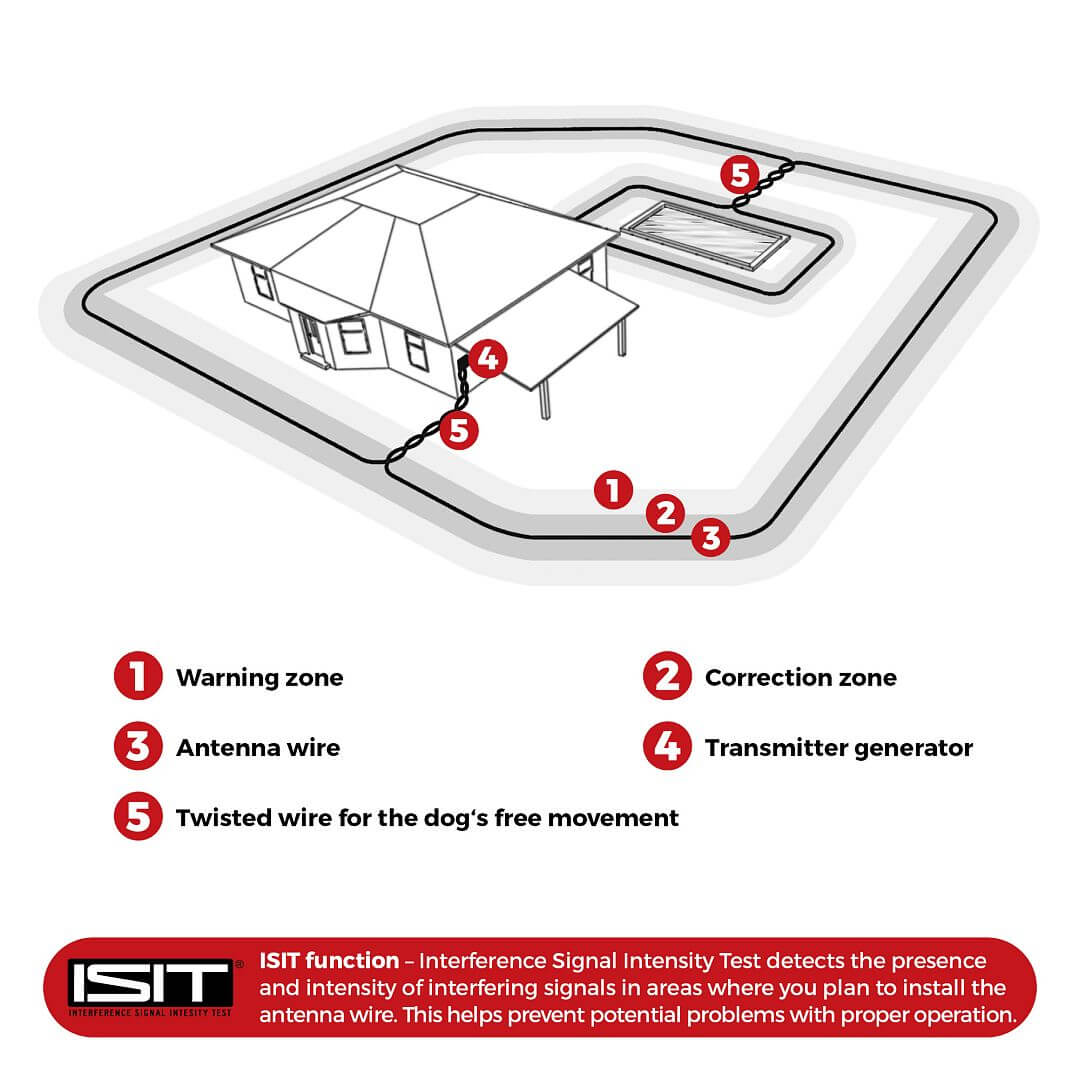

The electronic invisible fence d-fence consists of a transmitter generator, a receiver and an antenna, the latter being a simple insulated wire. The transmitting generator generates a signal to the antenna wire, which you use to demarcate the selected area with a warning and correction zone. The receiver attached to the dog's collar senses the signal propagating from the installed antenna wire, if the dog crosses the boundary of the first (warning) zone, the receiver starts to emit an intermittent sound signal. If the dog does not respond to the audible warning and crosses the boundary of the second (correction) band, the receiver shall simultaneously emit an audible signal and a correction pulse. The intensity of the correction pulse as well as the width of the correction and warning zones can be easily adjusted. There is no limit to the number of dogs with the receiver attached to the collar.

The collar is compact, 100% waterproof and due to its light weight and ergonomic design it can be used for all dog breeds.

Thanks to the electronic invisible fence, your dog will quickly learn to respect the boundaries of the defined space and will only move freely in areas where he is not in danger.

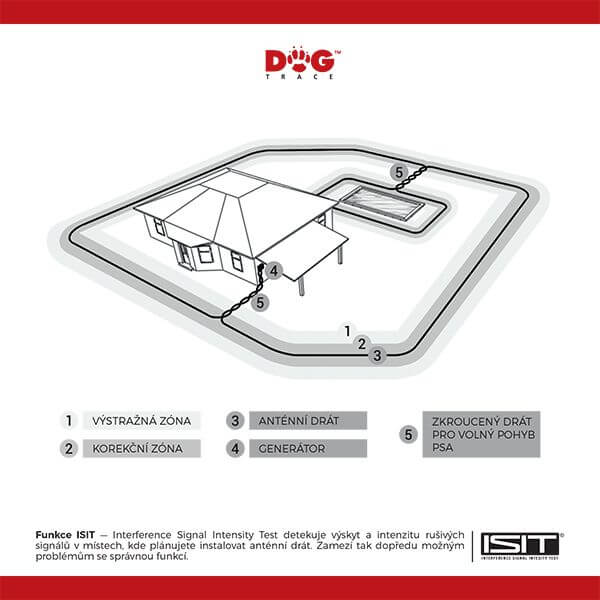

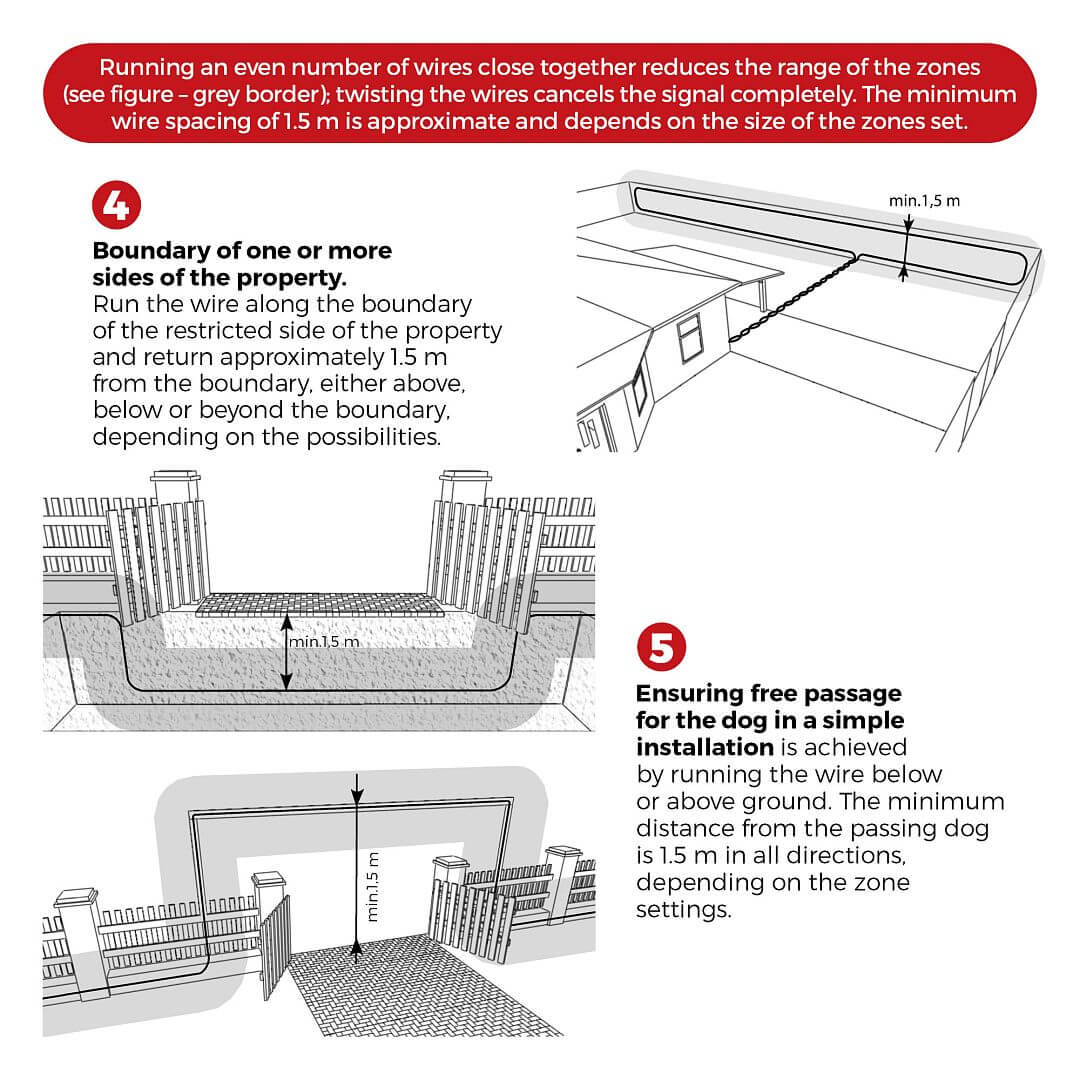

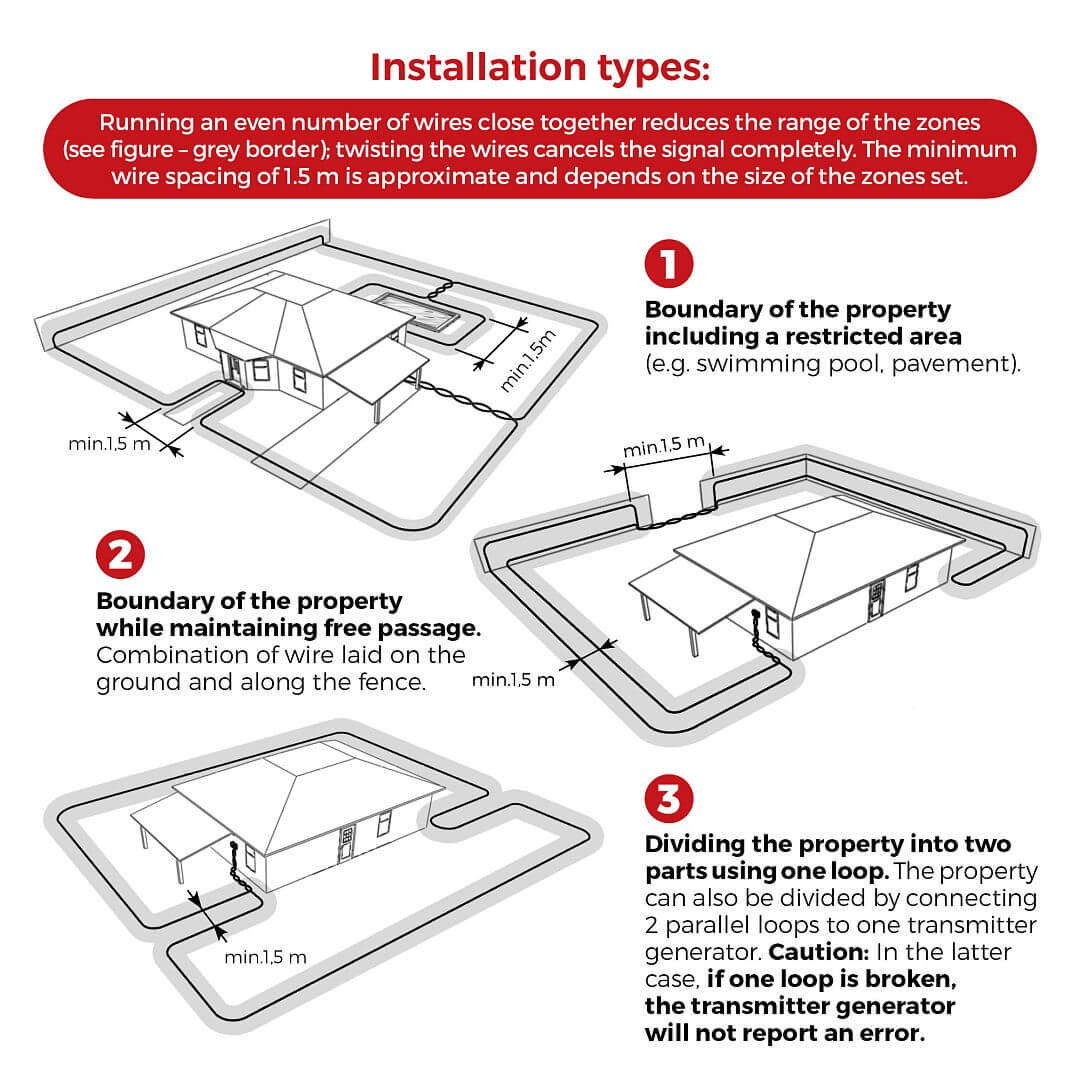

The electronic systems of the generator and collar use modern technology based on single-chip microprocessors. The device is suitable for any type of terrain, it can be installed very easily using common tools. For the invisible fence system to work, the wire must be connected to the transmitter and form an unbroken loop of wire (avoid damaging the wire). From the transmitter, unwind the wire around your property. The wire can be placed on the ground, shallowly buried (max. 10 cm deep) or attached to an existing fence or wall (in this case, up to a maximum height of 30 cm above the ground). The standard package contains 100 m of aerial wire. If you need more than 100 m, you can buy an additional pack from us and then connect the wire using notch connectors (notch connectors are included in the basic pack). If you want the dog to be able to walk freely through a certain spot on your property that you need to run the wire through, wind the outgoing wire around the incoming wire, twisting the wires around causes interference with the emitted waves and the dog can move freely through that spot. The voltage in the antenna does not exceed 12 V, so there is no danger even if the wire is broken. For better orientation it is possible to mark the defined area with targets.

Advantages of the invisible d-fence:

• very easy and quick installation (the fence can be operational within 1 hour)
• inexpensive and very variable option of fencing the plot - if necessary, you can change the fence in a moment according to the current requirements (bordering the pool, flower beds, rock garden, front door to the house, etc.)
• the fence is "invisible", i.e. it does not interfere with your view of the surroundings, nor does it aesthetically disturb your garden, it can complement the existing fence, which the dog nevertheless overcomes (jumps over, digs under, chews through...)
• you can keep as many dogs as you like in the space provided

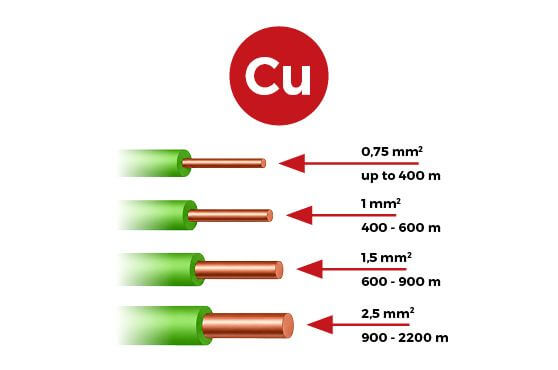

Installation length and recommended wire cross-section:

• up to 400 m - 0.75 mm²

• 400 m - 600 m - 1.0 mm²

• 600 m - 900 m - 1.5 mm²

• 900 m - 1200 m - 2.5 mm²

If you don't know what to do, maybe our blog articles will help.

We only guarantee the correct installation function if you purchase the appropriate wire cross-section (depending on the size of the plot) from us or our dealers.

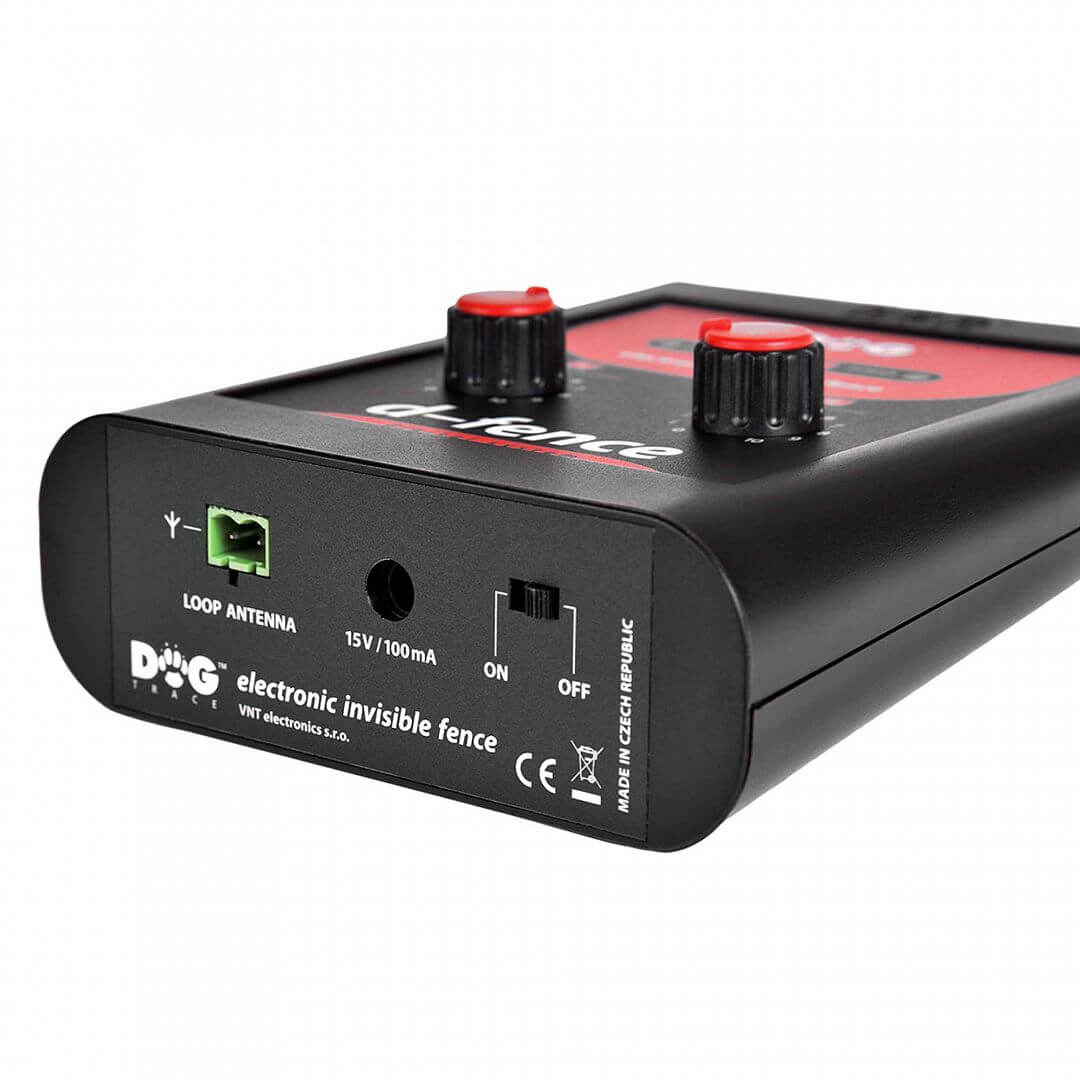

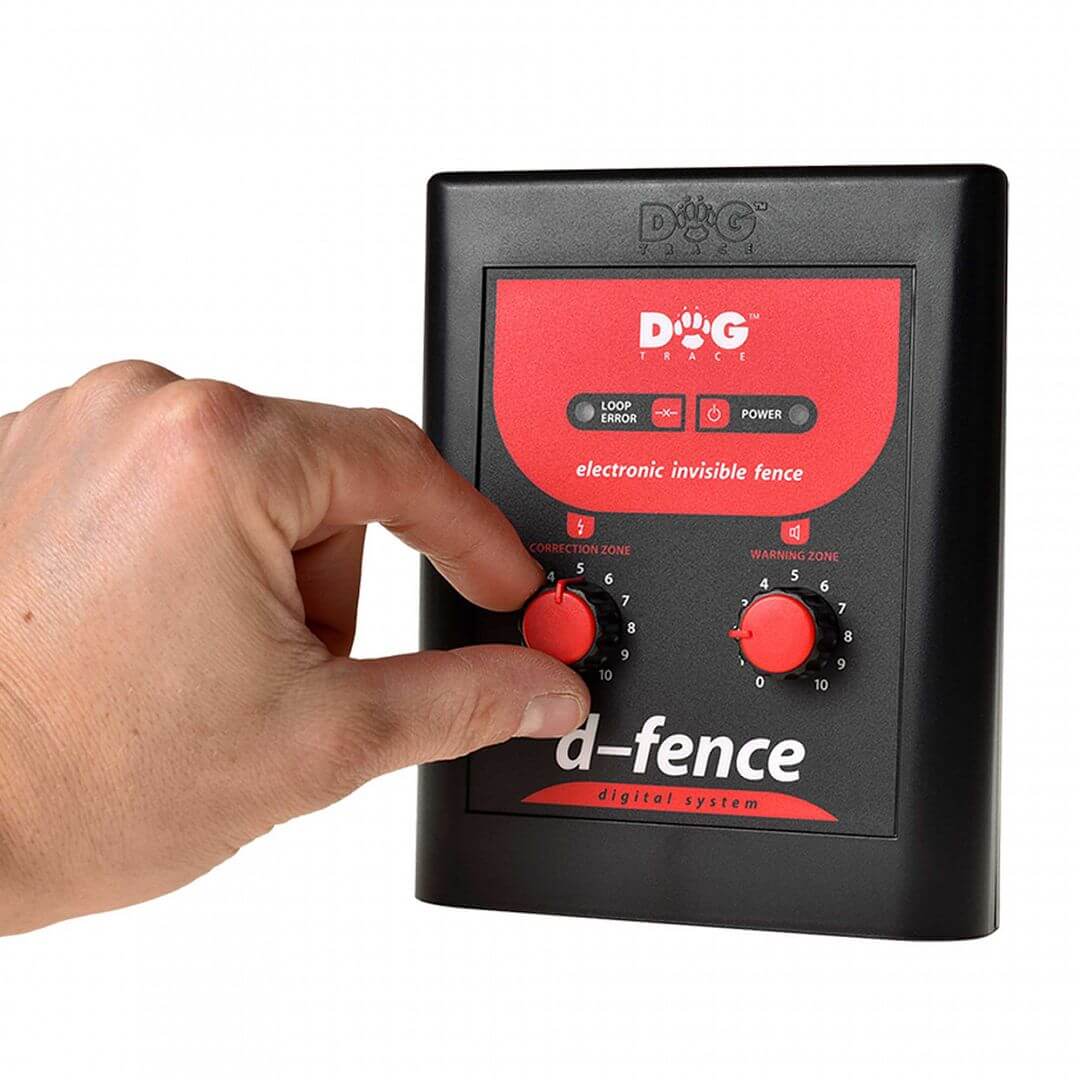

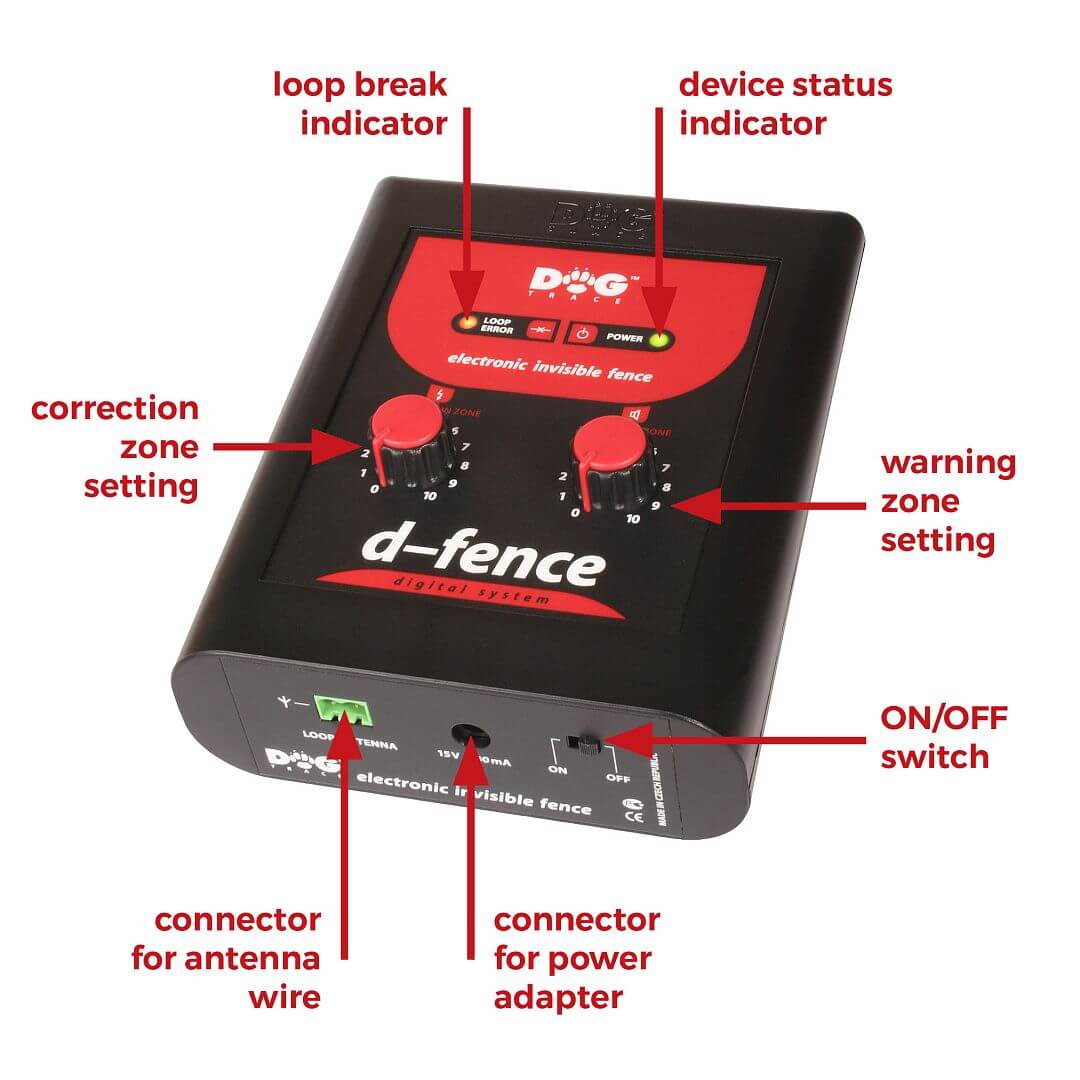

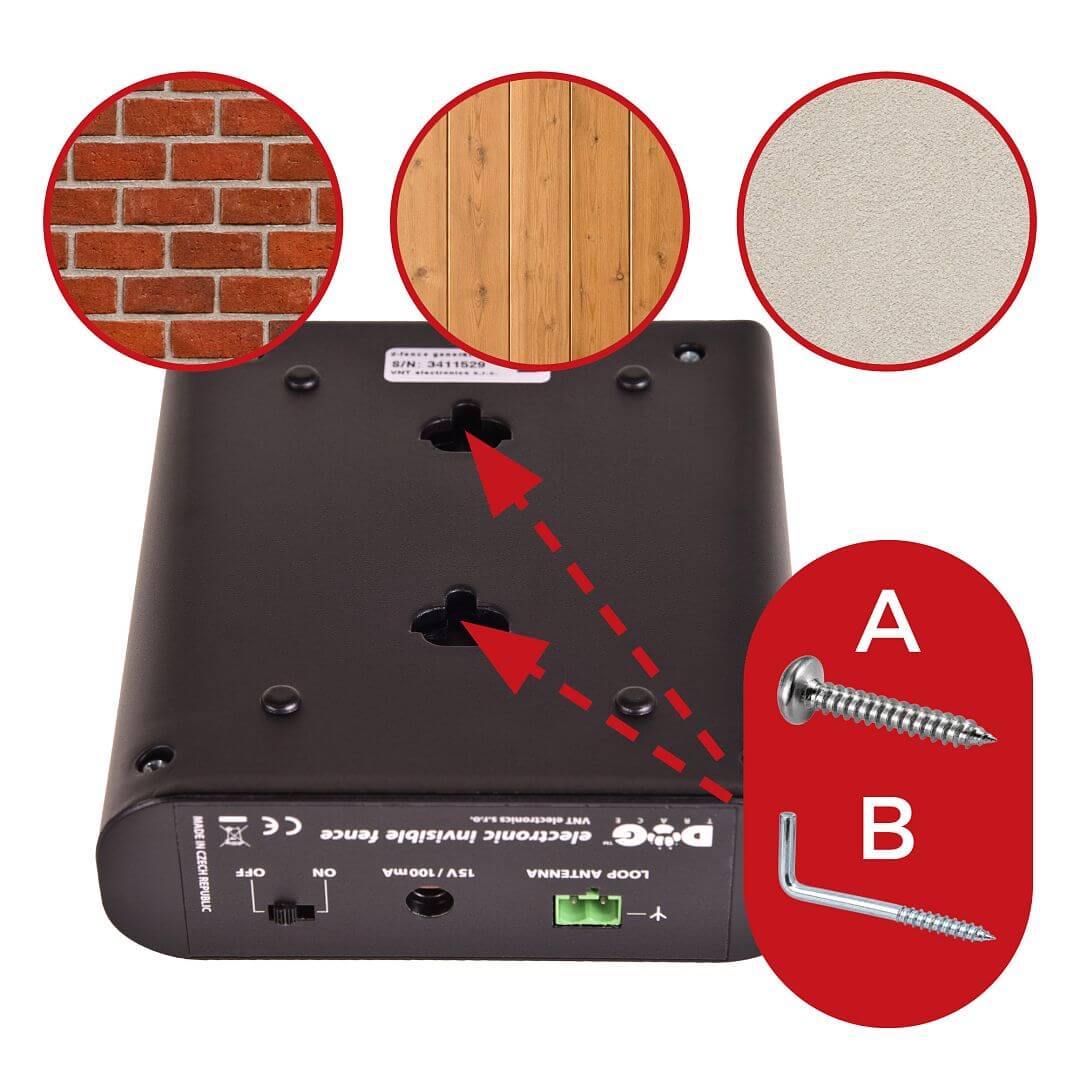

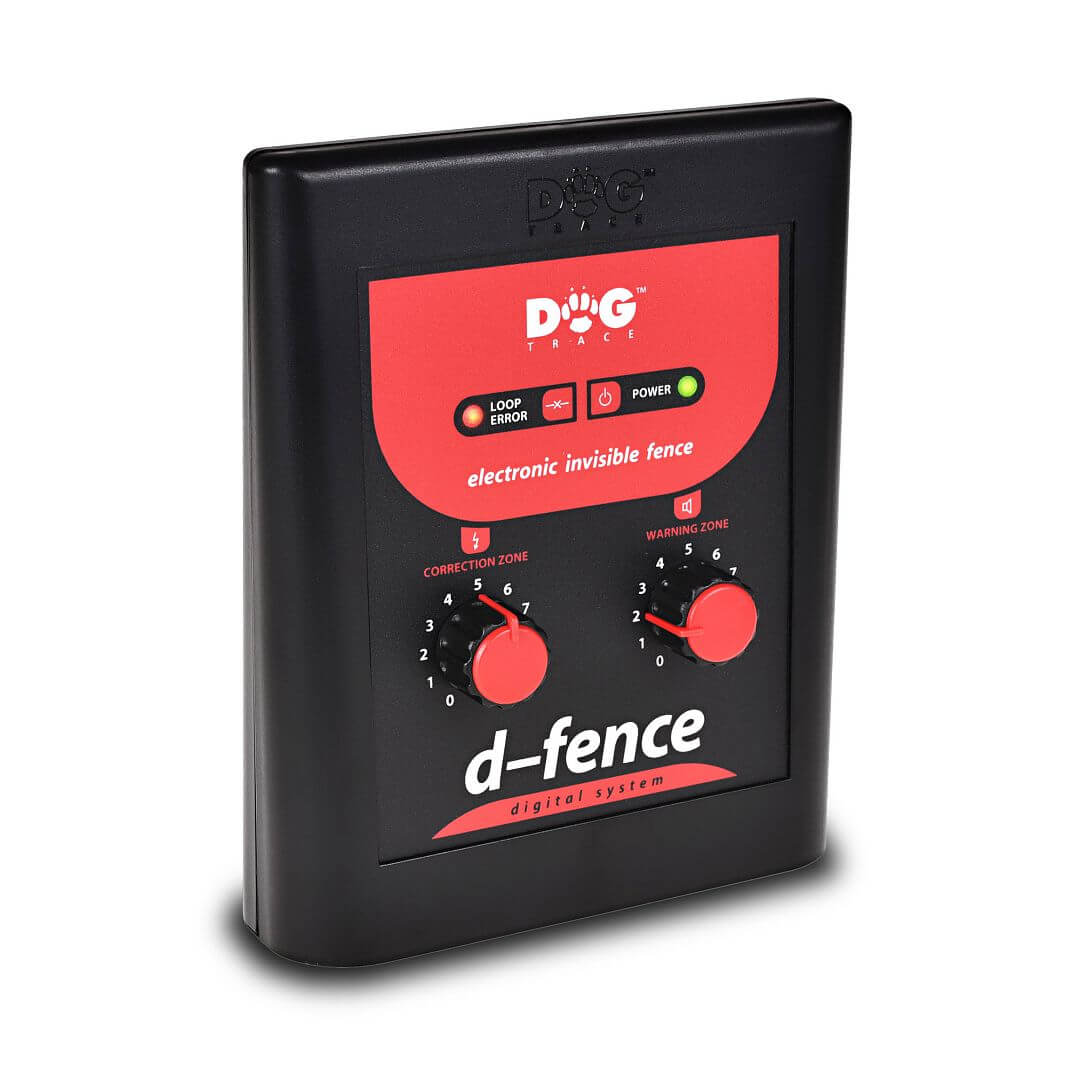

Transmitting generator

• Band 1 (warning): continuously adjustable from 0.4 to 5 metres
• Band 2 (correction): continuously adjustable from 0.3 to 1.5 metres

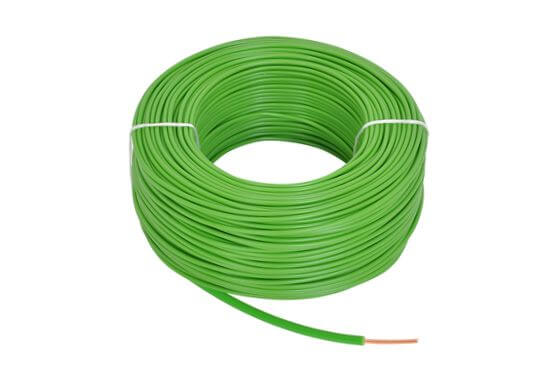

• Wire: low impedance insulated copper 0.75 to 2.5 mm², max. length 1200 metres
• power supply: adapter 230 V / 50 Hz, 15 V / 100 mA
• area enclosed: 9 ha

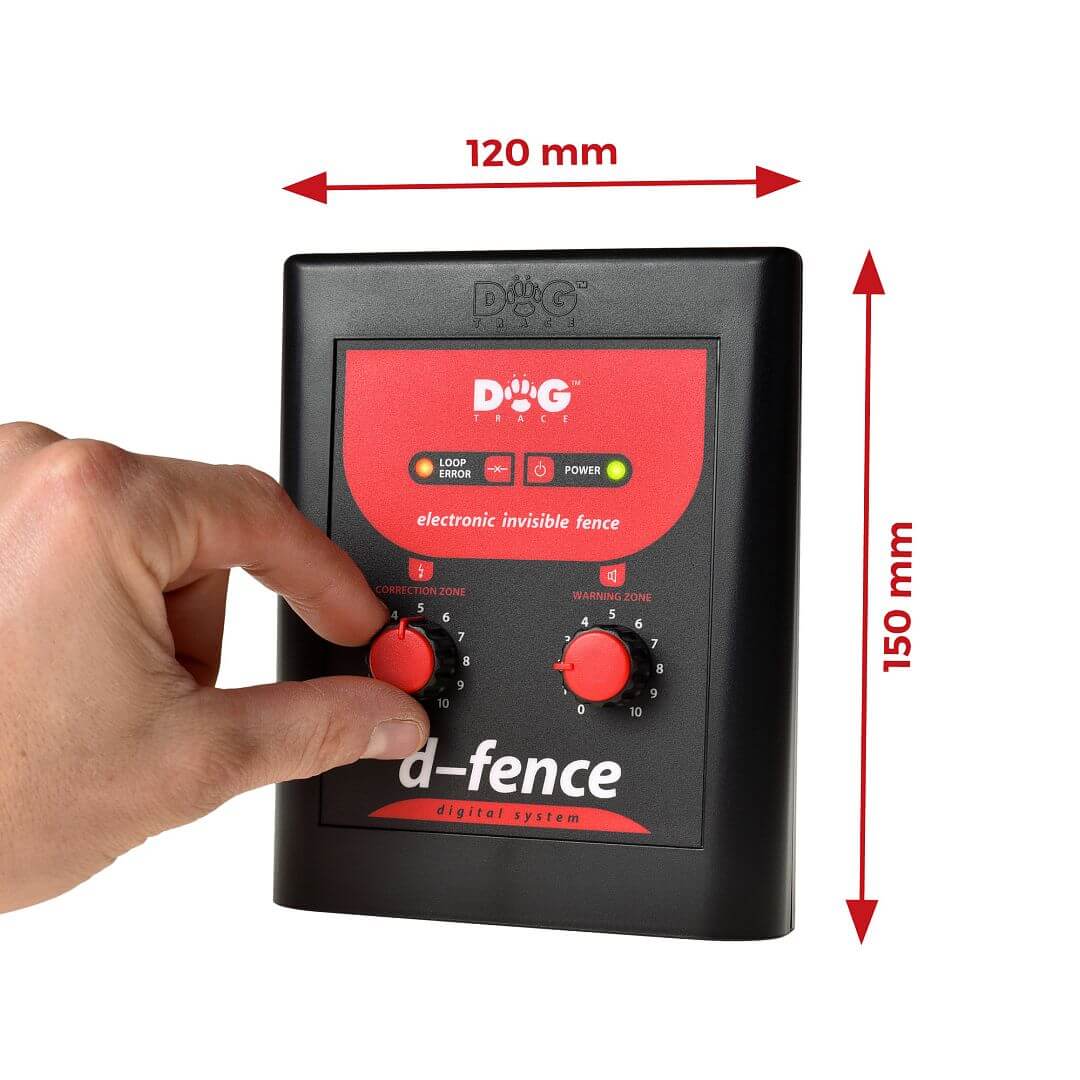

• Dimensions 152 × 119 × 42 (L × W × H)

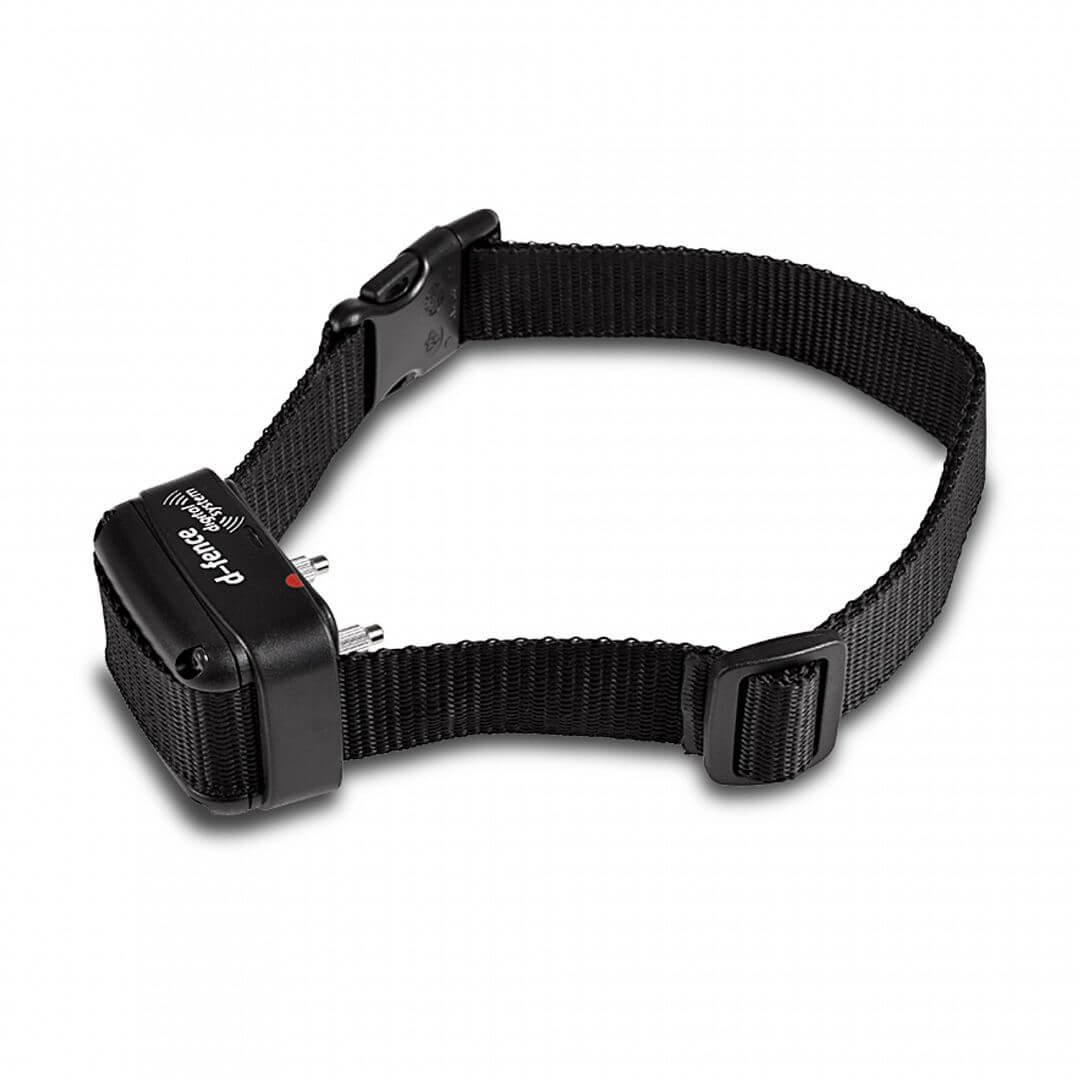

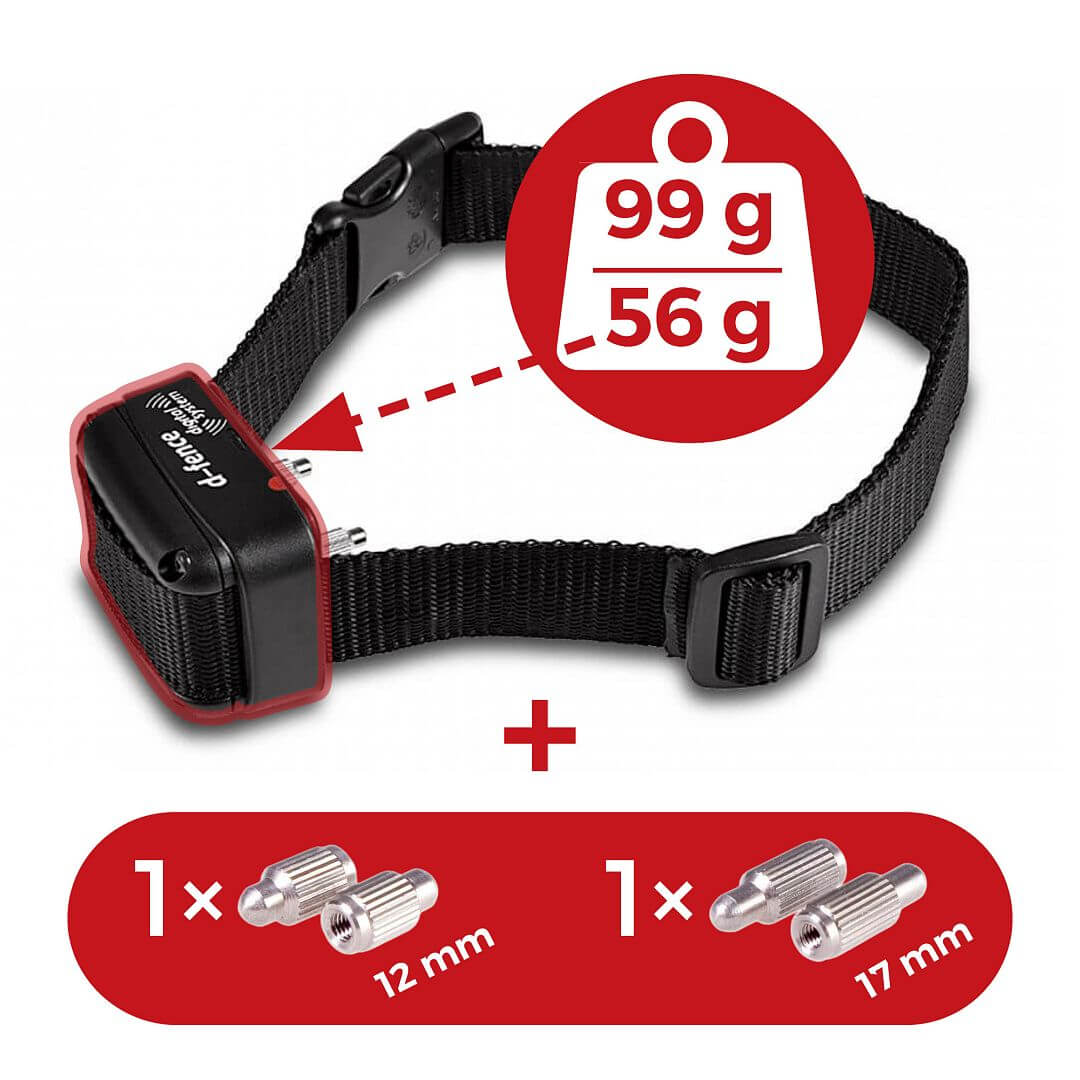

Collar

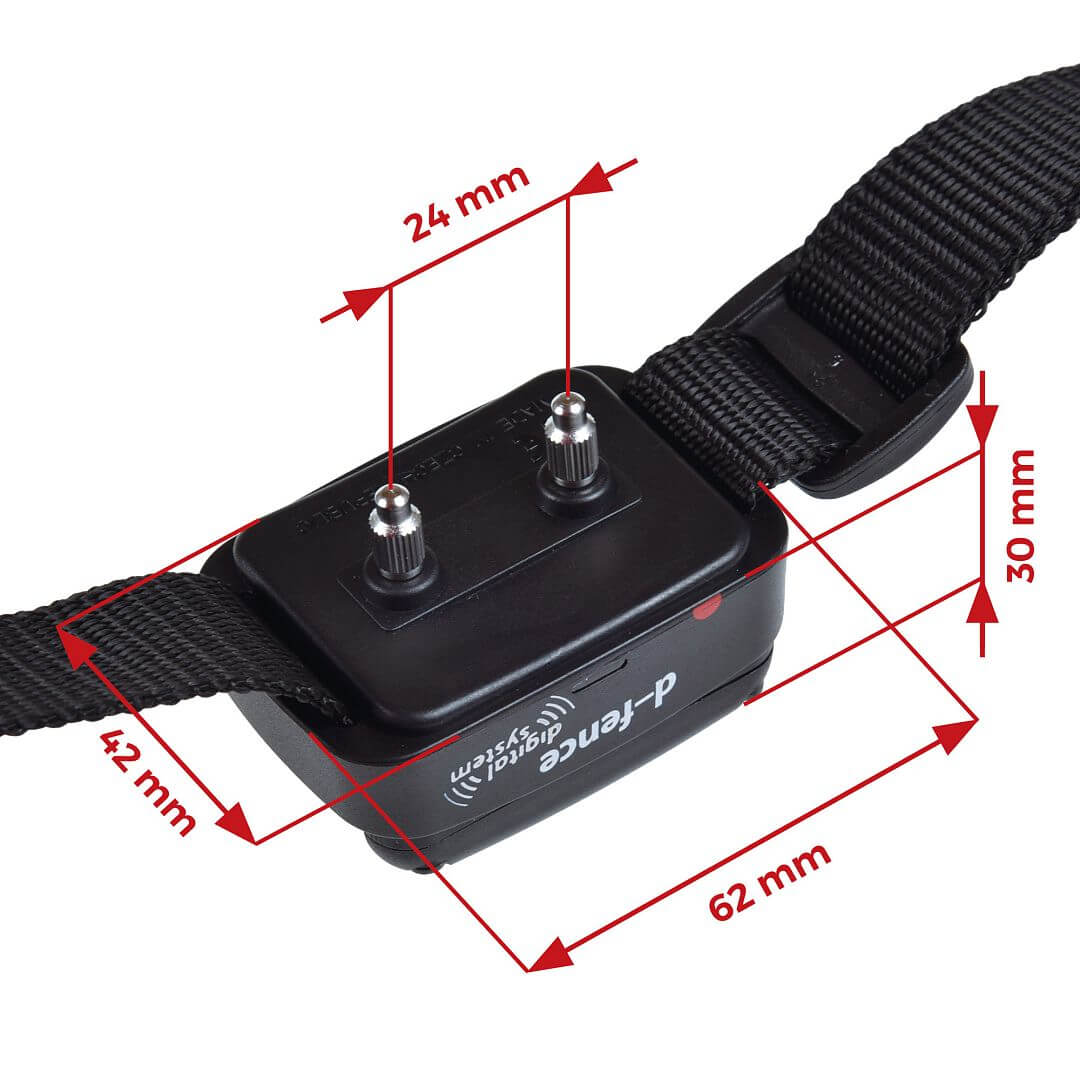

• Dimensions: 30 × 42 × 64 mm
• weight: 60 g (without battery and electrodes)
• Power supply: CR2 3V lithium battery
• battery life: 6 months in standby mode
• adjustable neck circumference: 20 to 70 cm
• waterproof, reliable in any mode
• Correction pulse intensity can be adjusted on the collar in eight levels
• The ISIT function allows you to detect the presence and intensity of interfering signals where you plan to install the antenna wire, thus avoiding possible problems with the correct functioning of the d-fence device in advance

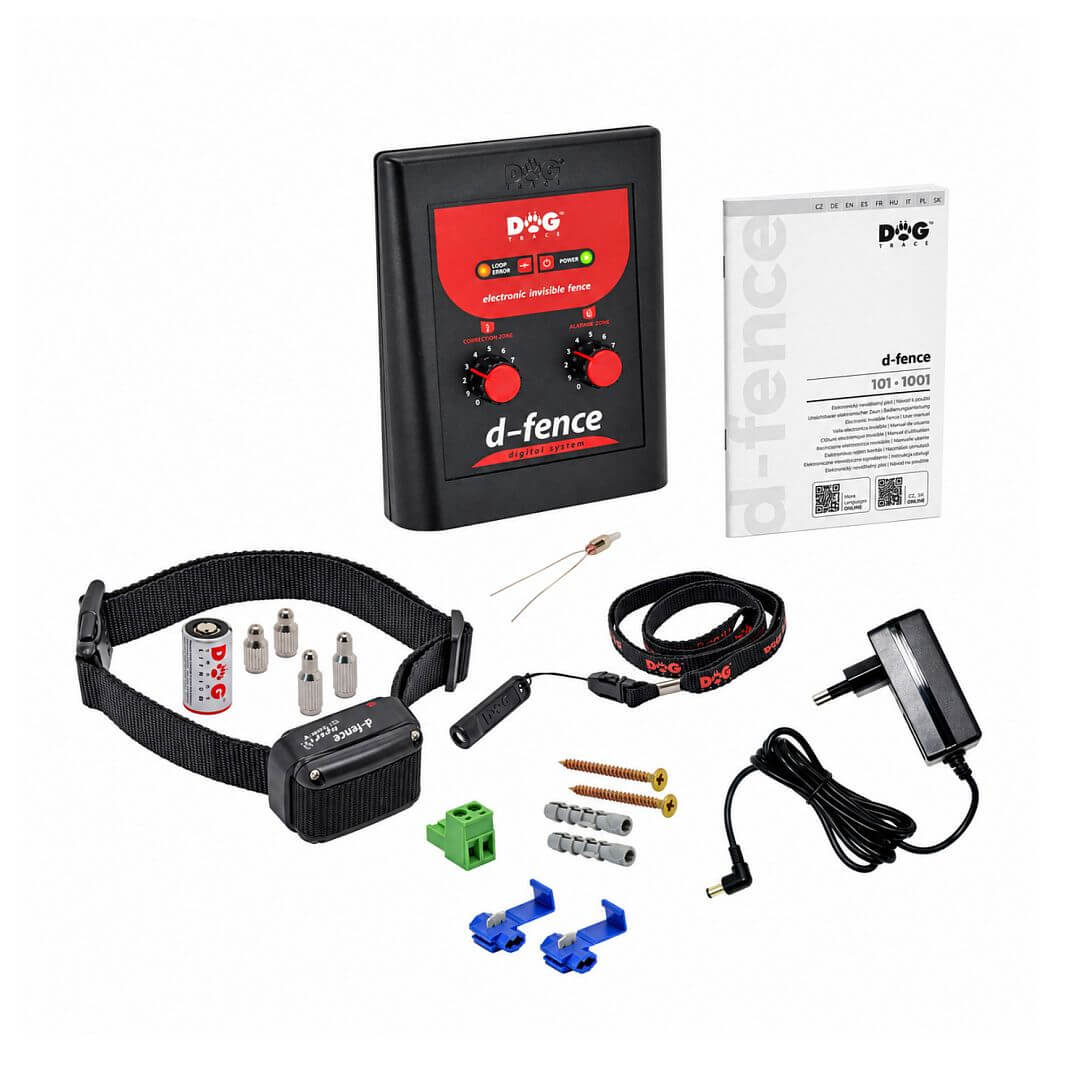

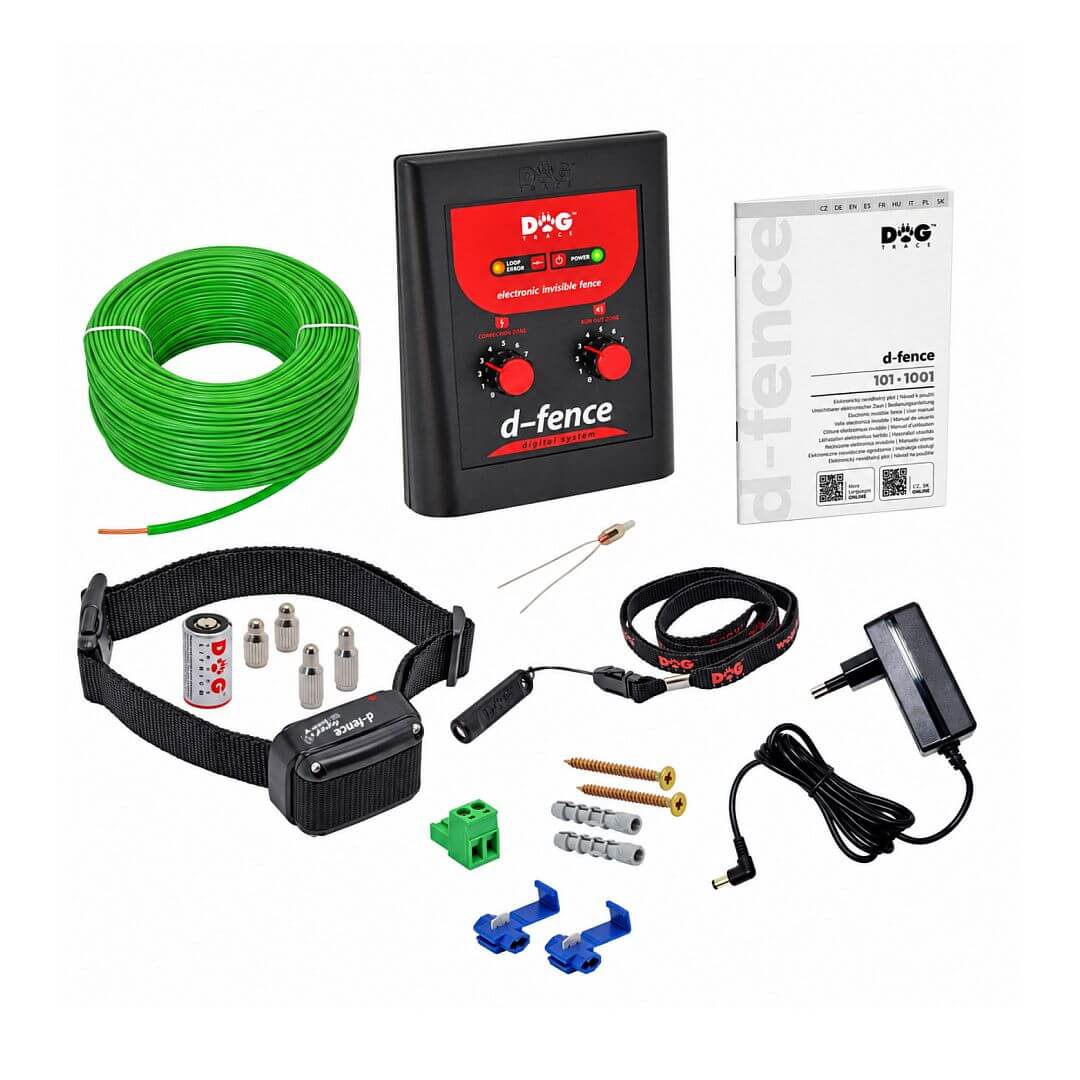

Package contents

• Generator
• power adapter

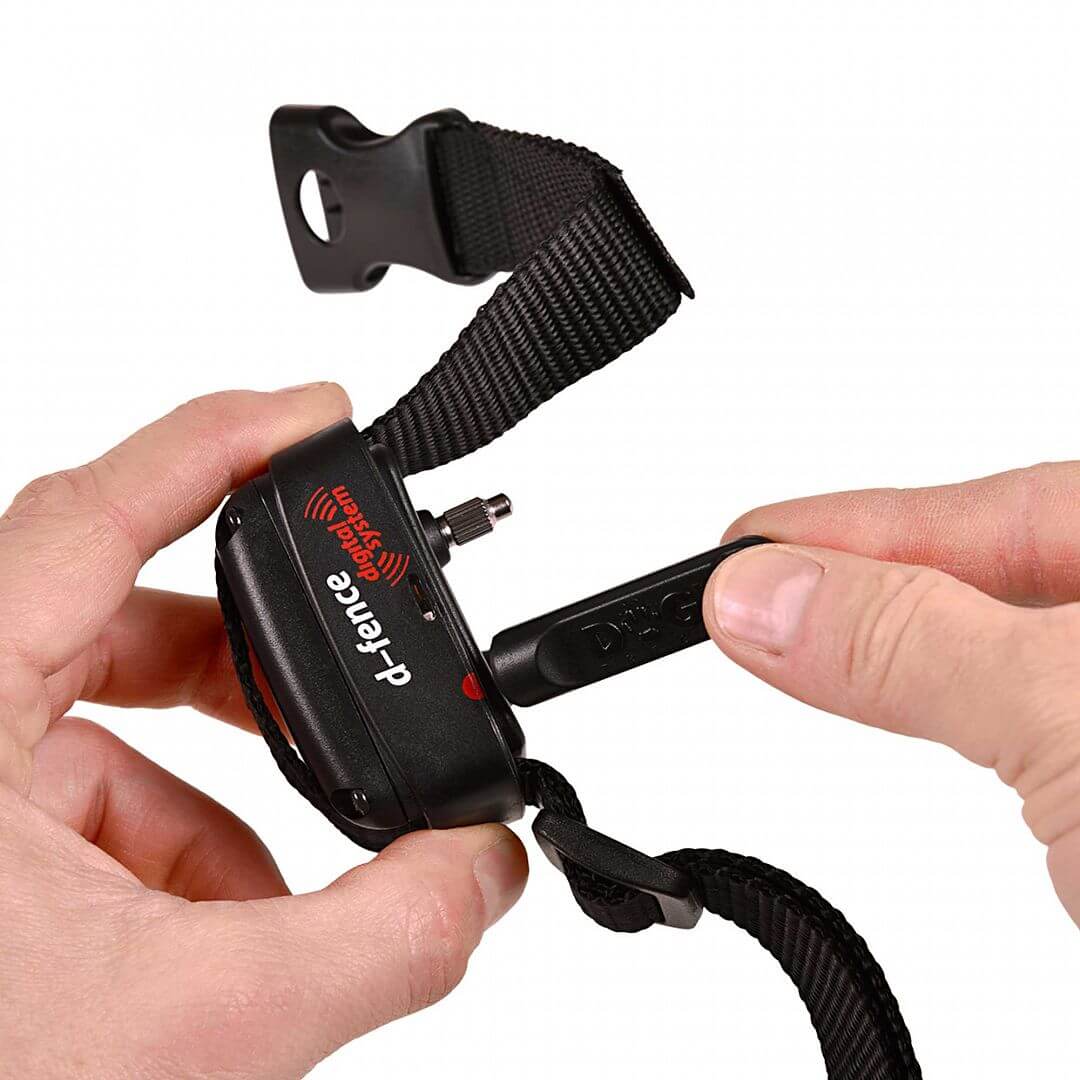

• magnet with lanyard
• notch connectors 2 pcs
• receiver with woven lanyard (75 cm)
• 12 and 17 mm electrodes
• CR2 3V lithium battery
• test glow plug
