Tracking system DOG GPS X30 Short

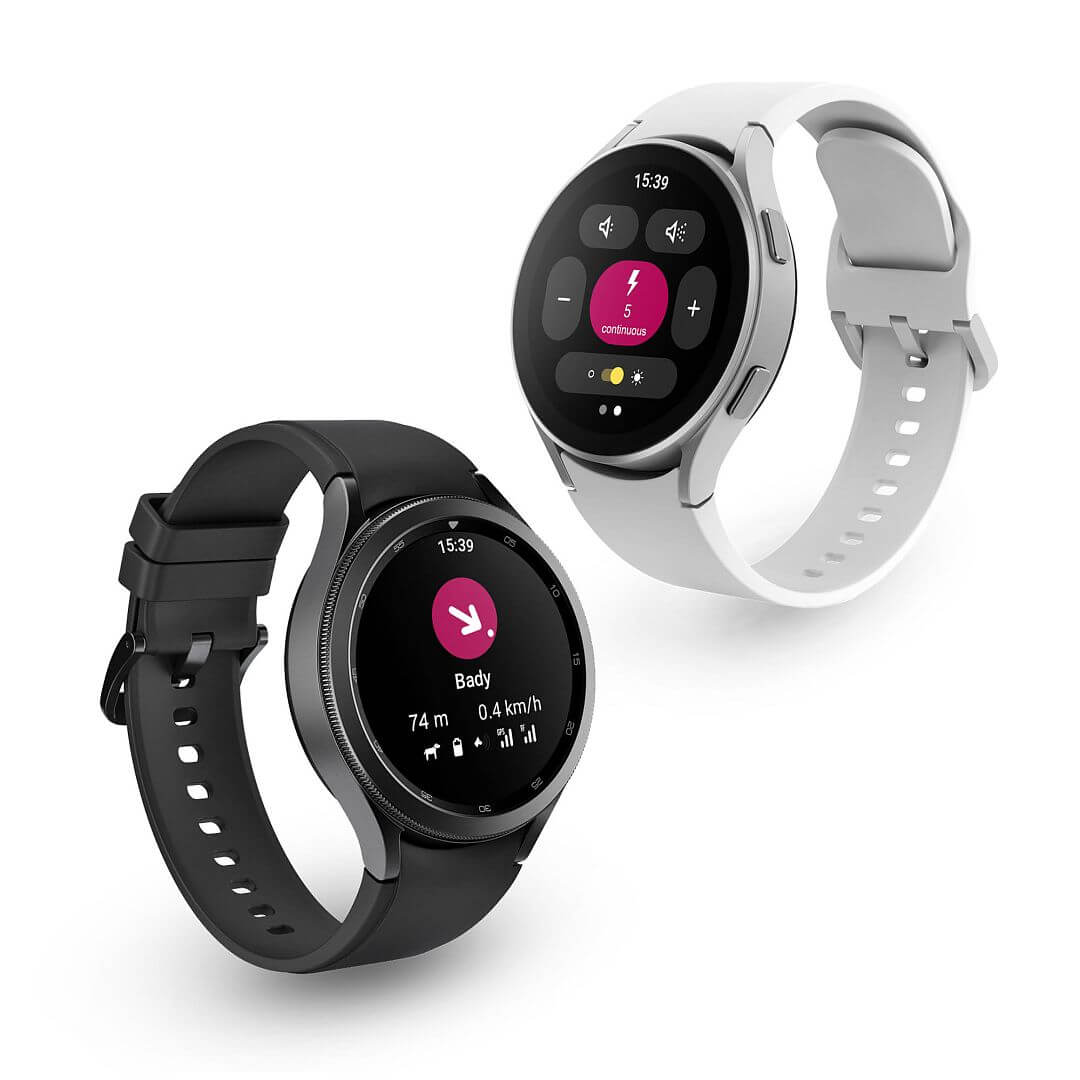

Manage all functions via phone

Manage all functions via phone

Product features Tracking system DOG GPS X30 Short

range 20 kilometers for 13 devices beeper run/point circle fence geofence tracing bark indication tone wayipoint waterproof compass online/offline maps measurement rechargeable battery nabíjecí baterie

Product Details Tracking system DOG GPS X30 Short

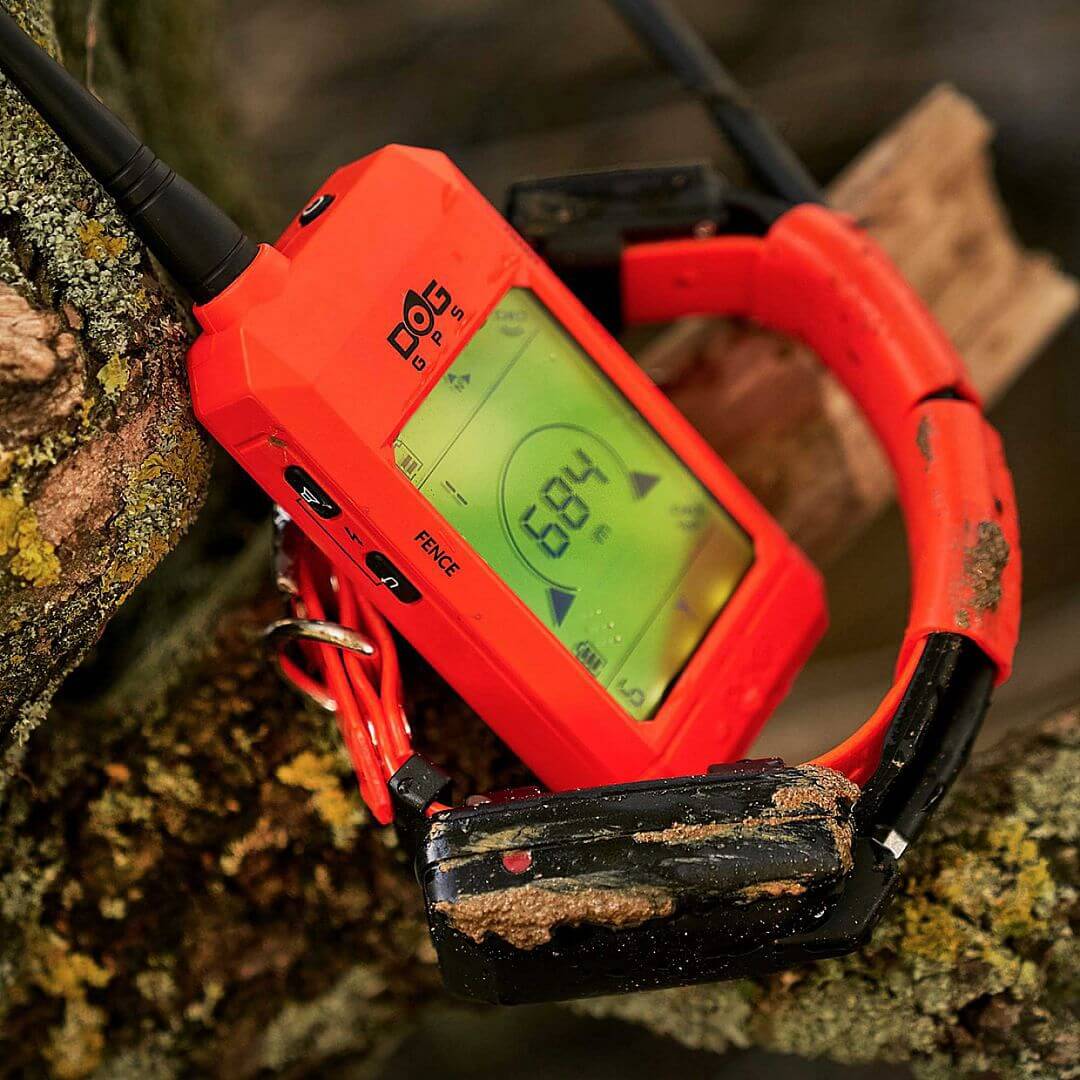

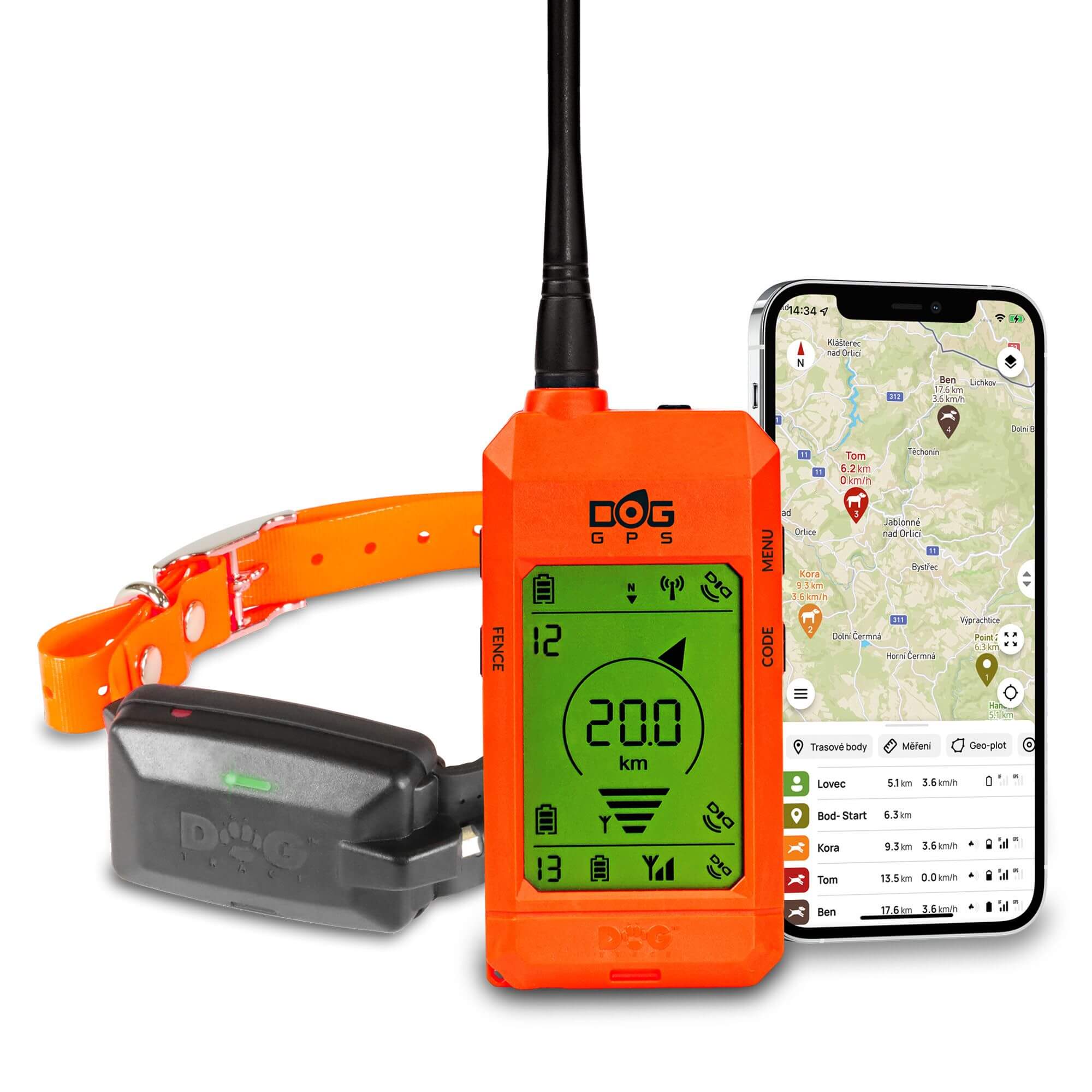

A device used to locate your dogs up to 20 km away. It consists of a transmitter, which is placed on the dog's collar and a receiver (handheld device) in neon orange, on which the handler monitors the distance and direction to the dogs location.

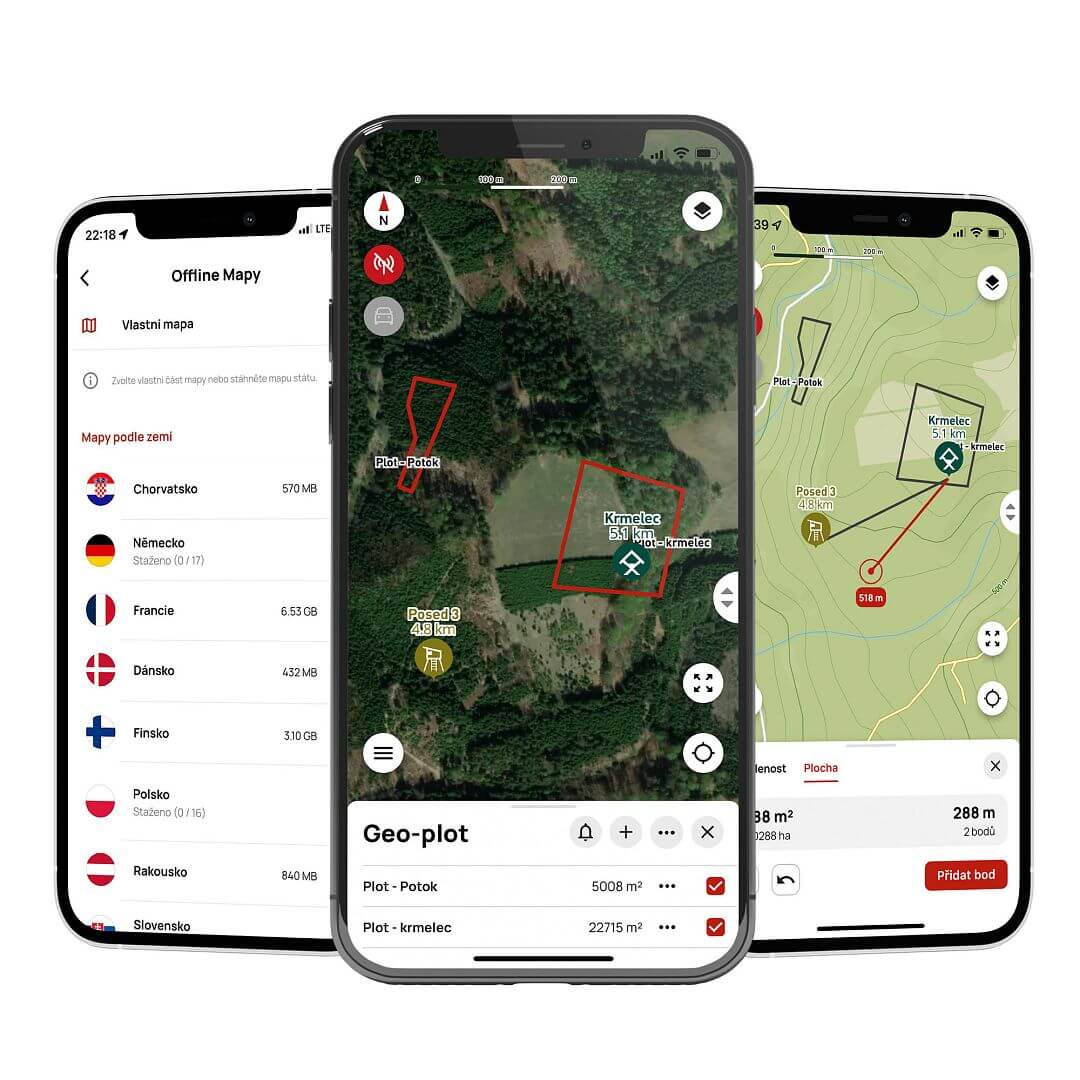

The receiver can be connected to a mobile phone or tablet with Android or iOS OS. The app allows you to view all paired DOG GPS devices and their detailed information on a map. Online and offline maps.

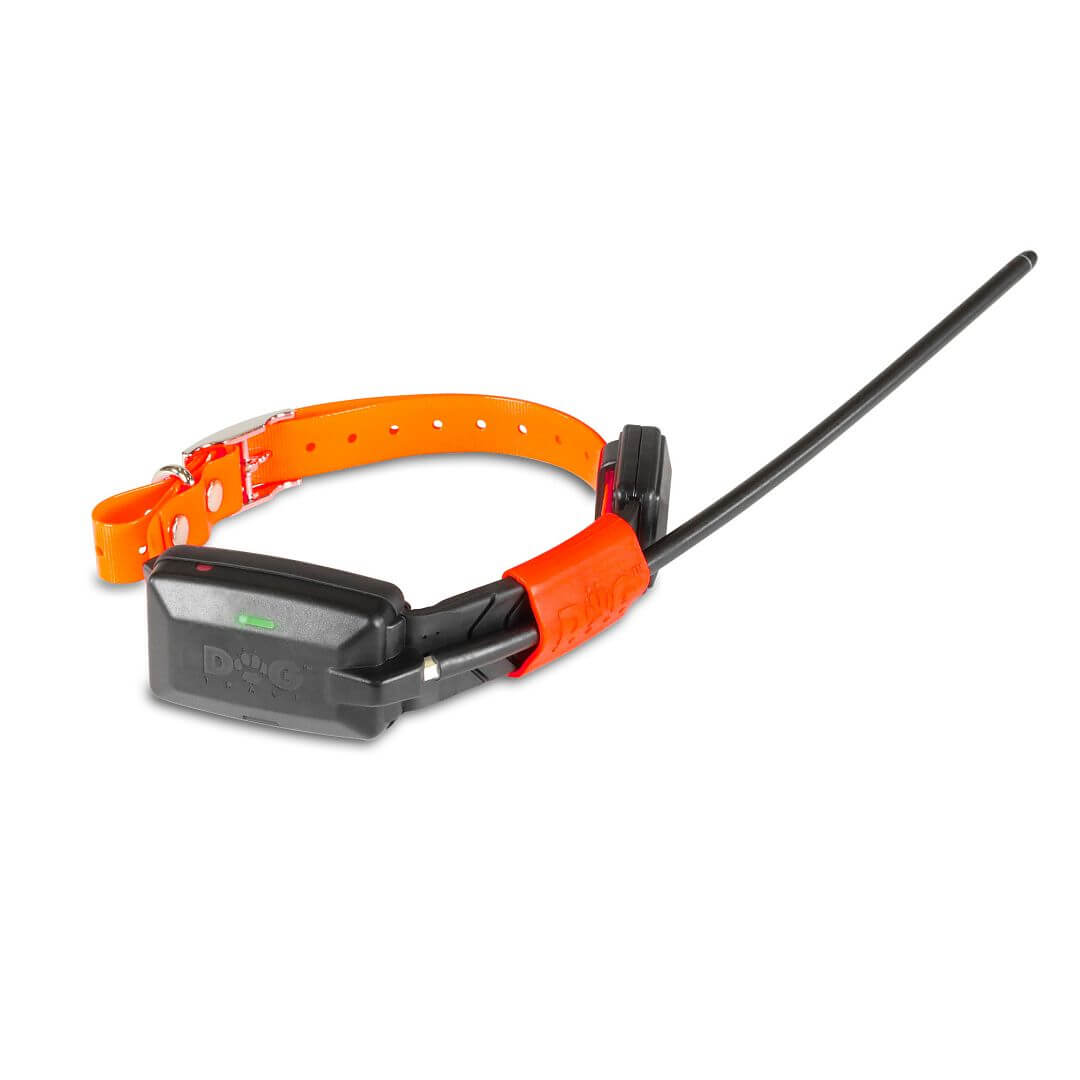

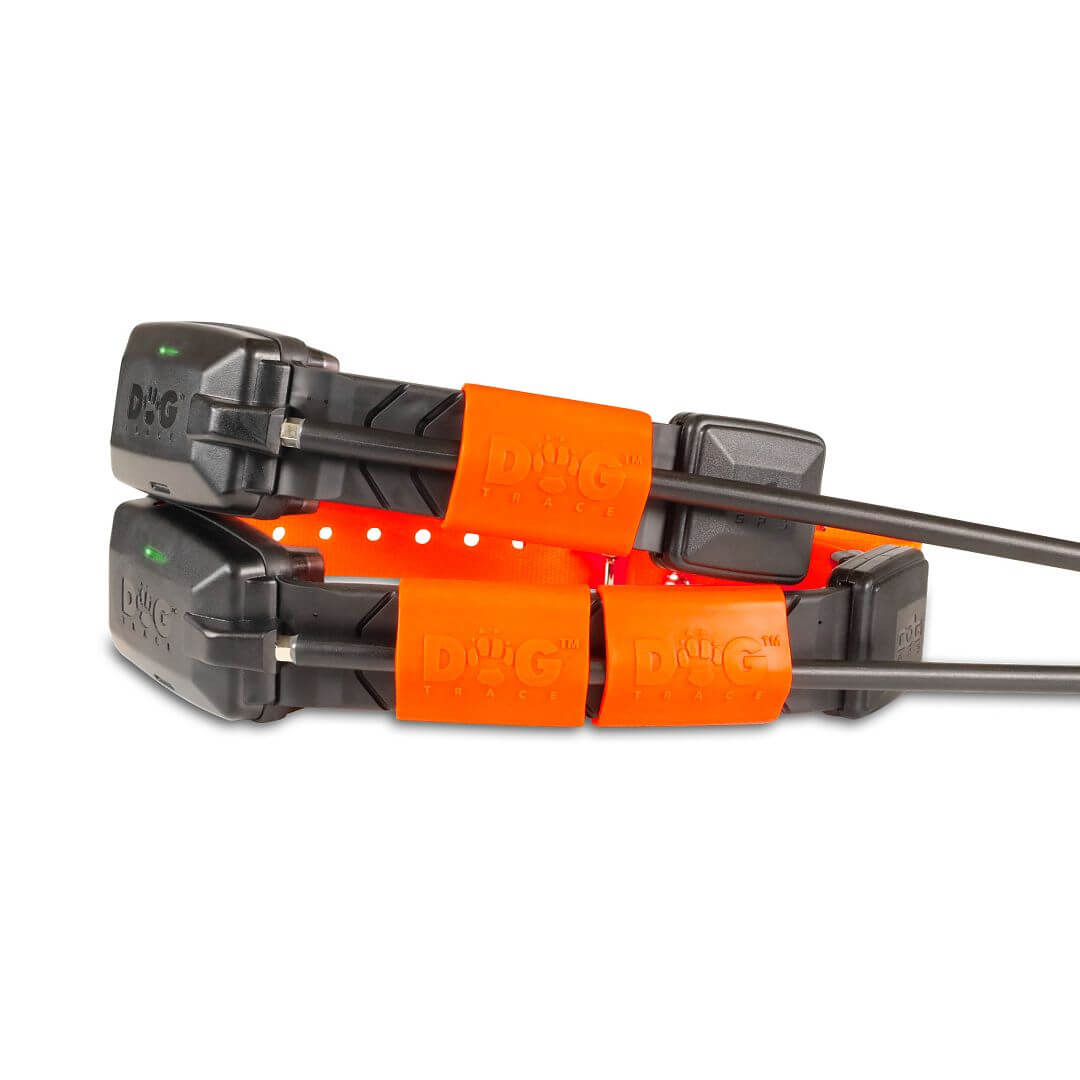

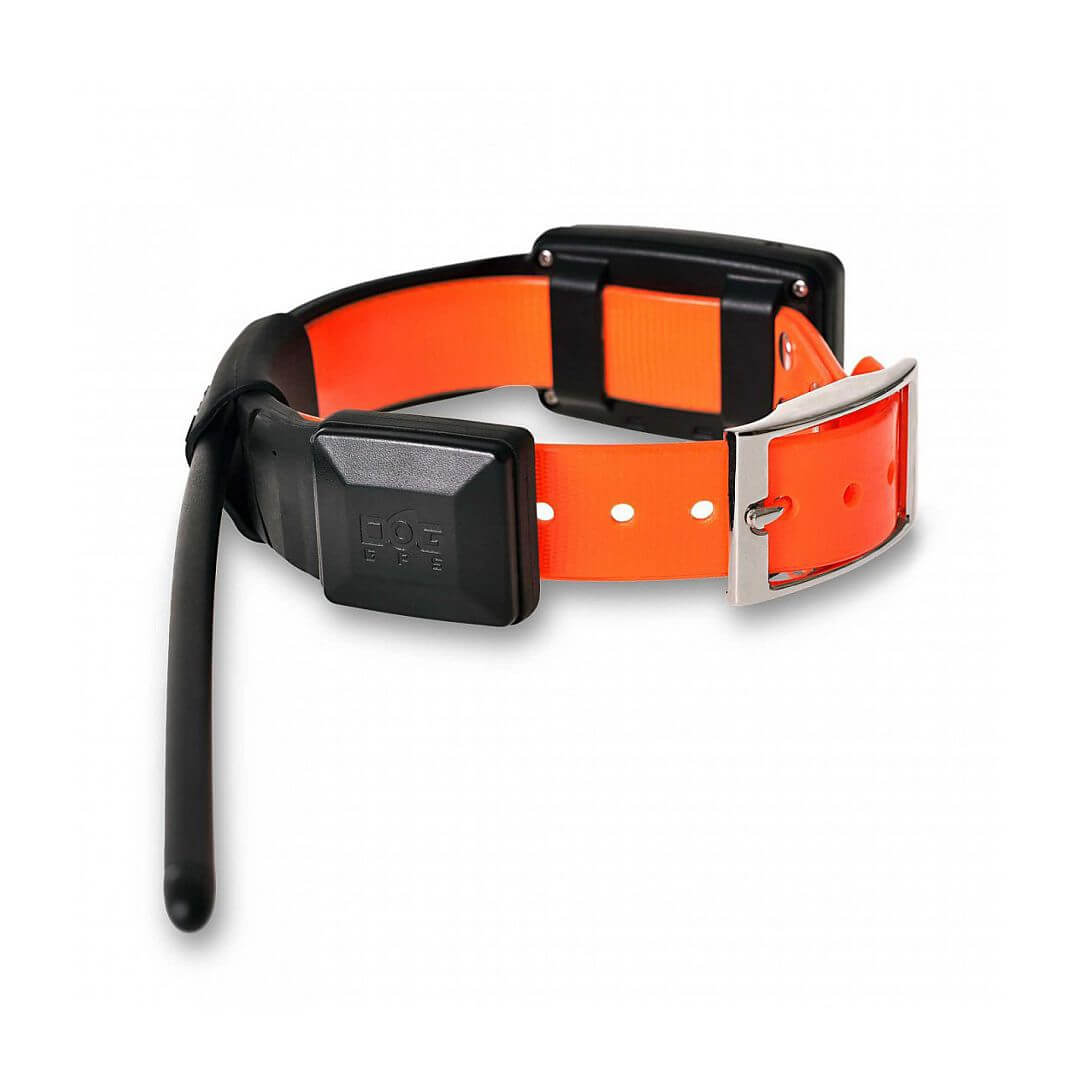

Short version of the DOG GPS X30 collar

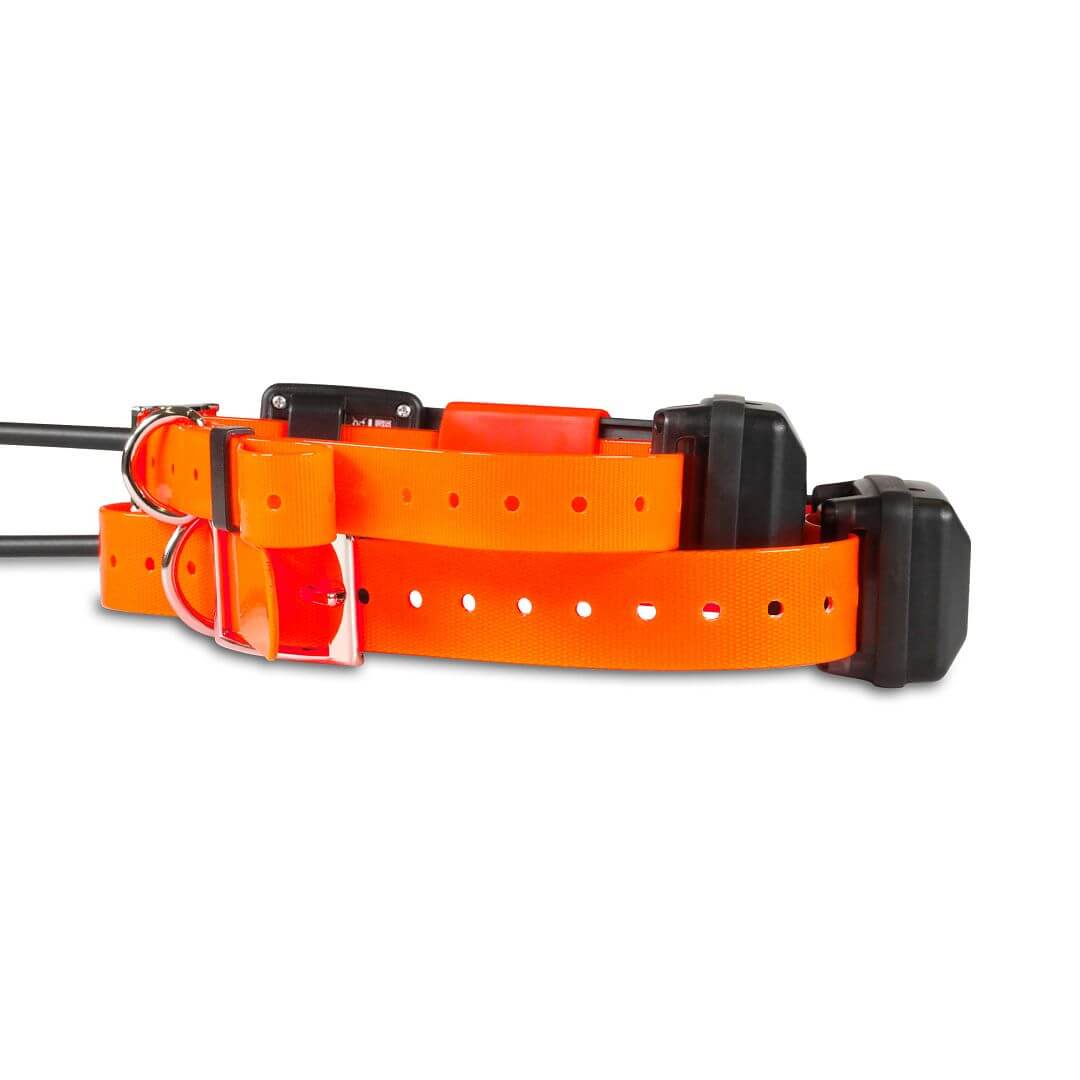

A shorter version of the DOG GPS X30 collar with the rubber part of the transmitter shortened by 5 cm.

  • smallest adjustable circumference is 25 cm

Features of the DOG GPS X30:

  • Range between transmitter and receiver is up to 20 km in line-of-sight (depending on terrain, vegetation and other factors)
  • Track up to 13 dogs, handlers or waypoints
  • State-of-the-art technology with high GPS sensitivity in both the receiver and transmitter
  • Easy-to-read receiver display - in direct sunlight and in the dark
  • 100% waterproof receiver and transmitter
  • Long battery life (more than 40 hours) - both receiver and transmitter are rechargeable
  • 2 acoustic signal modes - silent / loud
  • 15 levels of stimulation pulse (only on DOG GPS X30T)
  • Light mode for dog recognition in the dark (only with DOG GPS X30T)
  • Channel switching for communication between transmitter and receiver
  • Compass function
  • FENCE function - acoustic boundary to delineate the dog's space
  • BEEPER function - detection of dog movement/standing
  • Waypoint function - ability to store up to 13 coordinates on the receiver - ability to navigate to these points
  • CAR mode function - mode for using the receiver (handheld device) in the vehicle
  • Quick start of the receiver (handheld device)
  • Smallest and lightest collar (transmitter) among competitive devices
  • Simple operation
  • Receiver is compatible with X20/X20+ transmitters (collars) (only some functions are limited)

Manage all functions via phone
Manage all functions via phone

Manage all functions via phone

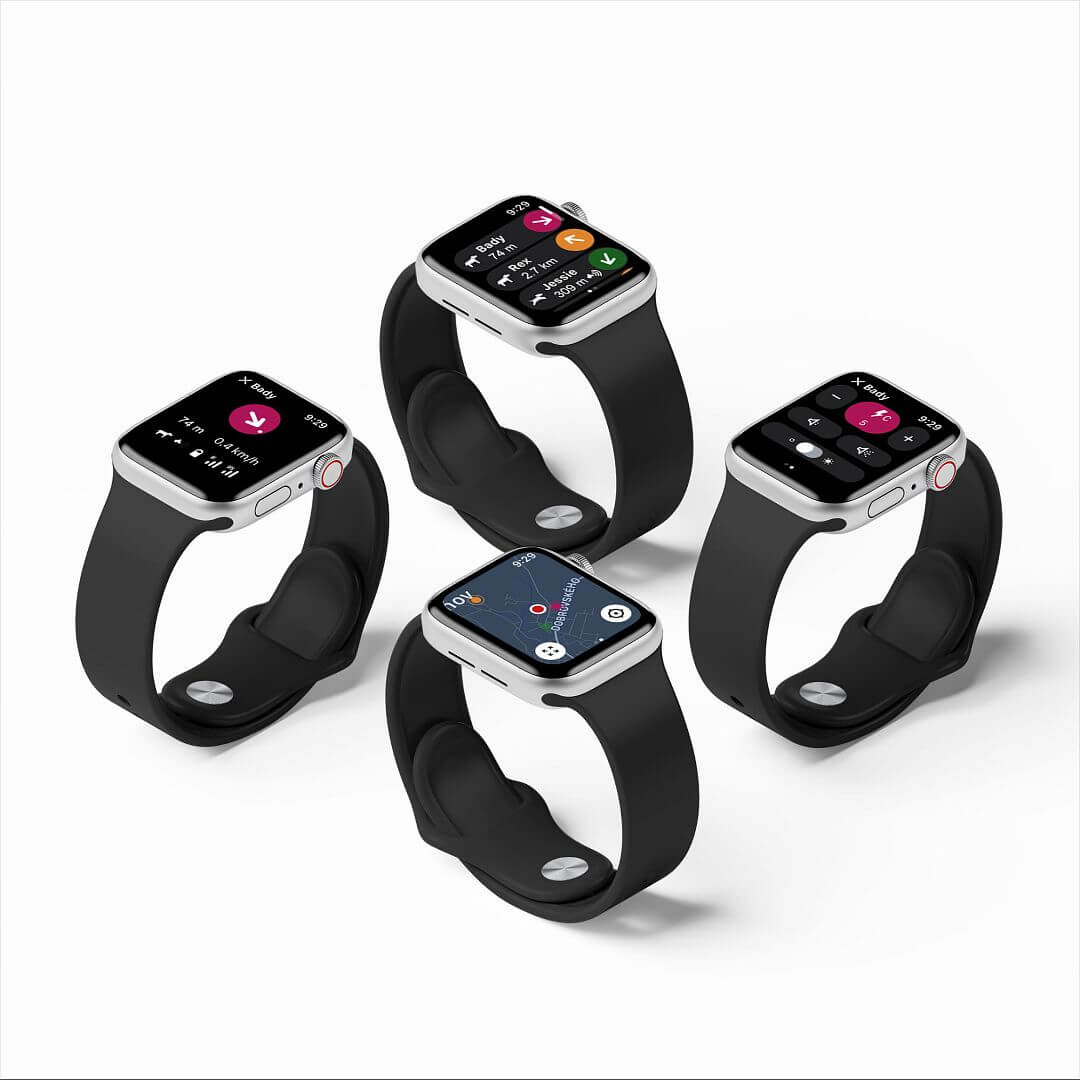

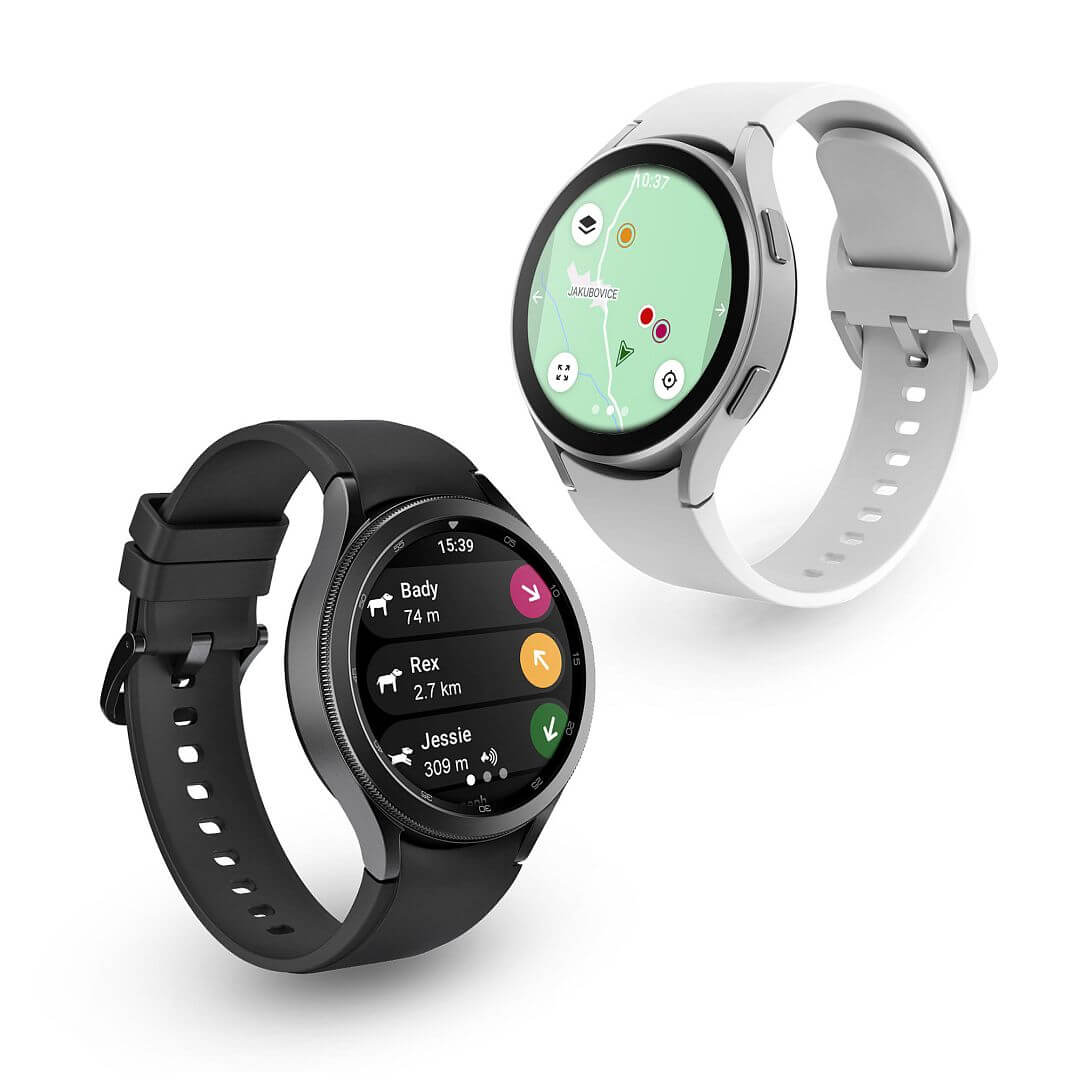

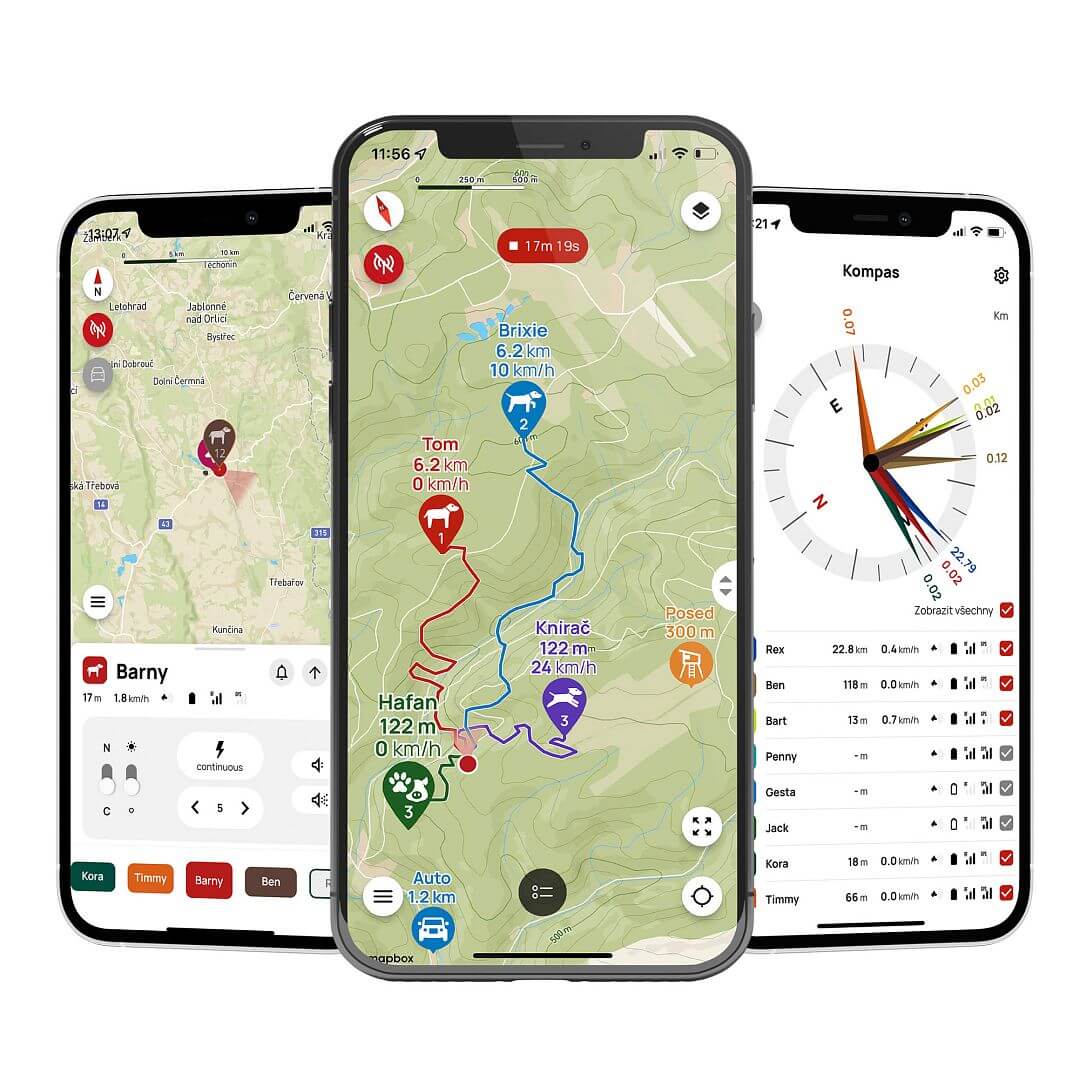

With the Dogtrace GPS app, you always have instant overview of your dog action.

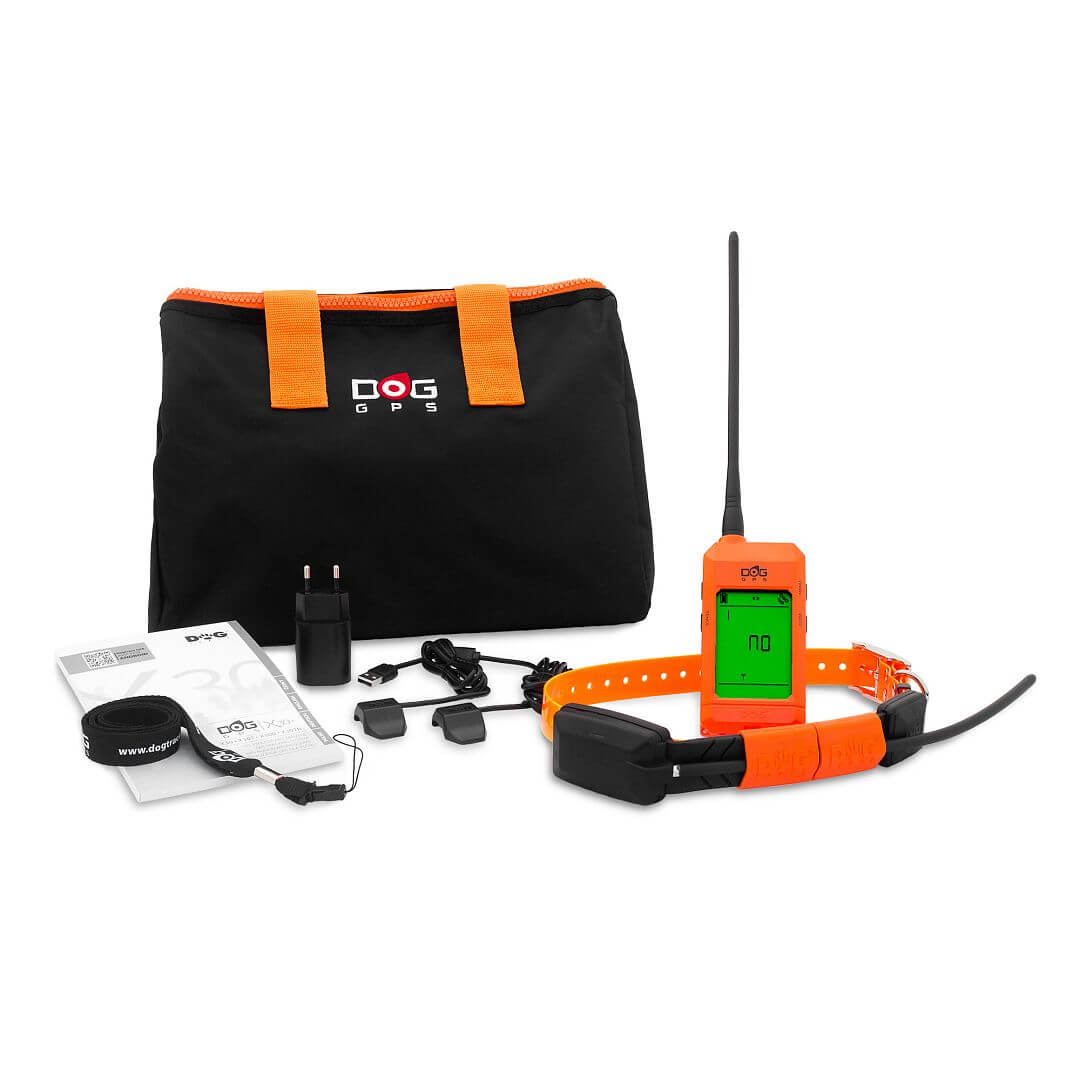

Package Contents:

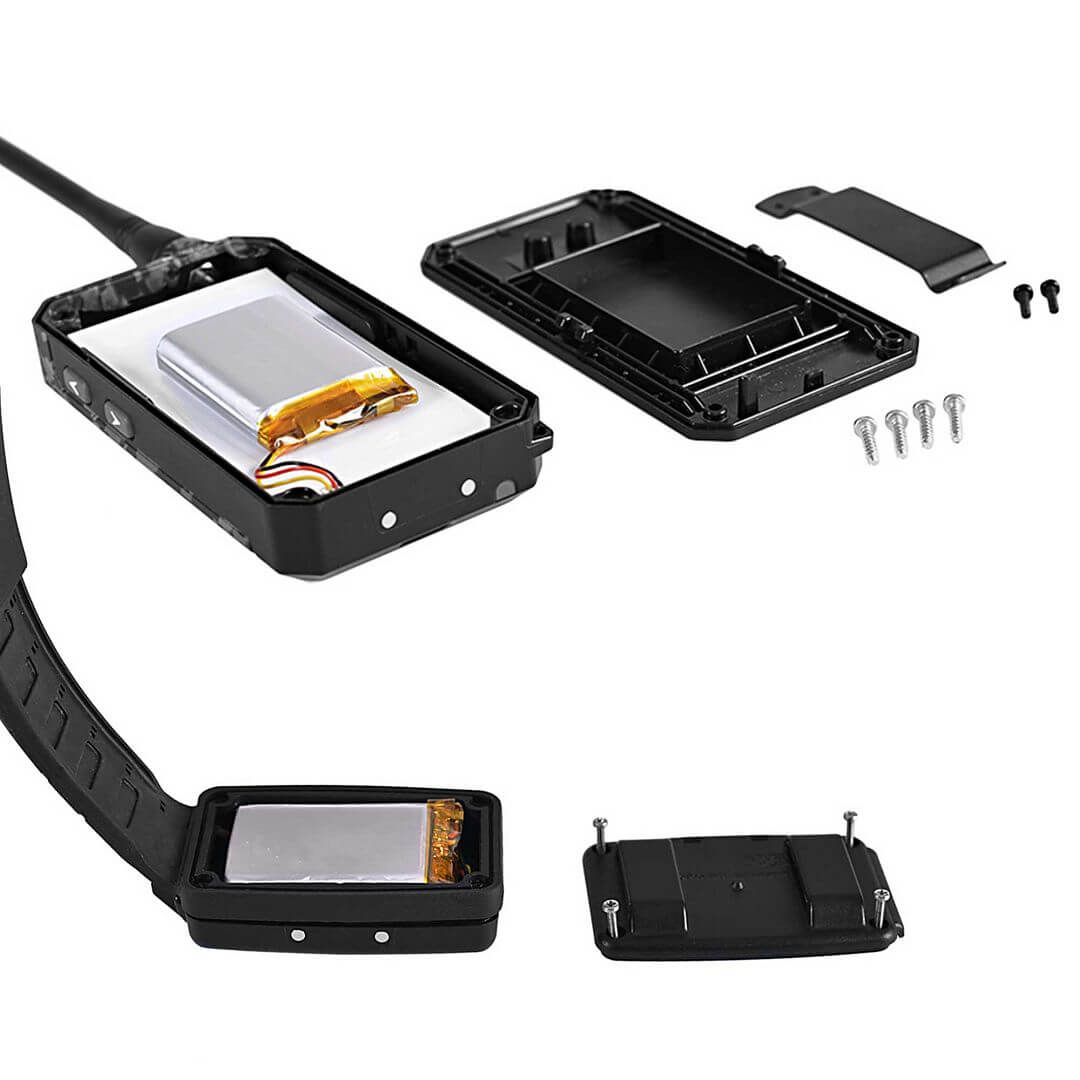

  • Receiver incl. 1900 mAh Li-Pol battery
  • Clip for hanging the receiver on a belt and 2 screws

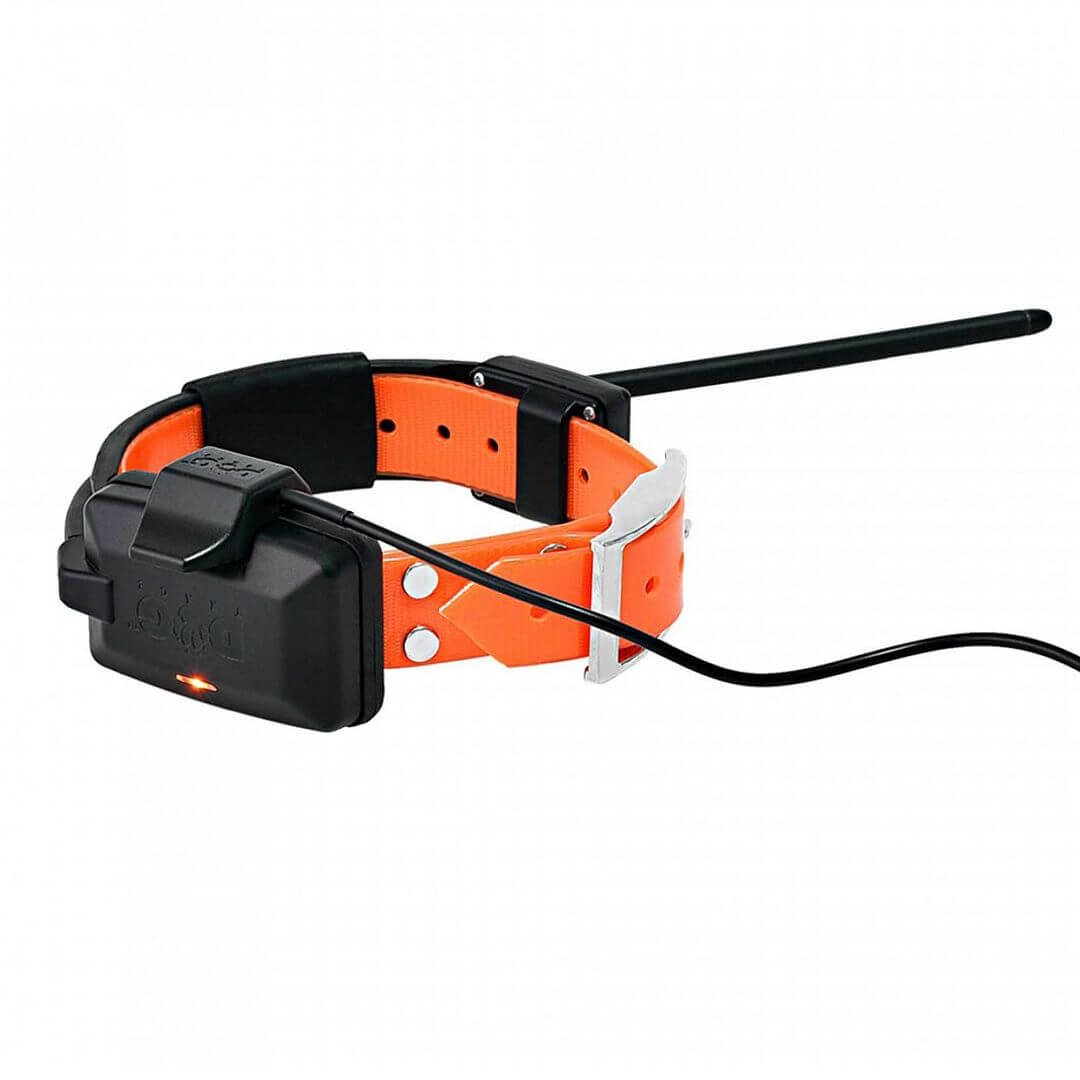

  • Short version of the transmitter (collar) incl. Li-Pol 1900 mAh battery and plastic strap 20 mm × 55 cm

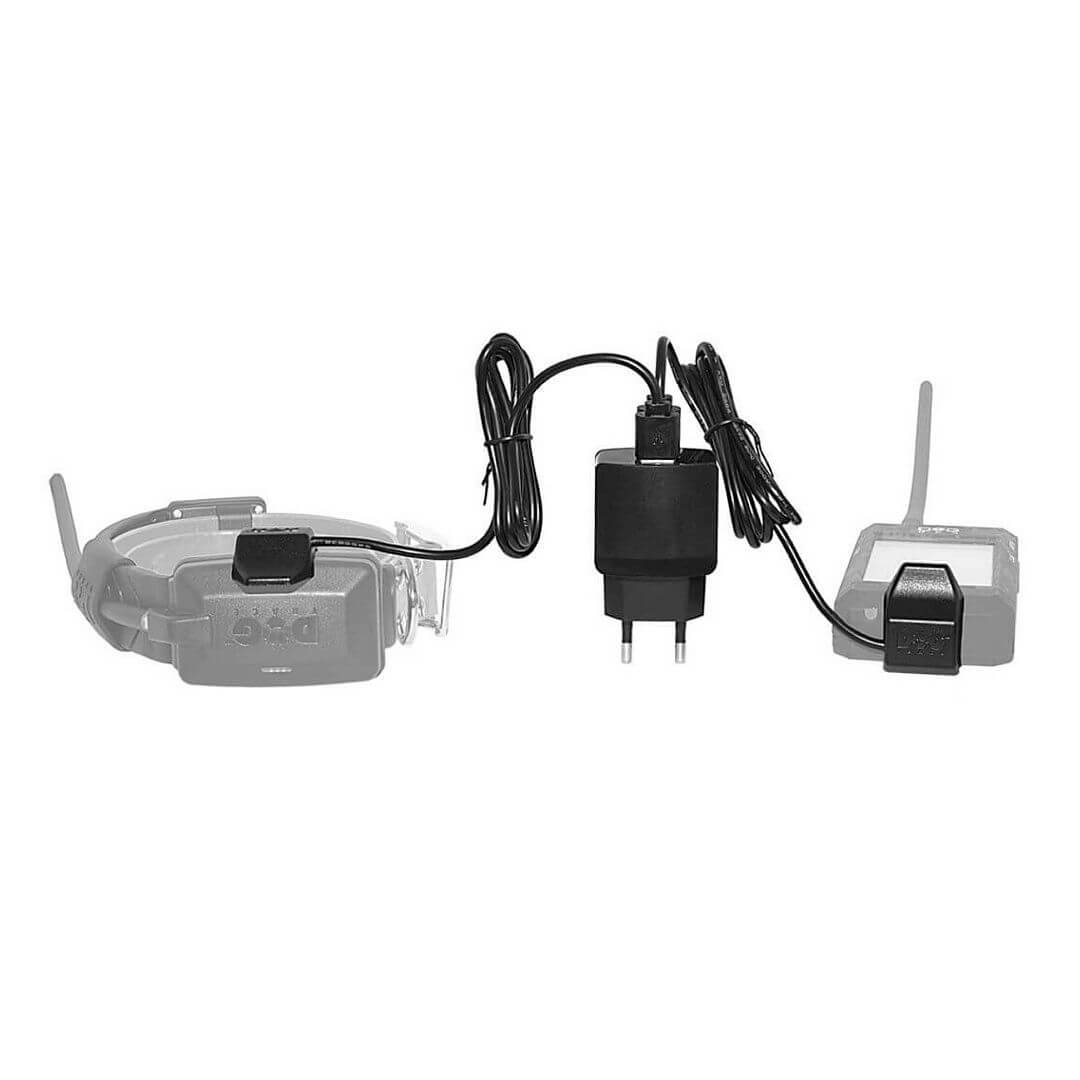

  • Power adapter dual, 2 pcs USB cable with charging clip for GPS
  • Lanyard for hanging the receiver
  • Instructions and warranty card
  • Transport bag

Optional accessories:

  • Spare transmitter and receiver
  • Training module
  • Different coloured belts
  • Li-pol 1900 mAh battery

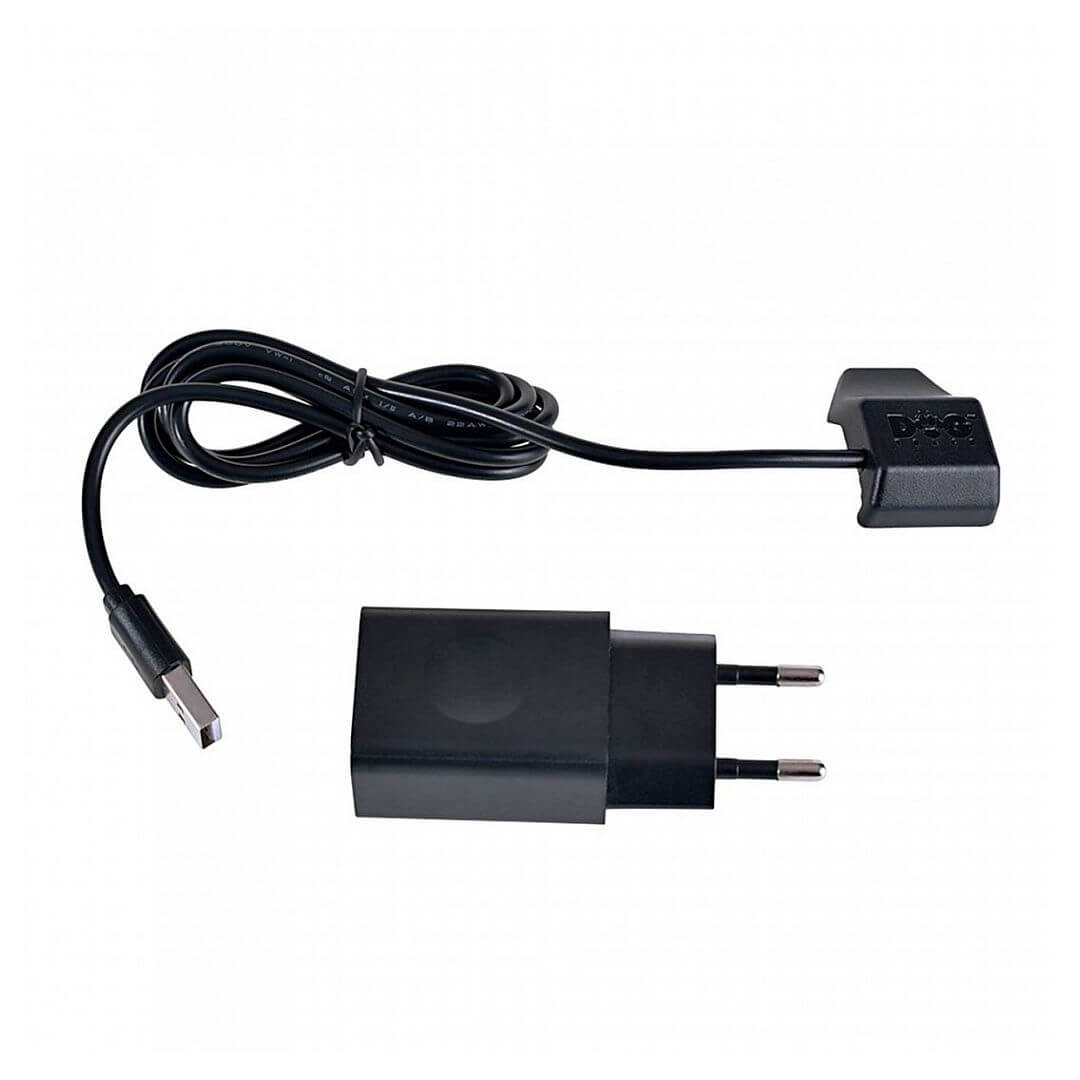

  • Power adapter with USB cable and clip for GPS
  • Replacement silicone transmitter covers - black, orange

Number of dogs 1 - 13
Stimulation pulses 0
Dog size small
Range 20 km
Collar material plastic
Collar size 20 mm × 55 cm
Power supply Li-Pol 1900 mAh
Smallest adjustable circumference 25 cm
Receiver dimensions 119 × 62 × 15 mm
Transmitter dimensions 77 × 45 × 29 mm
Weight of the receiver 197 g
Transmitter weight 142 g
Acoustic signal
Phone control
Maps online/offline
Tracing
Barking detection
Geo-fence
Measurement
BEEPER - run/point
FENCE - circle
WAYPOINT
Compass
