Tracking system with beeper collar DOG GPS X30B

Manage all functions via phone

Manage all functions via phone

Product features Tracking system with beeper collar DOG GPS X30B

range 20 kilometers for 13 devices beeper horn beeper run/point circle fence geofence tracing bark indication tone waypoint waterproof compass online offline maps measurement rechargeable battery

Product Details Tracking system with beeper collar DOG GPS X30B

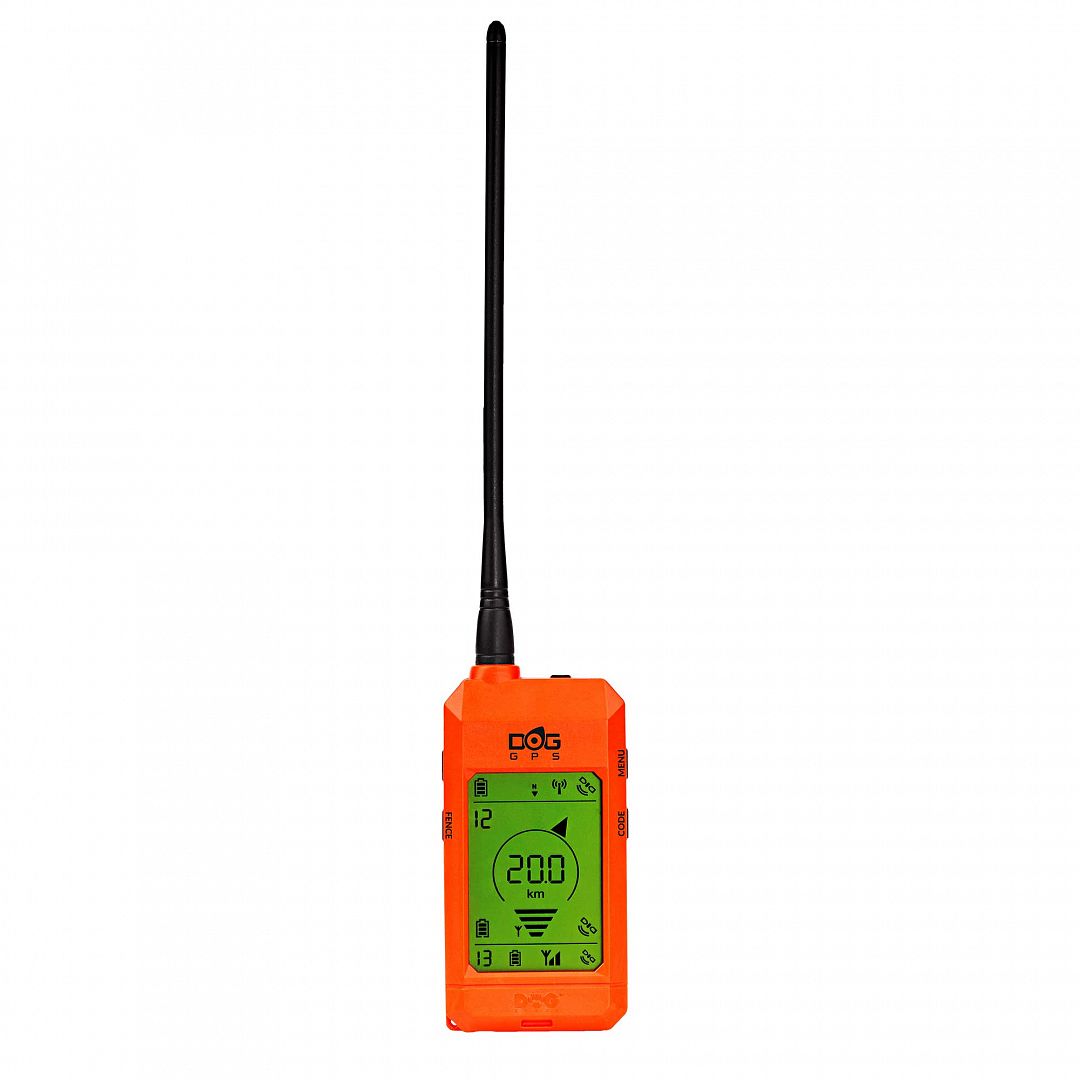

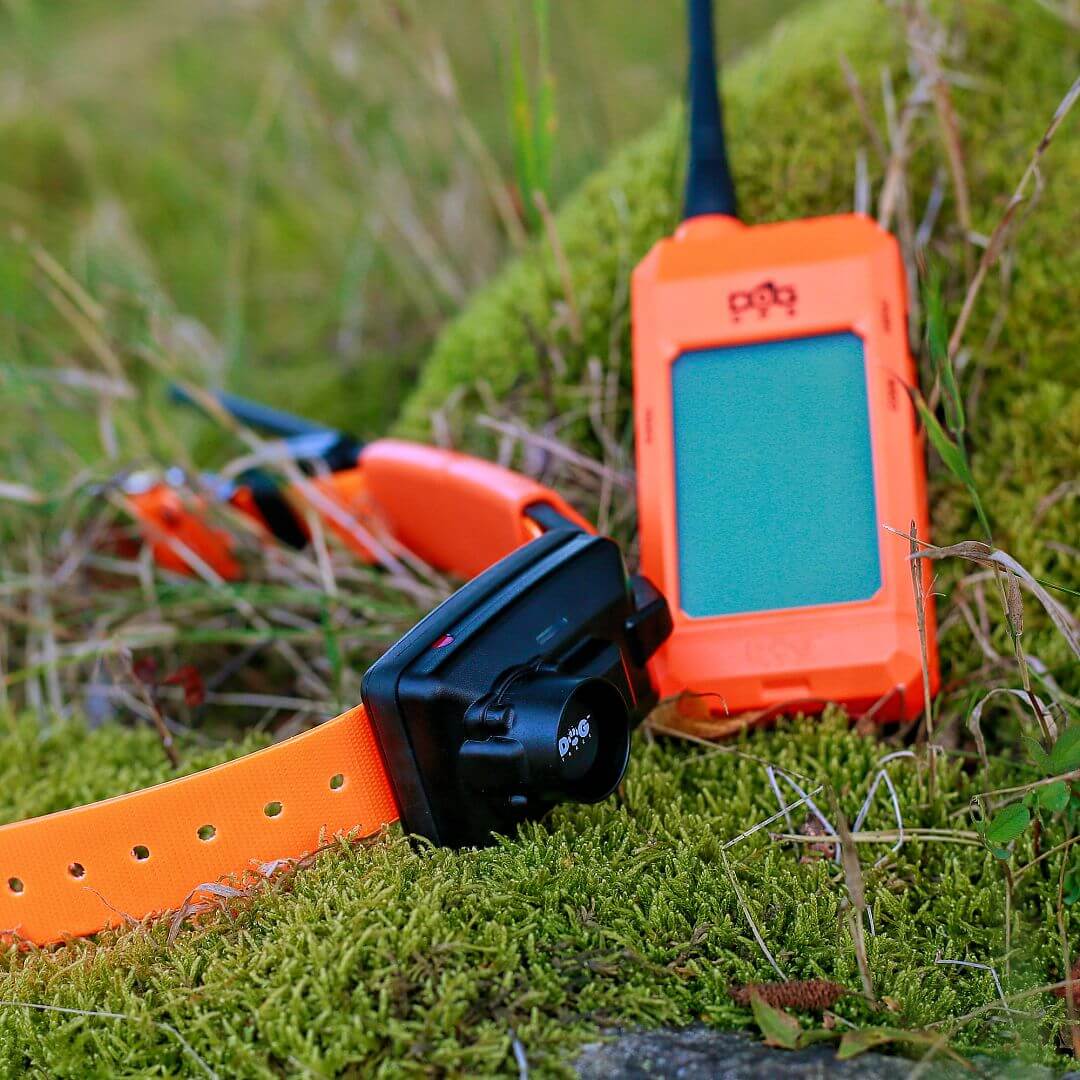

DOG GPS consists of the transmitter located on the dog’s collar and the receiver (handset) on which the dog handler tracks the distance and direction towards the dog’s location.

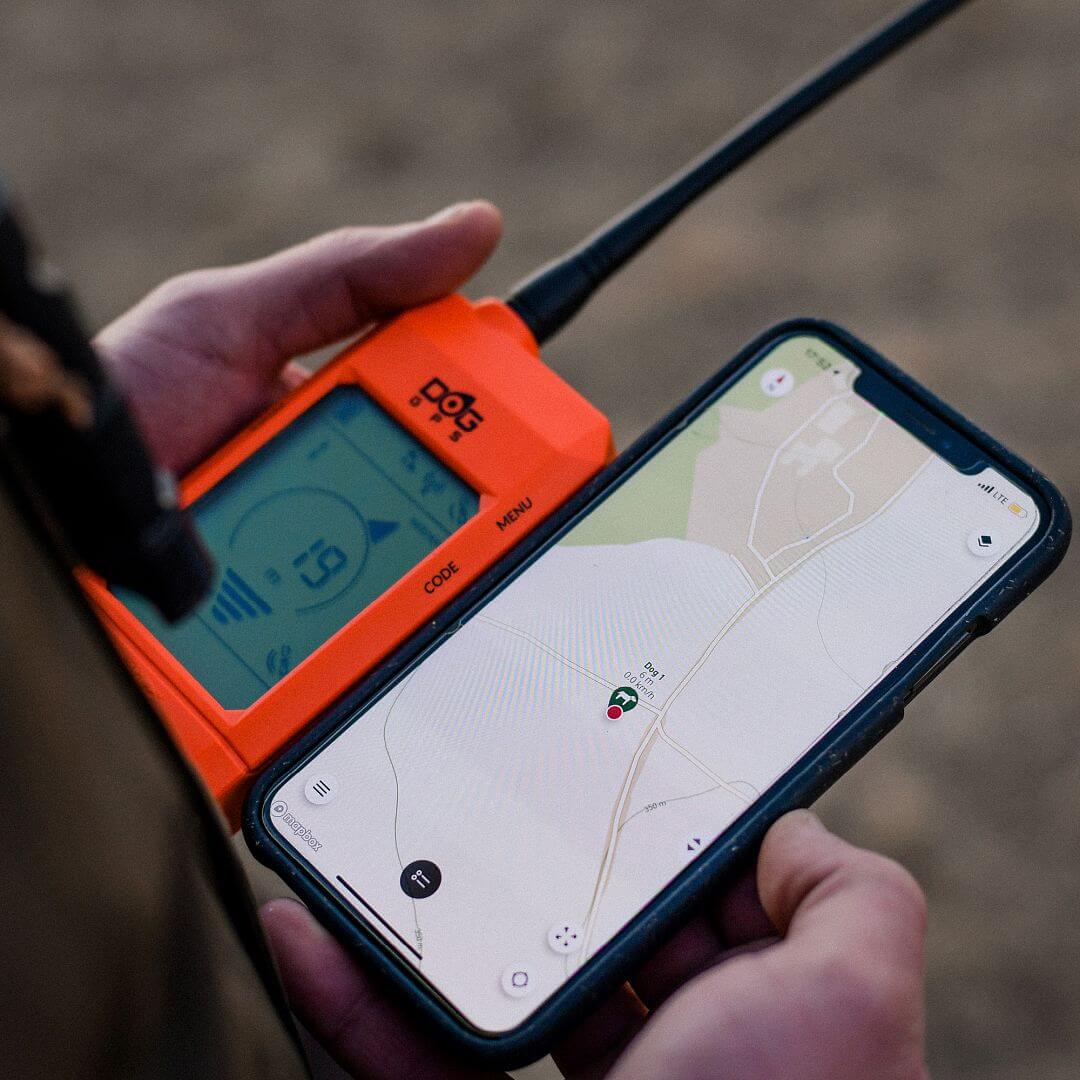

The receiver may be connected to a mobile phone or tablet via wireless communication and all paired devices may be viewed using the Dogtrace GPS app on the map.

Device features:

  • Range between the transmitter and the receiver is up to 20 km in direct visibility
    (depending on terrain, vegetation, and other factors)
  • Tracking up to 13 dogs, hunters, or waypoints
  • Highly sensitive GPS in the receiver and transmitter
  • Easy-to-read LCD display - in direct sunlight and in the dark
  • 100% waterproof receiver and transmitter
  • Long battery life - 40 hours of operation
  • 2 acoustic signal modes – training/localization

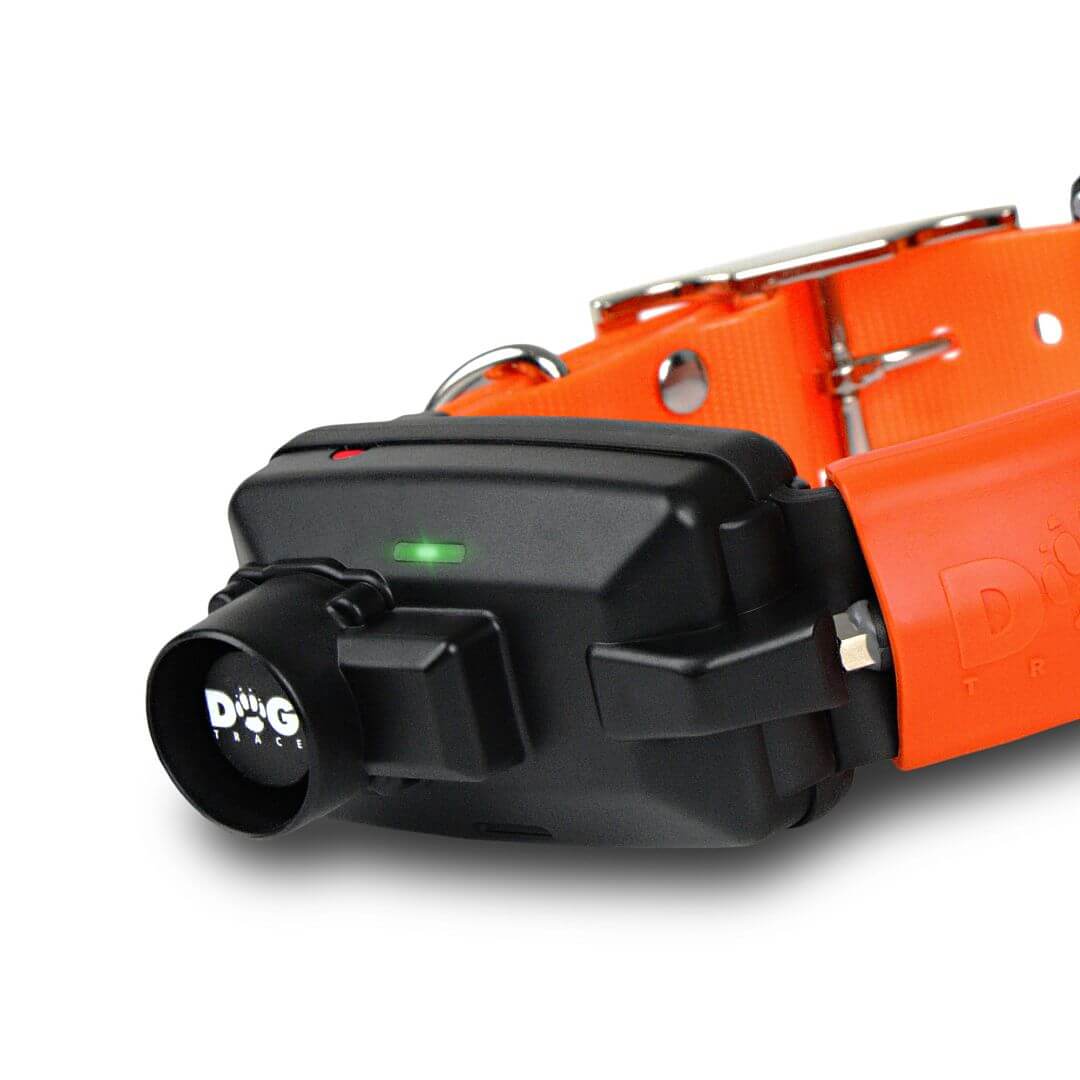

  • BEEPER (on collar) – beeper locator - loud location sound audible up to 300 m
  • Switching channels for communication between the transmitter and receiver
  • Compass feature
  • FENCE (circular fence)indicates that the set distance from the dog handler has been exceeded
  • BEEPER (in handset)– detection of dog in motion/standing still
  • Waypoint – option to store 13 GPS receiver coordinates – navigation to these points
  • CAR mode – mode for using the receiver (handset) in the vehicle
  • Receiver is compatible with all DOG GPS transmitters (collars).

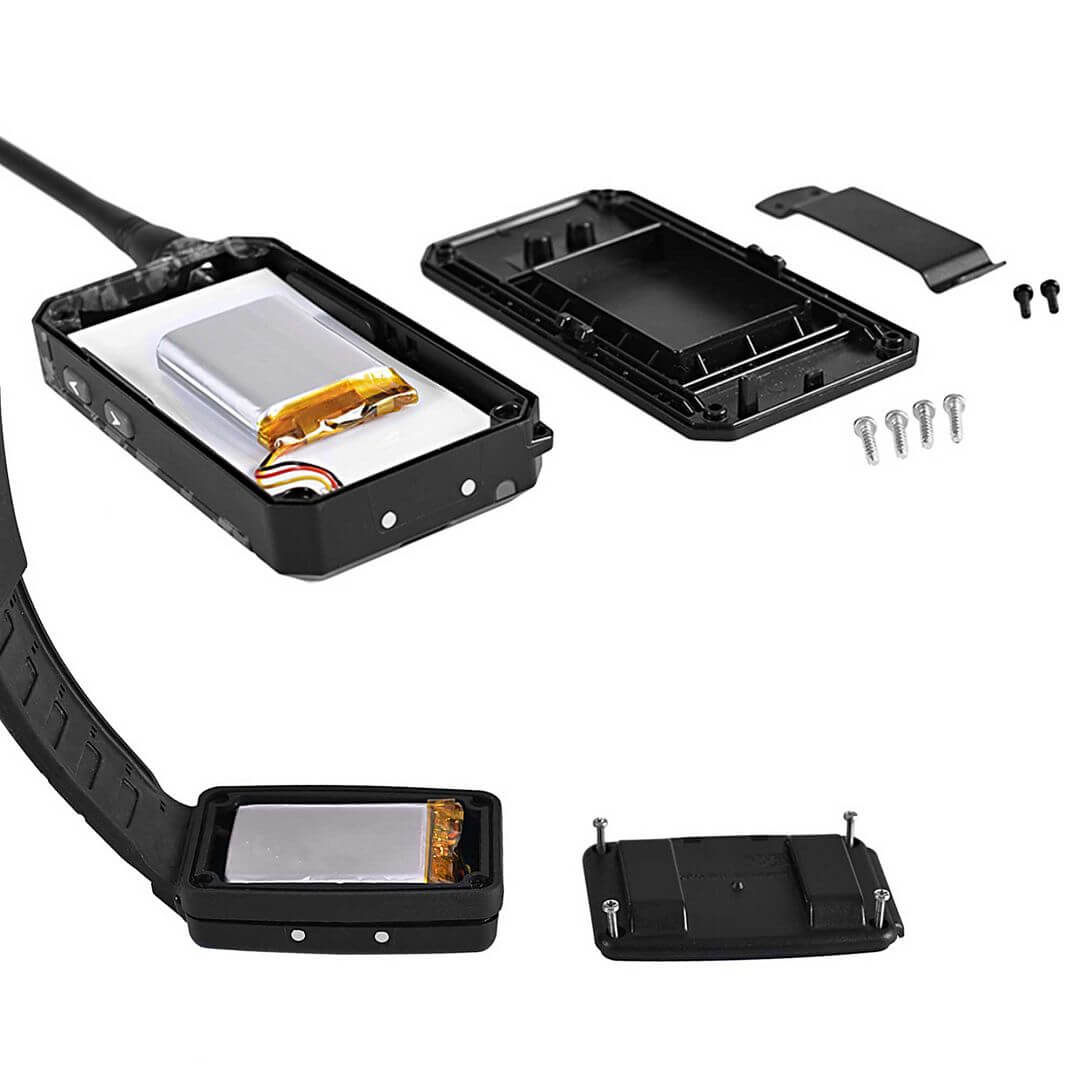

  • Battery: Li-Pol 1900 mAh – recharging

Manage all functions via phone
Manage all functions via phone

Manage all functions via phone

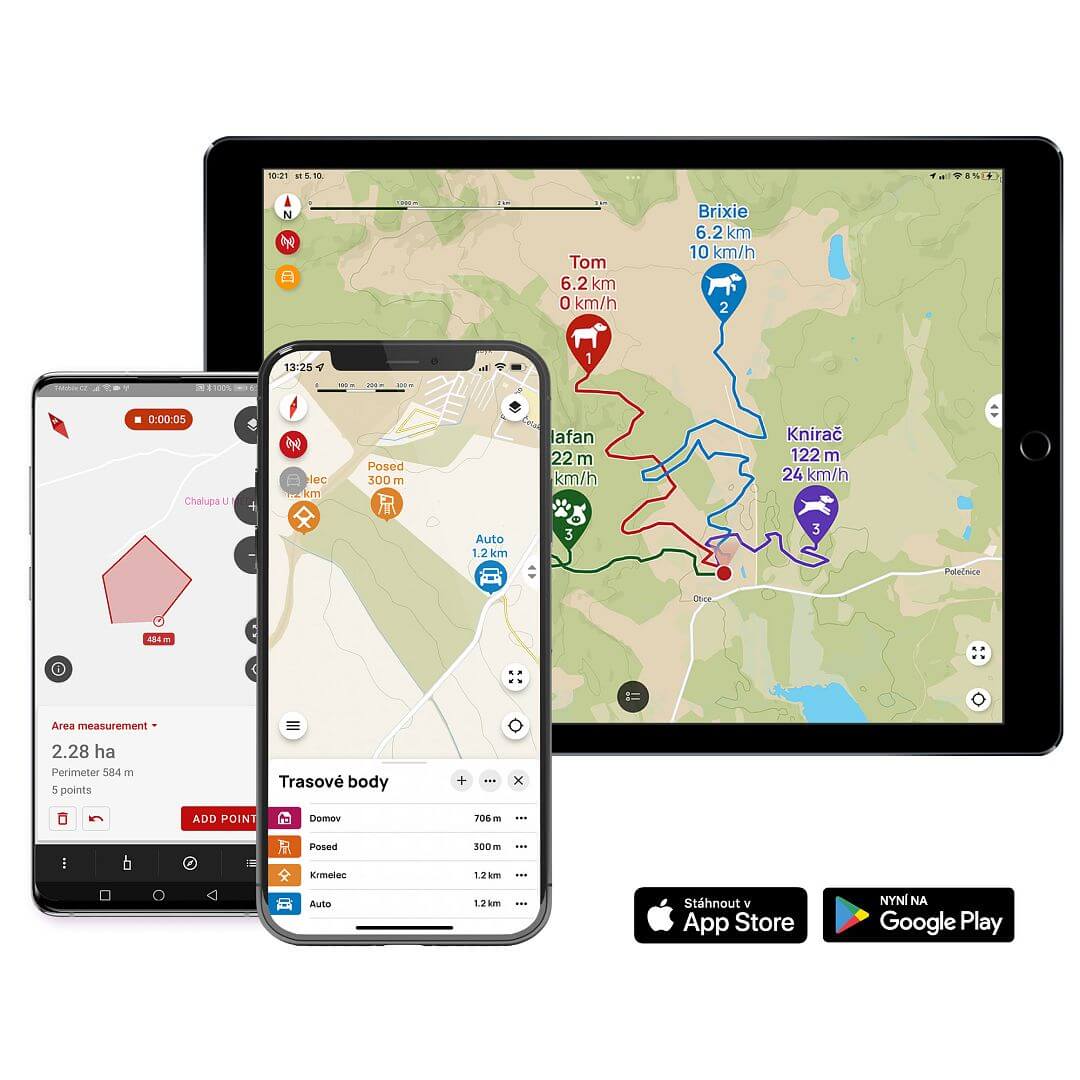

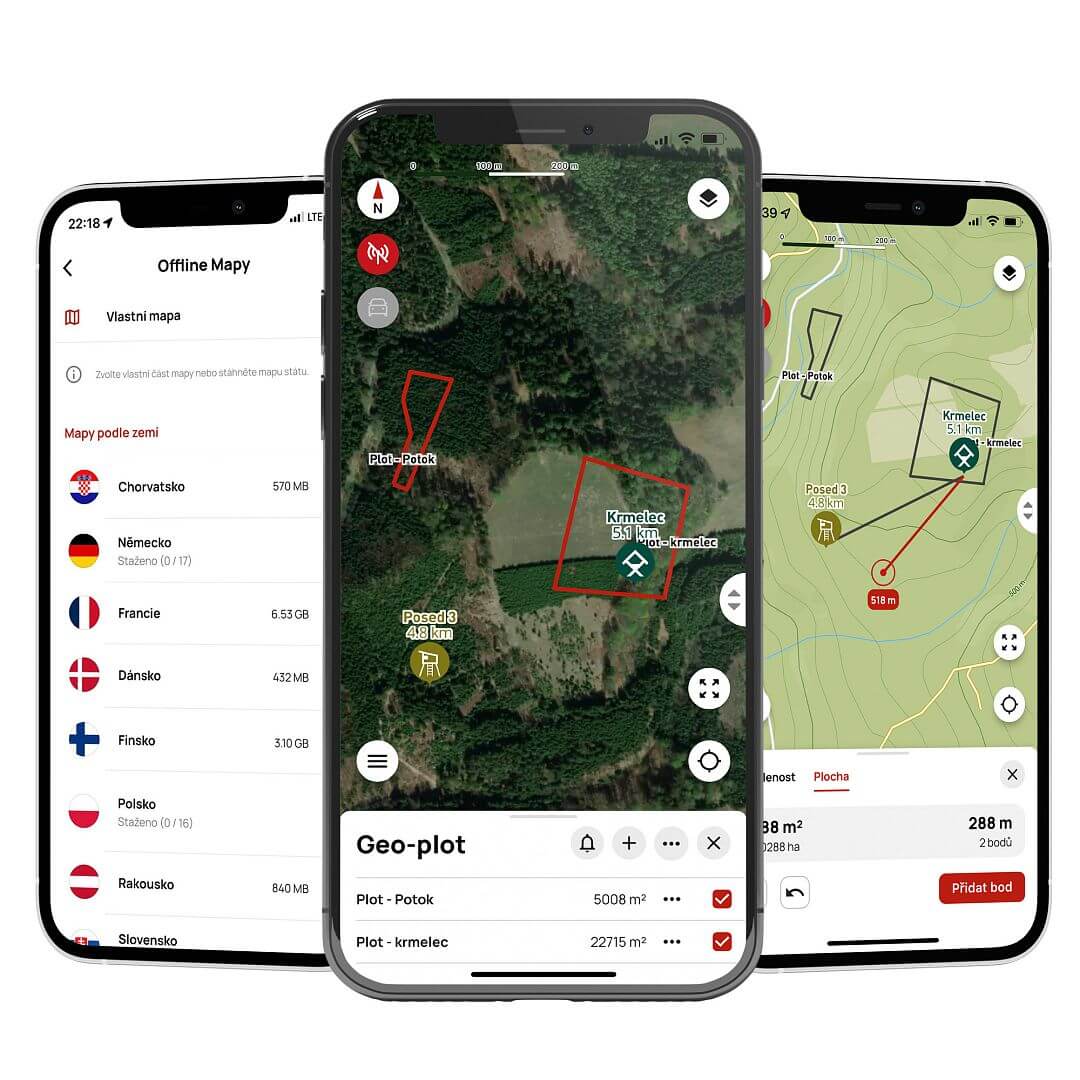

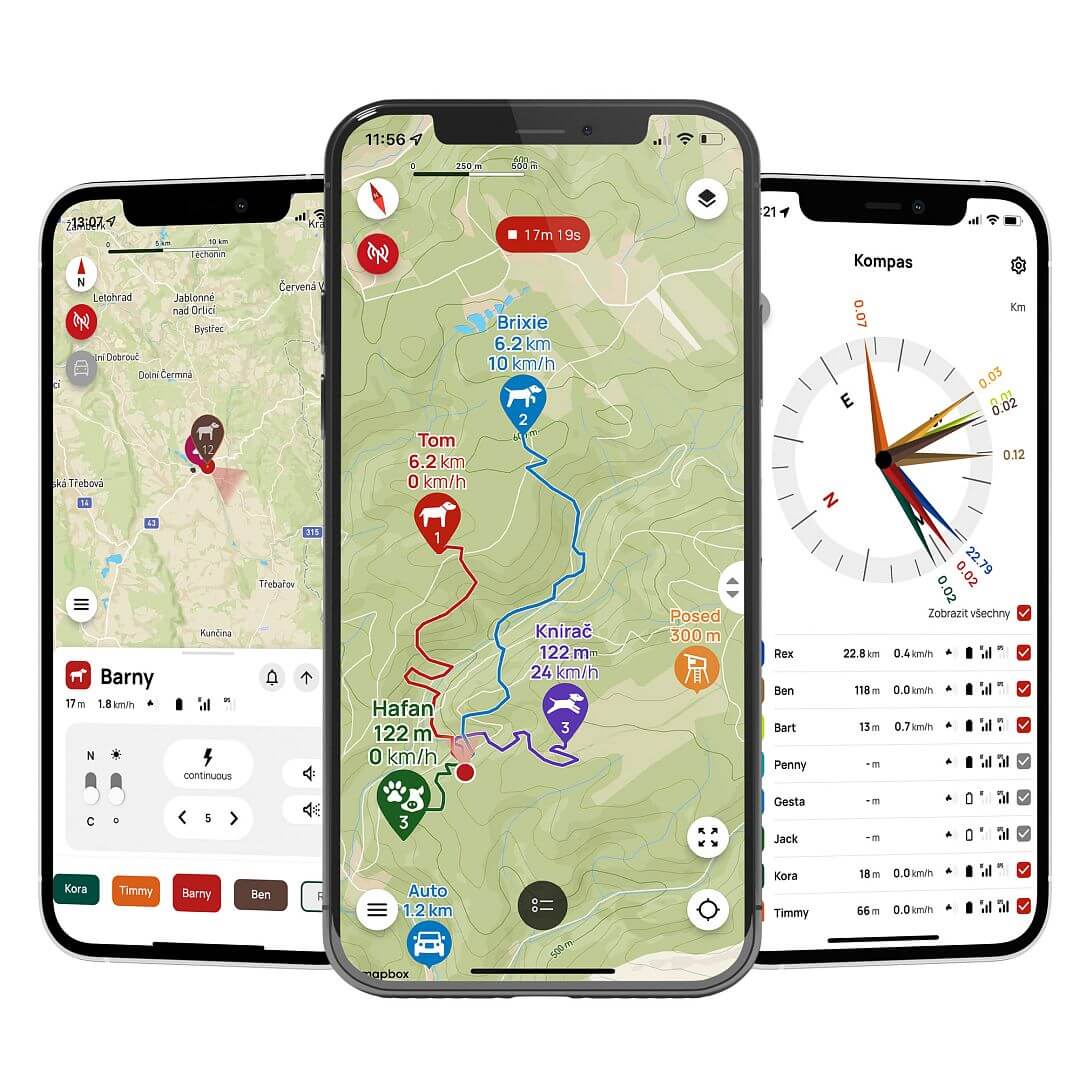

With the Dogtrace GPS app, you always have instant overview of your dog action.

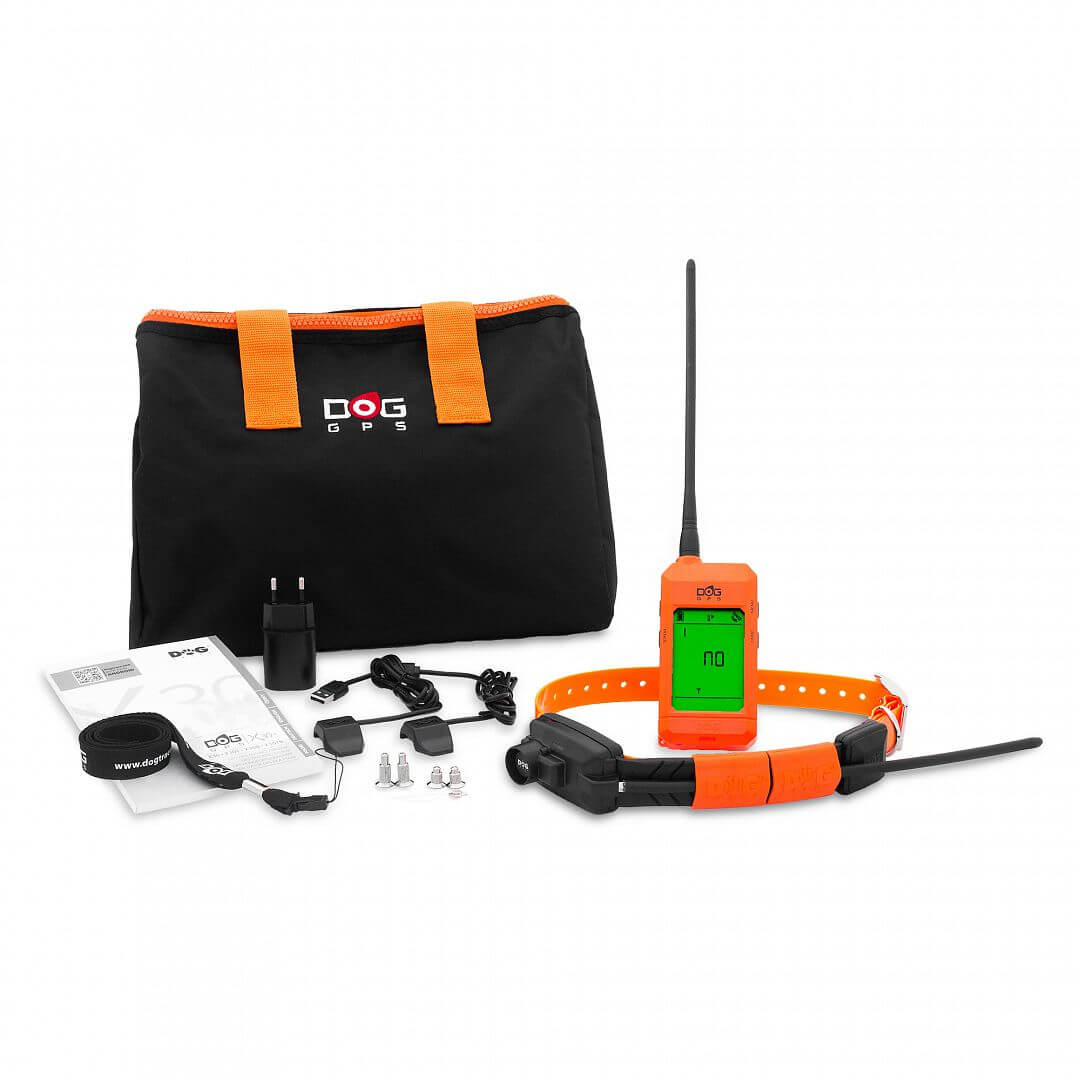

Package contents:

  • Receiver including Li-Pol 1900 mAh battery
  • Clip for hanging the receiver on a belt and two screws

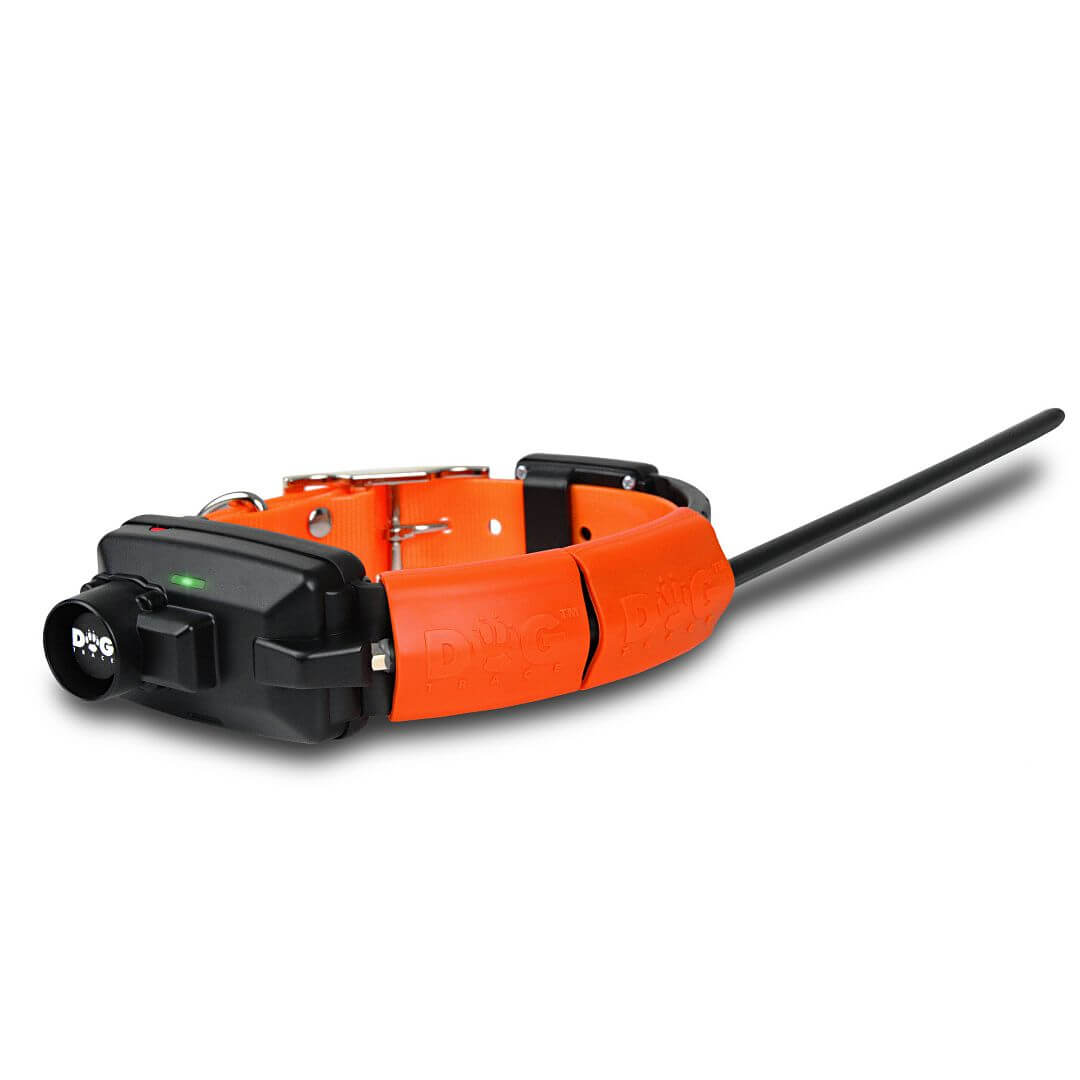

  • Transmitter with beeper including Li-Pol 1900 mAh and the belt

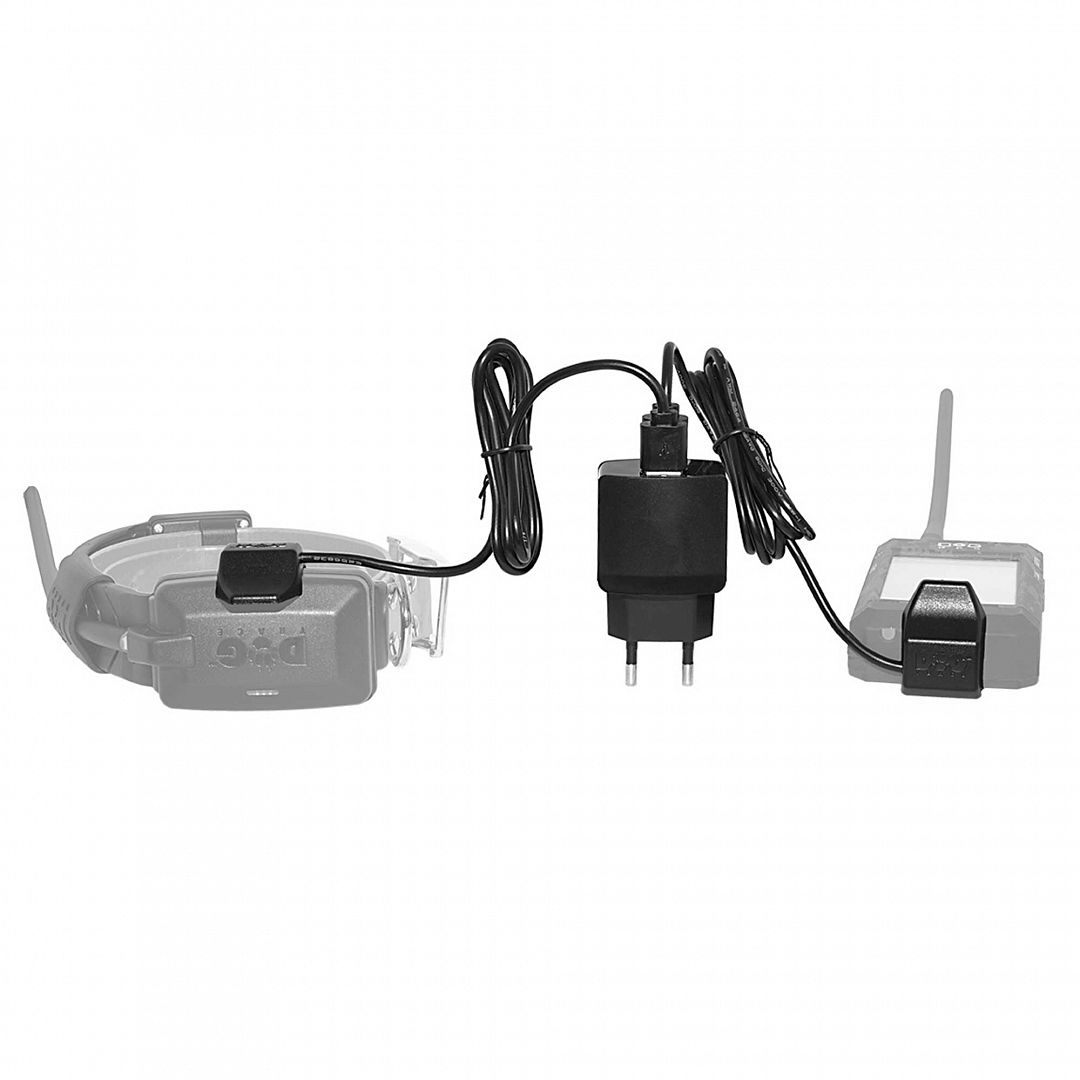

  • Dual power adapter, two USB cables with GPS charging clip
  • Cord for handing the receiver
  • Operating Manual and Certificate of Warranty
  • Equipment bag

Number of dogs 1 - 13
Stimulation pulses 0
Dog size medium, large
Range 20 km
Collar material plastic
Collar size 25 mm × 70 cm
Power supply Li-Pol 1900 mAh
Smallest adjustable circumference 32 cm
Receiver dimensions 119 × 62 × 15 mm
Transmitter dimensions 77 × 45 × 44 mm
Receiver weight (without battery) 192 g
Transmitter weight (without battery) 154 g
Sound locator
Acoustic signal
Phone control
Maps online/offline
Barking detection
BEEPER - run/point
FENCE - circle
