Tracking system DOG GPS X30

Manage all functions via phone

Manage all functions via phone

Product features Tracking system DOG GPS X30

range 20 kilometers for 13 devices beeper run/point circle fence geofence bark indication tracing waypoint tone waterproof compass online offline maps measurement rechargeable battery

Product Details Tracking system DOG GPS X30

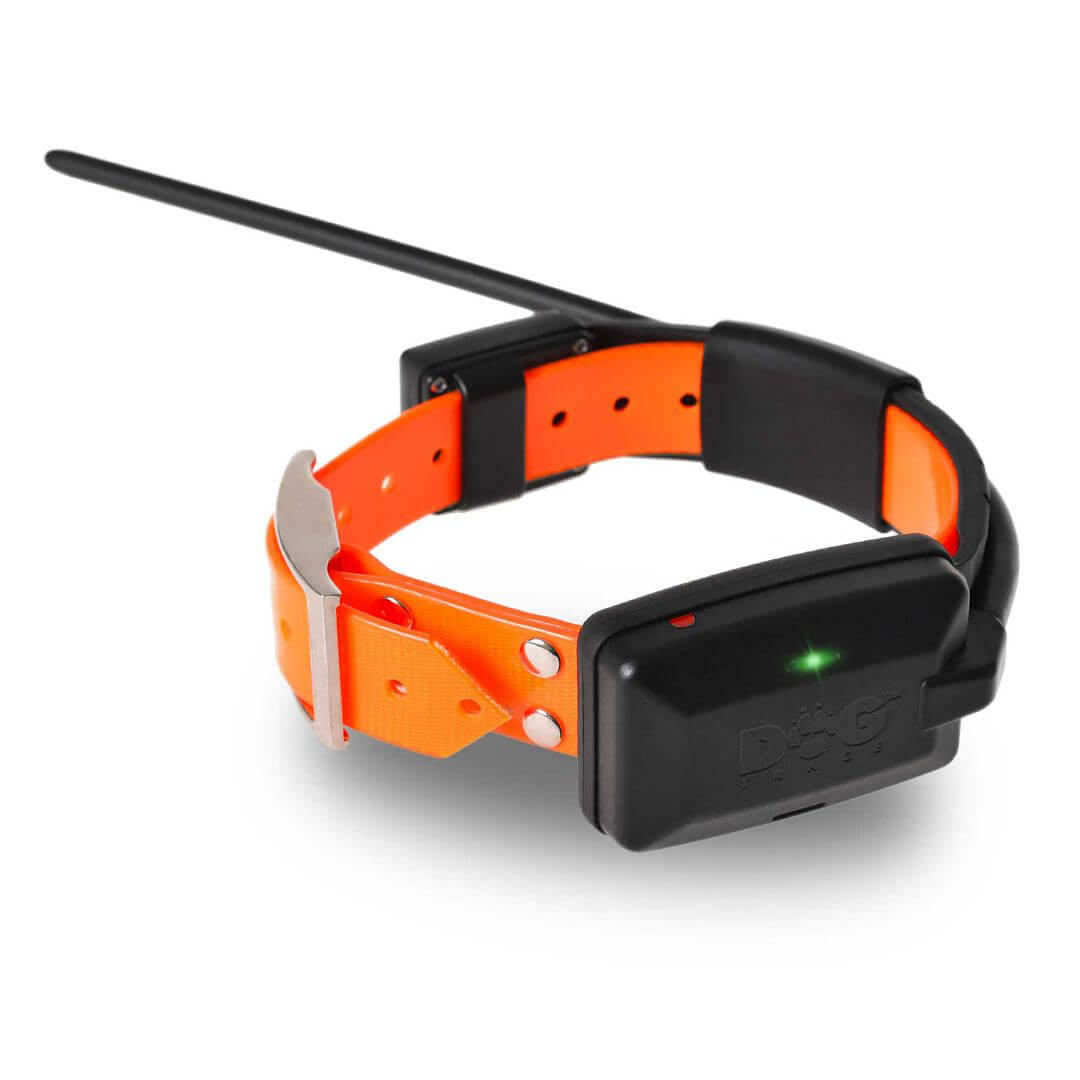

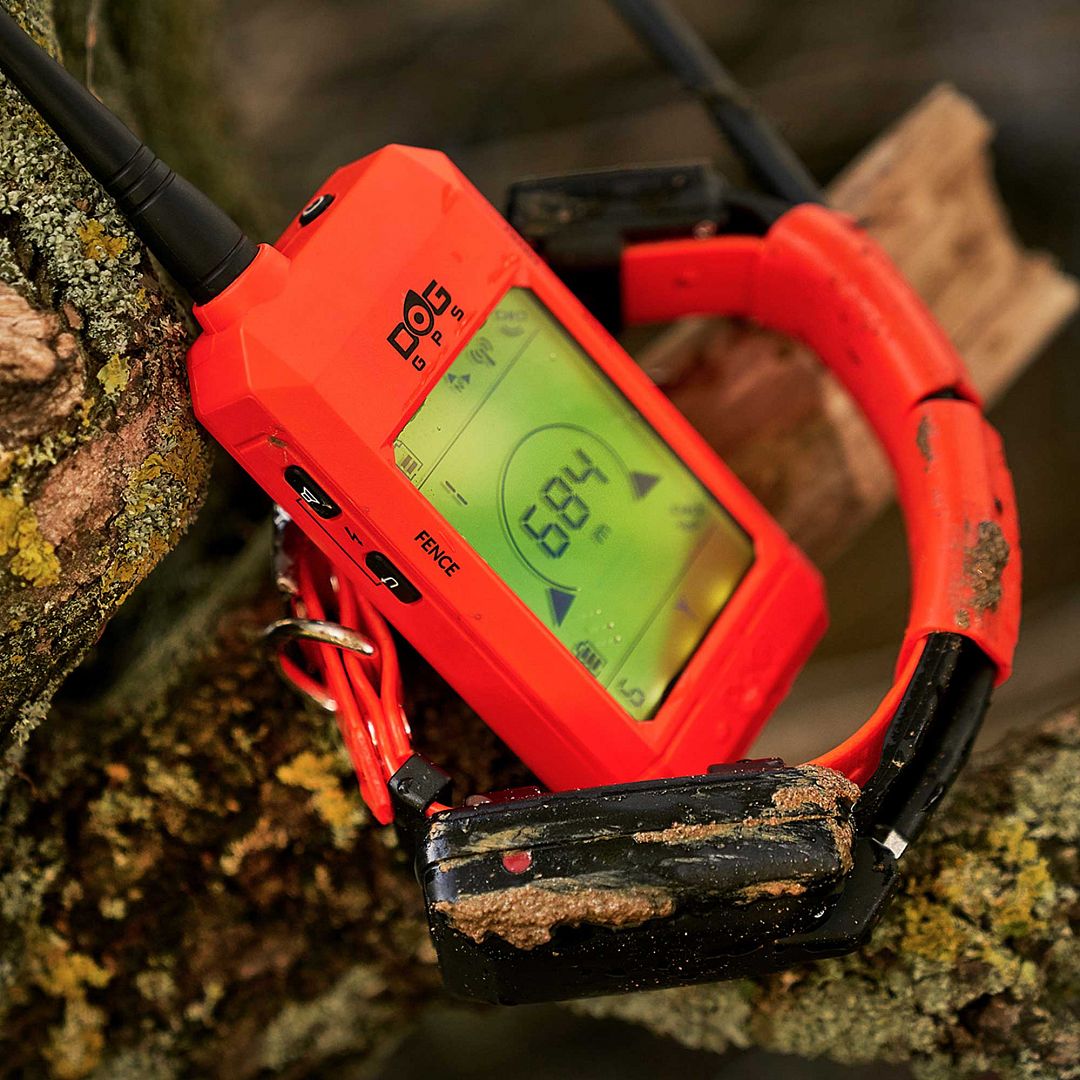

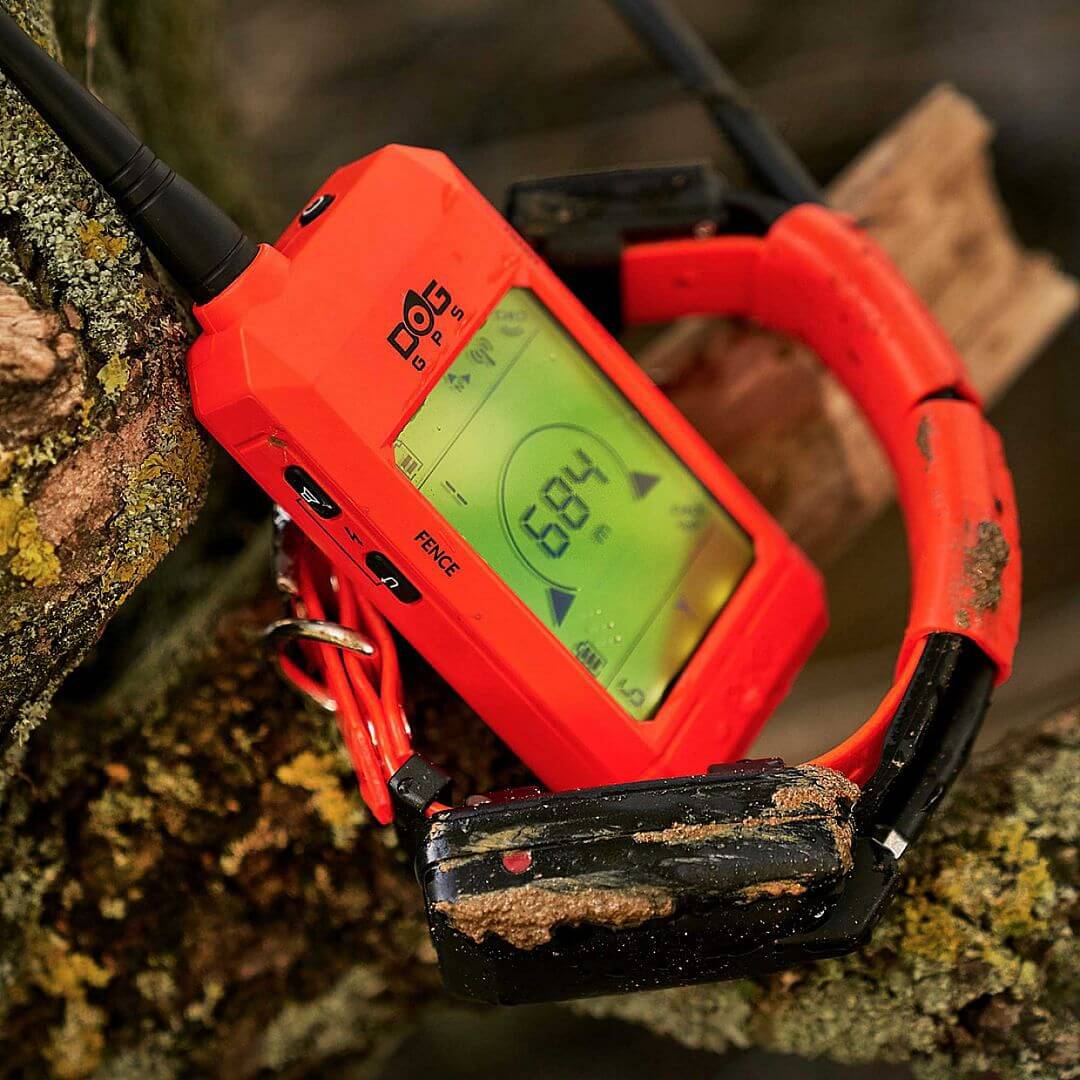

DOG GPS consists of the transmitter located on the dog’s collar and the receiver (handset) on which the dog handler tracks the distance and direction towards the dog’s location.

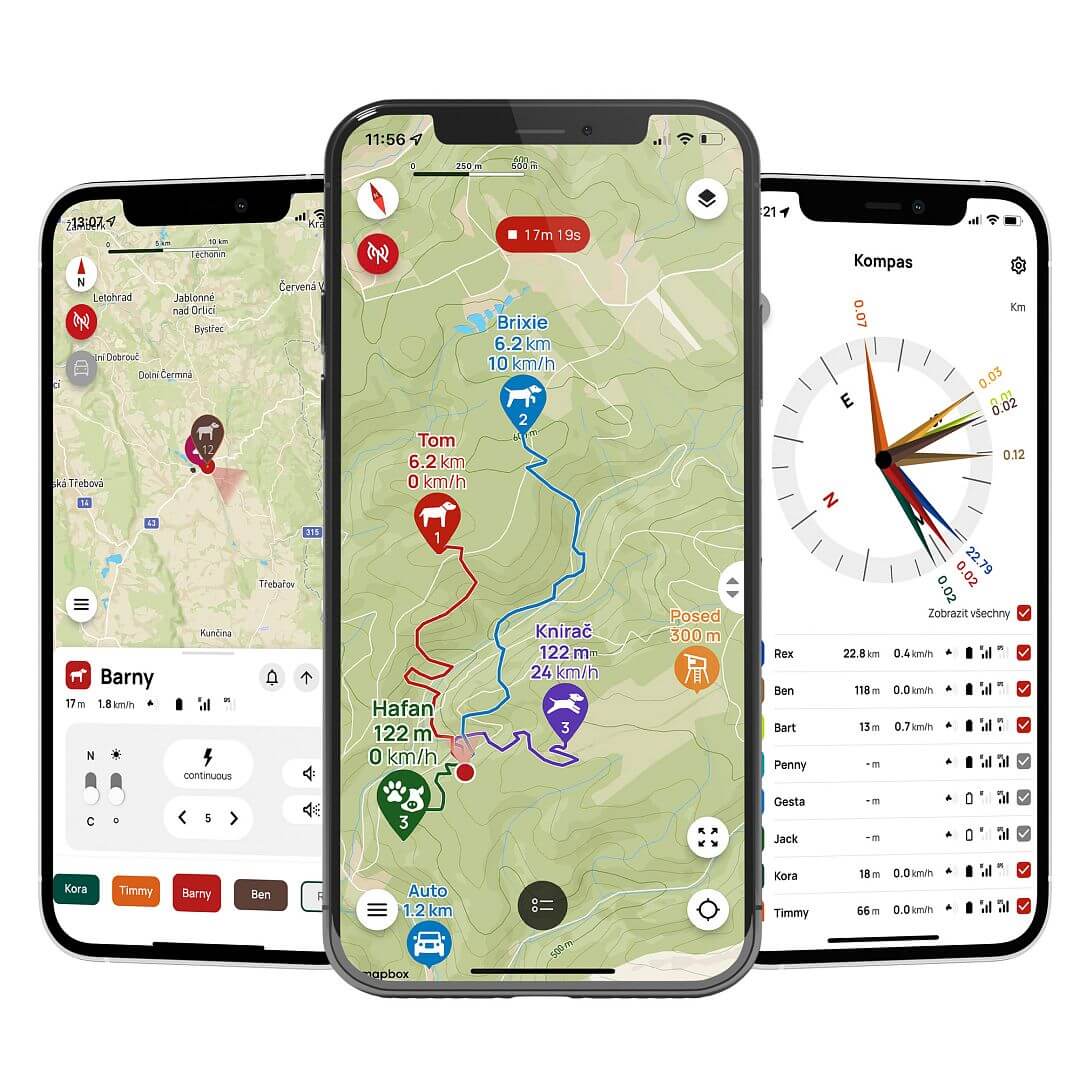

The receiver may be connected to a mobile phone or tablet via wireless communication and all paired devices may be viewed using the Dogtrace GPS app on the map.

DOG GPS X30 also features additional functions: compass, FENCE – acoustic border, which provides information about the dog crossing the boundaries at a specified distance from the receiver. Also, it has a function BEEPER (run/point) which shows, if the dog is in motion or still. The receiver allows storing its current position and then navigating to this position (the WAYPOINT function).

Device features:

  • Range between the transmitter and the receiver is up to 20 km in direct visibility
    (depending on terrain, vegetation and other factors)
  • Tracking up to 13 dogs, hunters or waypoints
  • Highly sensitive GPS in the receiver and transmitter
  • Easy-to-read LCD display - in direct sunlight and in the dark
  • 100% waterproof receiver and transmitter
  • Long battery life - 40 hours of operation
  • 2 acoustic signal modes – training/localization
  • 15 stimulation pulse levels (GPS X30T only)
  • Light mode for identifying dog in the dark (GPS X30T only)
  • Switching channels for communication between the transmitter and receiver
  • Compass feature
  • FENCE – acoustic boundary to set the area for the dog
  • BEEPER – detection of dog in motion/standing still
  • Waypoint – option to store 13 GPS receiver coordinates – navigation to these points
  • CAR mode – mode for using the receiver (handset) in the vehicle
  • The receiver is compatible with transmitters (collars) X20 / X20+
    (some functions are limited)
  • Battery: Li-Pol 1900 mAh – recharging

Manage all functions via phone
Manage all functions via phone

Manage all functions via phone

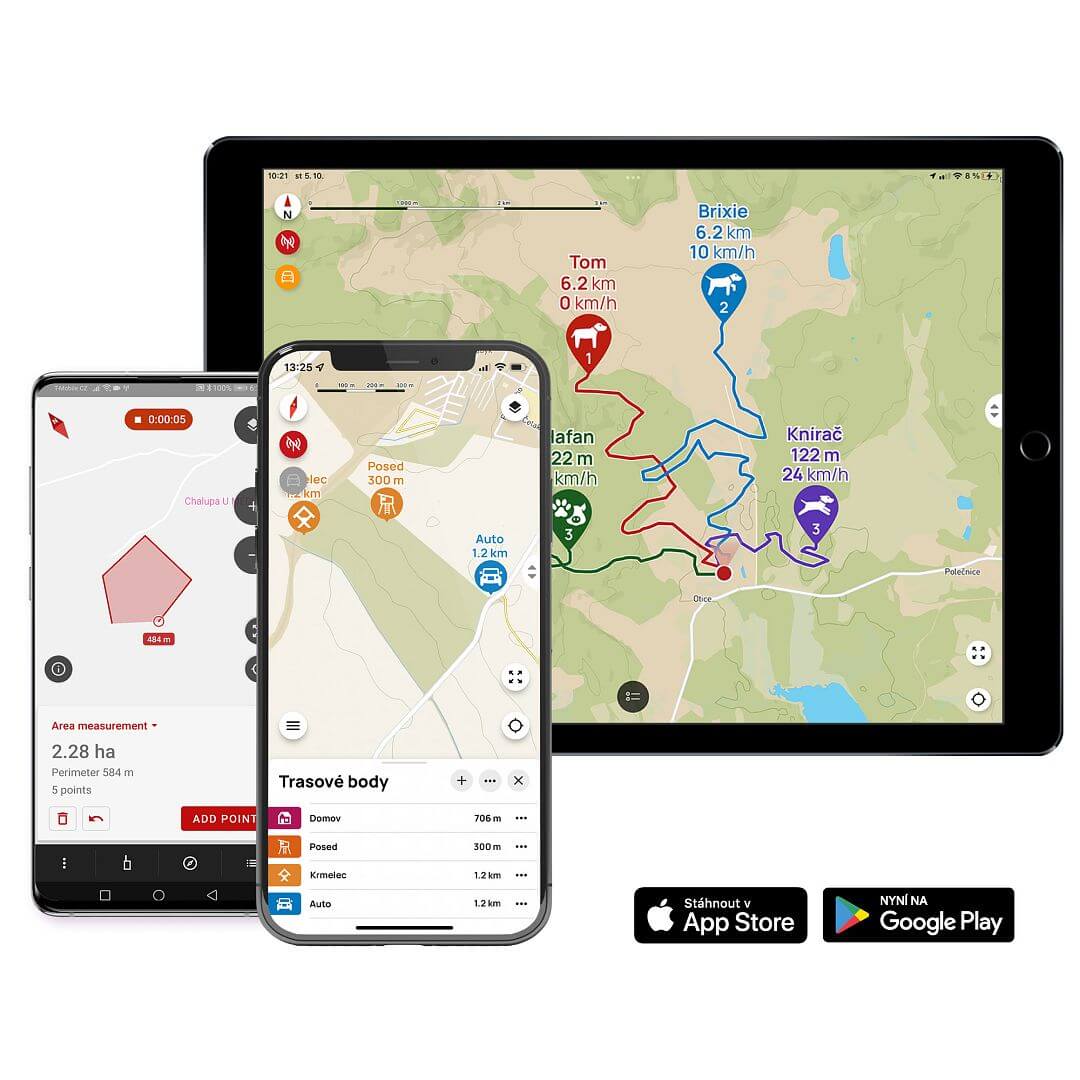

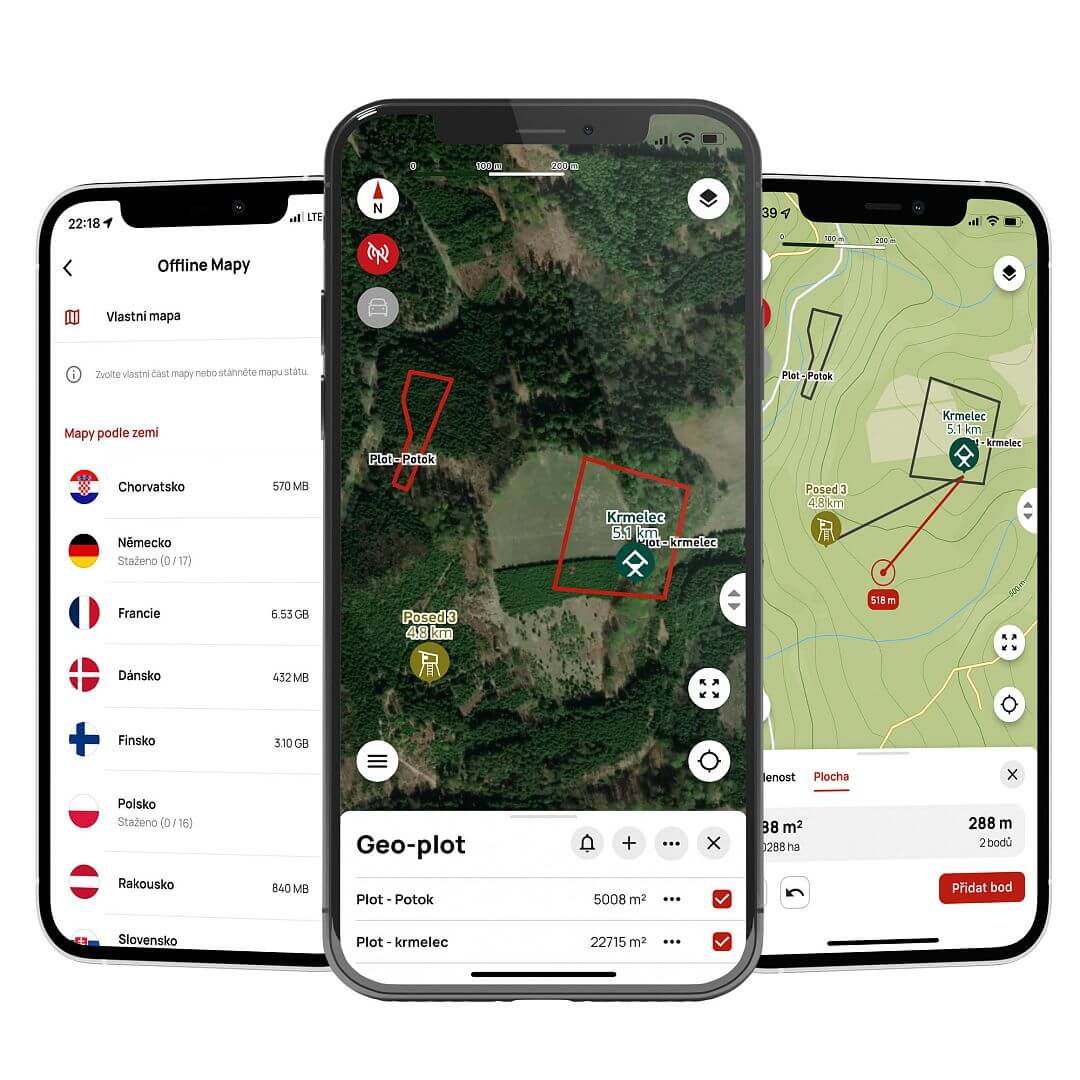

With the Dogtrace GPS app, you always have instant overview of your dog action.

Package contents:

  • Receiver including Li-Pol 1900 mAh battery
  • Clip for hanging the receiver on a belt and two screws
  • Transmitter including Li-Pol 1900 mAh and the belt

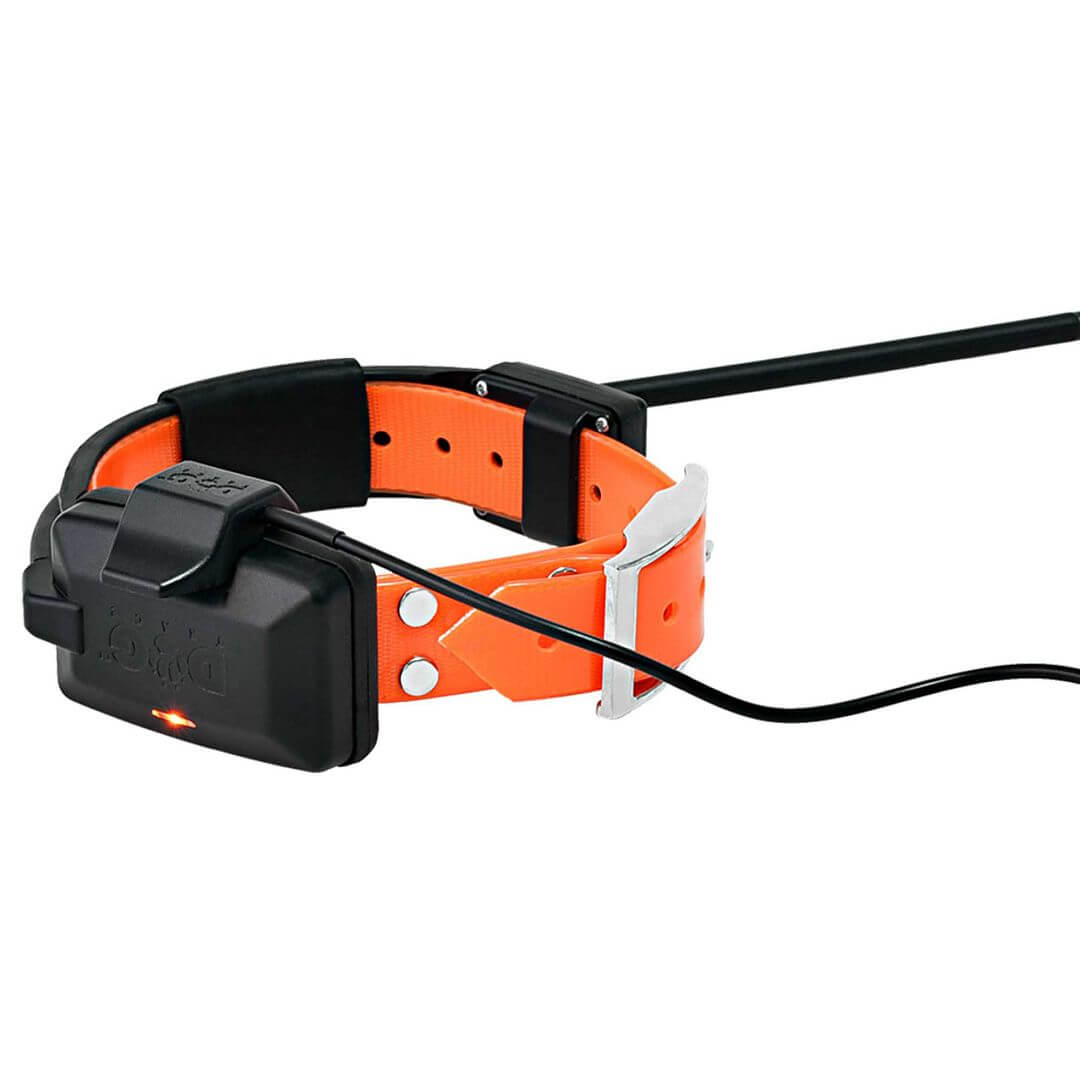

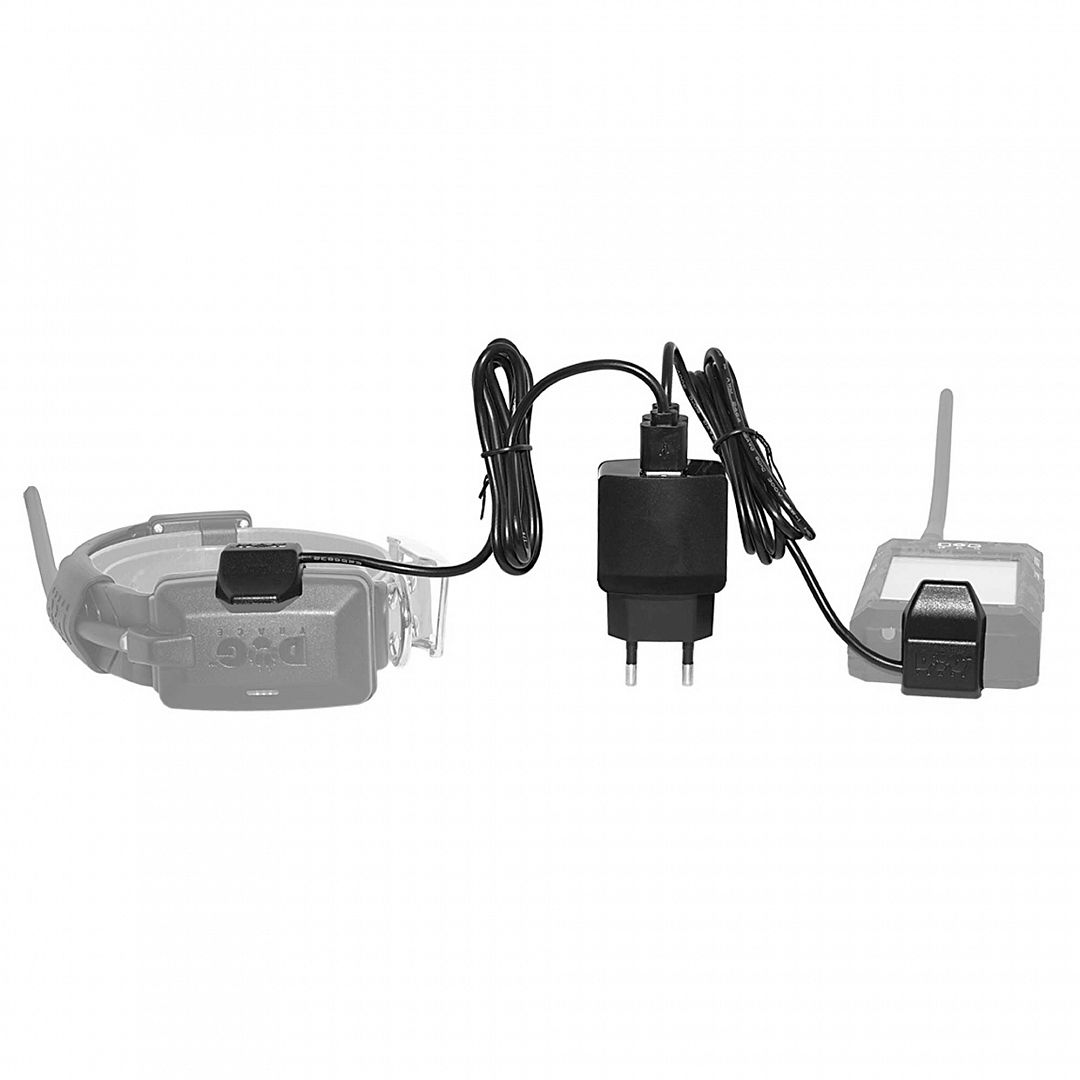

  • Dual power adapter, two USB cables with GPS charging clip
  • Cord for handing the receiver
  • Operating Manual and Certificate of Warranty

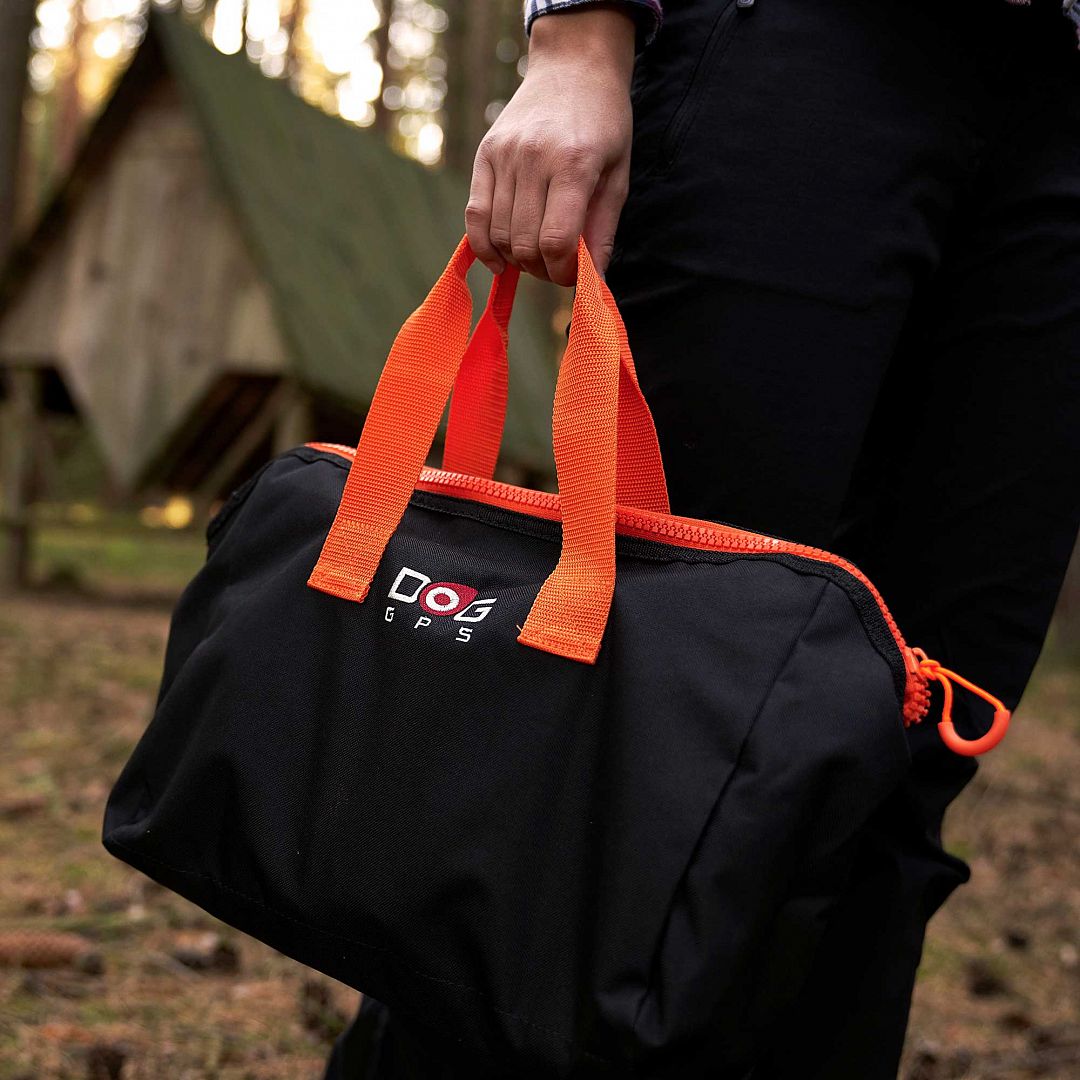

  • Equipment bag
Number of dogs 1 - 13
Stimulation pulses 0
Range 20 km
Collar material plastic
Collar size 25 mm × 70 cm
Power supply Li-Pol 1900 mAh
Receiver dimensions 119 × 62 × 15 mm
Transmitter dimensions 77 × 45 × 29 mm
Receiver weight (without battery) 192 g
Transmitter weight (without battery) 142 g
Acoustic signal
Phone control
Maps online/offline
Tracing
Barking detection
Geo-fence
Measurement
BEEPER - run/point
FENCE - circle
WAYPOINT
Compass
