Tracking system DOG GPS X20

Product features Tracking system DOG GPS X20

beeper run/point circle fence waypoint range 20 kilometers for 9 dogs compass rechargeable battery waterproof

Product Details Tracking system DOG GPS X20

DOG GPS X20 also features additional functions: compass, FENCE – acoustic border, which provides information about the dog crossing the boundaries at a specified distance from the receiver. Also, it has a function BEEPER (run/point) which shows, if the dog is in motion or still. The receiver allows storing its current position and then navigating to this position (the WAYPOINT function).

Device features:

  • The range between transmitter and receiver is up to 20 km in open space
    (depending on terrain, vegetation, and other factors)
  • Tracking up to 9 dogs on one receiver
  • Fast start
  • High sensitivity GPS in receiver and transmitter
  • Easy-to-read LCD display - in direct sunlight and in the dark
  • 100% waterproof receiver and transmitter
  • Long battery life - 40 hours of operation
  • Function compass
  • Function FENCE – acoustic border, which set out the space for a dog
  • Function BEEPER – motion/motionlessness detection
  • WAYPOINT function – ability to store 4 GPS coordinates of the receiver and navigation to these points
  • CAR MODE function – mode for using the receiver (manual device) in a car
  • Battery: Li-Pol 1900 mAh - recharging

Package contents:

  • Receiver including rechargeable accumulator Li-Pol 1900 mAh
  • Belt clip for the receiver and 2 pieces of screws

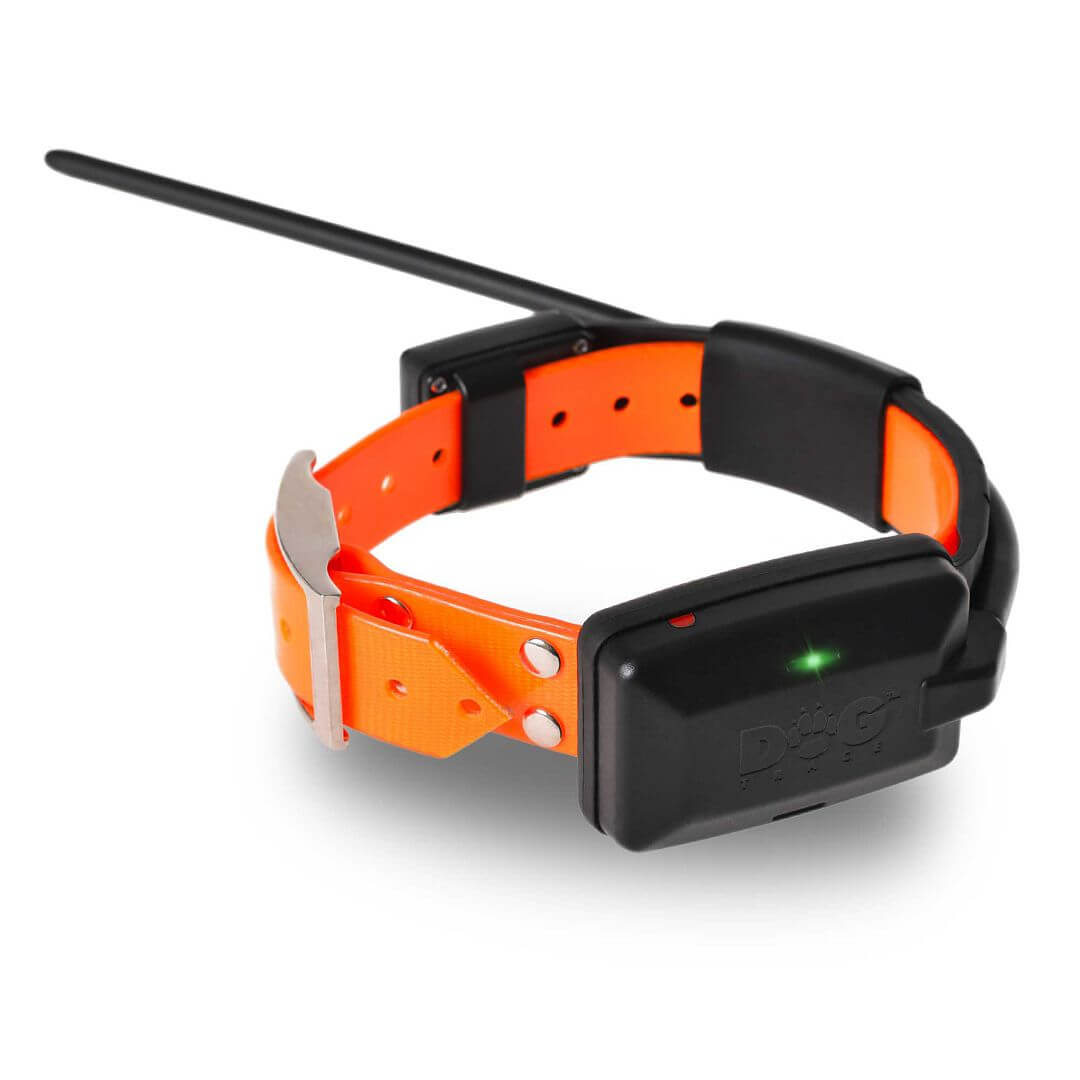

  • Transmitter including rechargeable accumulator Li-Pol 1900 mAh, strap

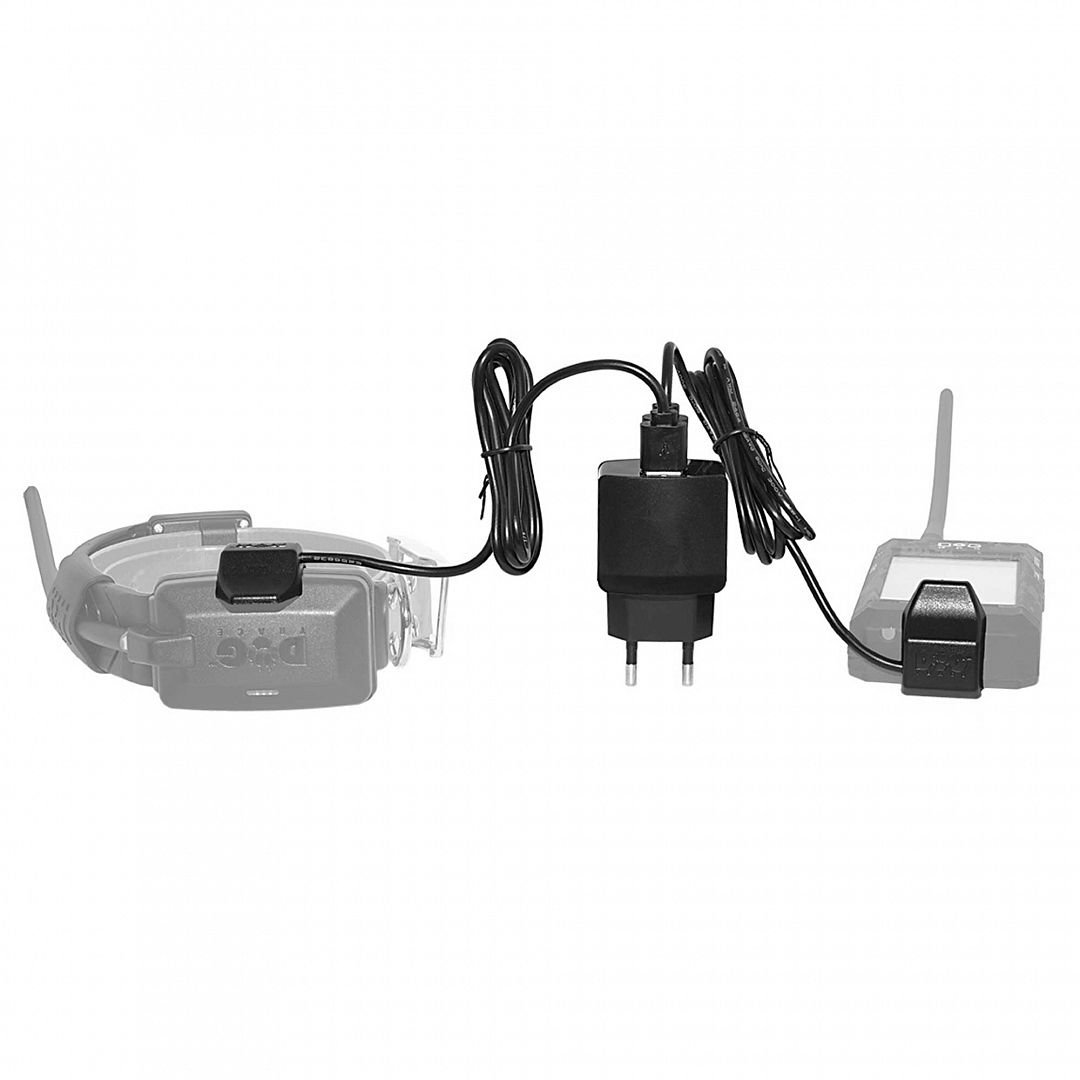

  • Dual power adapter, 2 pcs of USB cable with recharge clip for GPS
  • Lanyard for the receiver
  • User guide and certificate of warranty

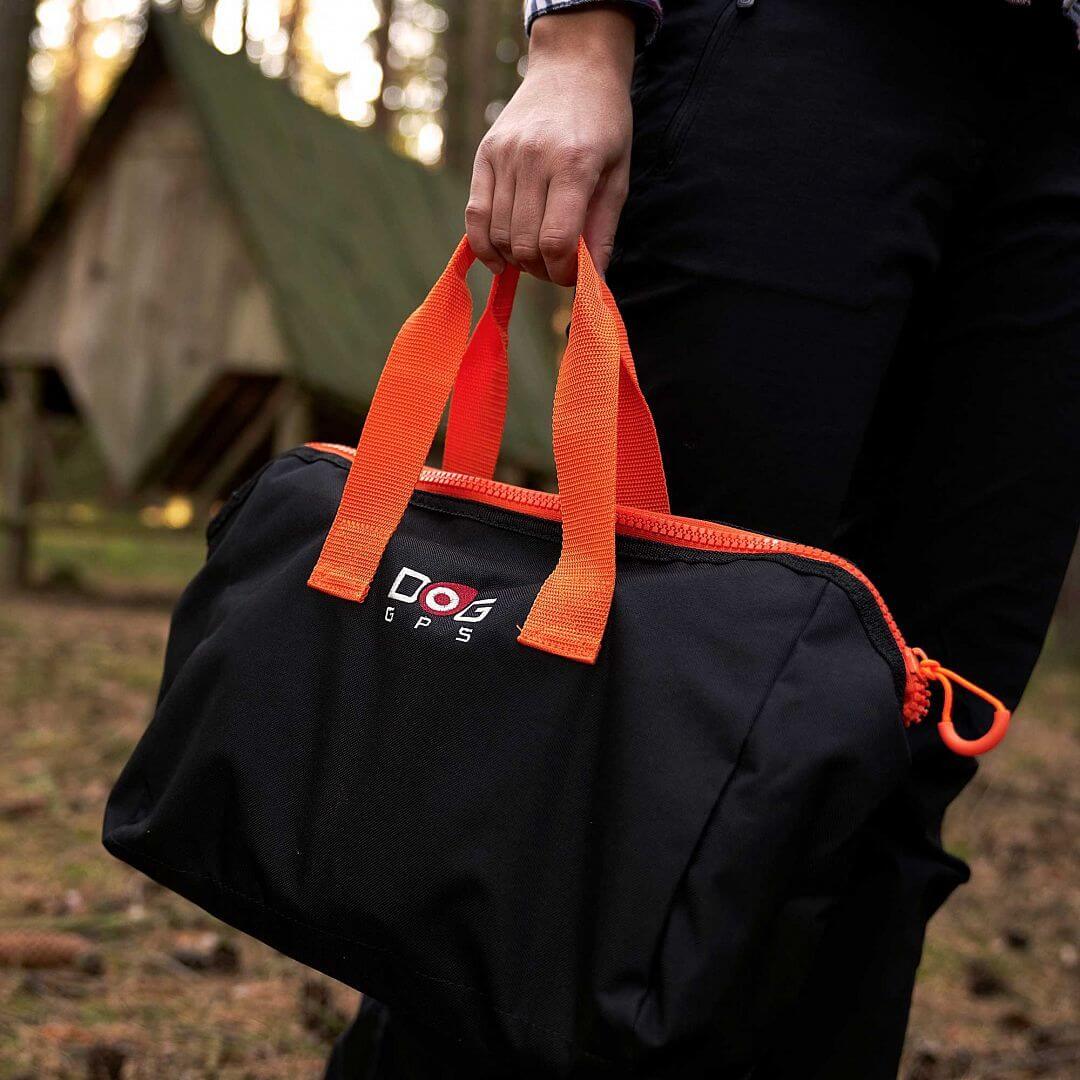

  • Carrying case
Number of dogs 1 - 9
Stimulation pulses 0
Dog size medium, large
Range 20 km
Collar material plastic
Collar size 25 mm × 70 cm
Power supply Li-Pol 1900 mAh
Smallest adjustable circumference 32 cm
Receiver dimensions 119 × 62 × 15 mm
Transmitter dimensions 77 × 45 × 29 mm
Receiver weight (without battery) 197 g
Transmitter weight (without battery) 142 g
BEEPER - run/point
FENCE - circle
WAYPOINT
Compass
