GPS locating and training system for dogs with the possibility of using map data.…
The Dogtrace DOG GPS X25TB is a sophisticated device used for tracking and training up to 19 dogs.
Full Feature - GPS and Training Device with Sound Locator
GPS dog collar with training module and the possibility of sound localization of the dog, e.g. in dense forest or in the dark. Choice of 3 different tones. The volume can be adjusted in four levels.
Track up to 19 dogs, handlers and waypoints
Up to 19 devices can be monitored from one receiver. Transmitters (collars), receivers of other members (handlers) as well as waypoints can be freely stored in nineteen positions - subsequent navigation.
Free RF technology for communication
The transmitter gets its position from GPS satellites and sends the position information to the handler's receiver using radio frequency signal (RF technology). The radio link works even where there is no GSM signal. It is very accurate and you always have the dogs current location. Completely free of charge.
GPS, GLONASS and GALILEO navigation systems
Benefit from access to various satellite navigation systems for the best possible service even in the most challenging conditions. The DOG GPS device includes a highly sensitive GPS/Galileo receiver that has the highest accuracy and data reception in remote locations with challenging terrain.
DOG GPS range:
- Range between transmitter and receiver is 20 km in line-of-sight
- The distance varies lawfully due to external factors such as terrain ruggedness and vegetation density
- In line-of-sight conditions, the range can be above 20 km, while in hilly terrain with dense forest it naturally decreases
Features of the DOG GPS X25:
- Ability to track up to 19 dogs, handlers or waypoints on a single receiver (handheld device)
- Rechargeable receiver and transmitter, long battery life - over 40 hours of operation
- Charging time is around 3 hours - receiver and transmitter can be recharged simultaneously
- State-of-the-art technology with high GPS sensitivity in both the LoRa™ receiver and transmitter
- GPS dog collar with the highest possible quality and reliability of data transmission
- Receiver and transmitter are 100% waterproof, made of shockproof plastic
- Easy to read large LCD display on the receiver - in direct sunlight and in the dark
- Smallest and lightest transmitter (collar) among competing devices
- Simple, practical and intuitive operation
- Quick start handheld device
DOG GPS X25TB functions:
- COMPASS - direction to magnetic north
- BEEPER - detection of movement or dog standing still
- FENCE - circular fence - acoustic boundary to mark out the dog's space
- WAYPOINT - possibility to store 4 gps coordinates of the receiver - navigation to these points
- CAR mode - mode for using the receiver (handheld device) in the vehicle
- SOUND signal - can be selected from 3 different tones
- SOUND locator - volume can be set in 4 levels, choice of 3 different tones (X25B and X25TB only)
- LIGHT - light mode is used to help locate the dog in the dark (X25T and X25TB only)
- IMPULSE - 15 levels of stimulation pulse (X25T and X25TB only)
Package Contents:

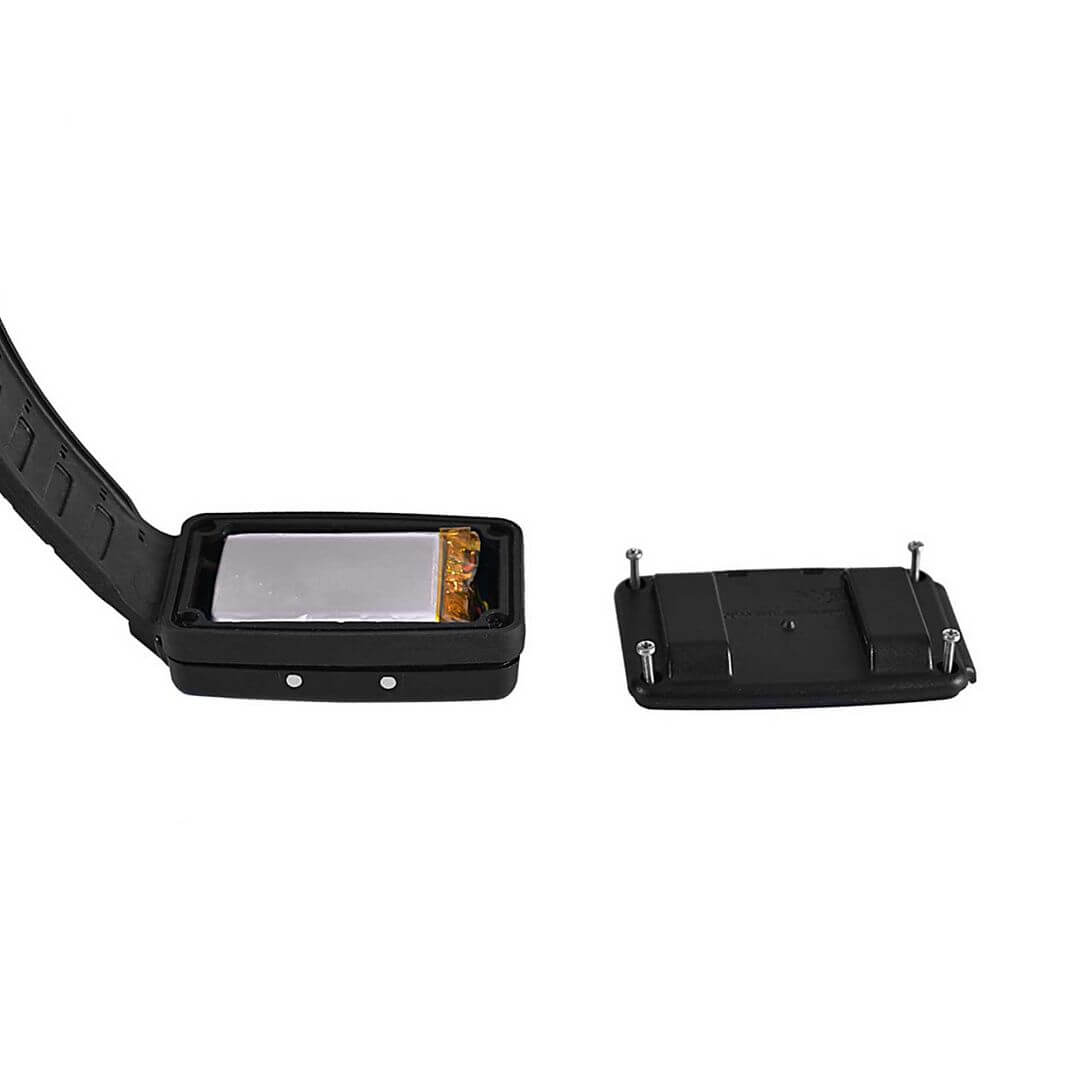

- Transmitter (collar) incl. 1900 mAh Li-Pol battery and 70 cm long plastic orange strap

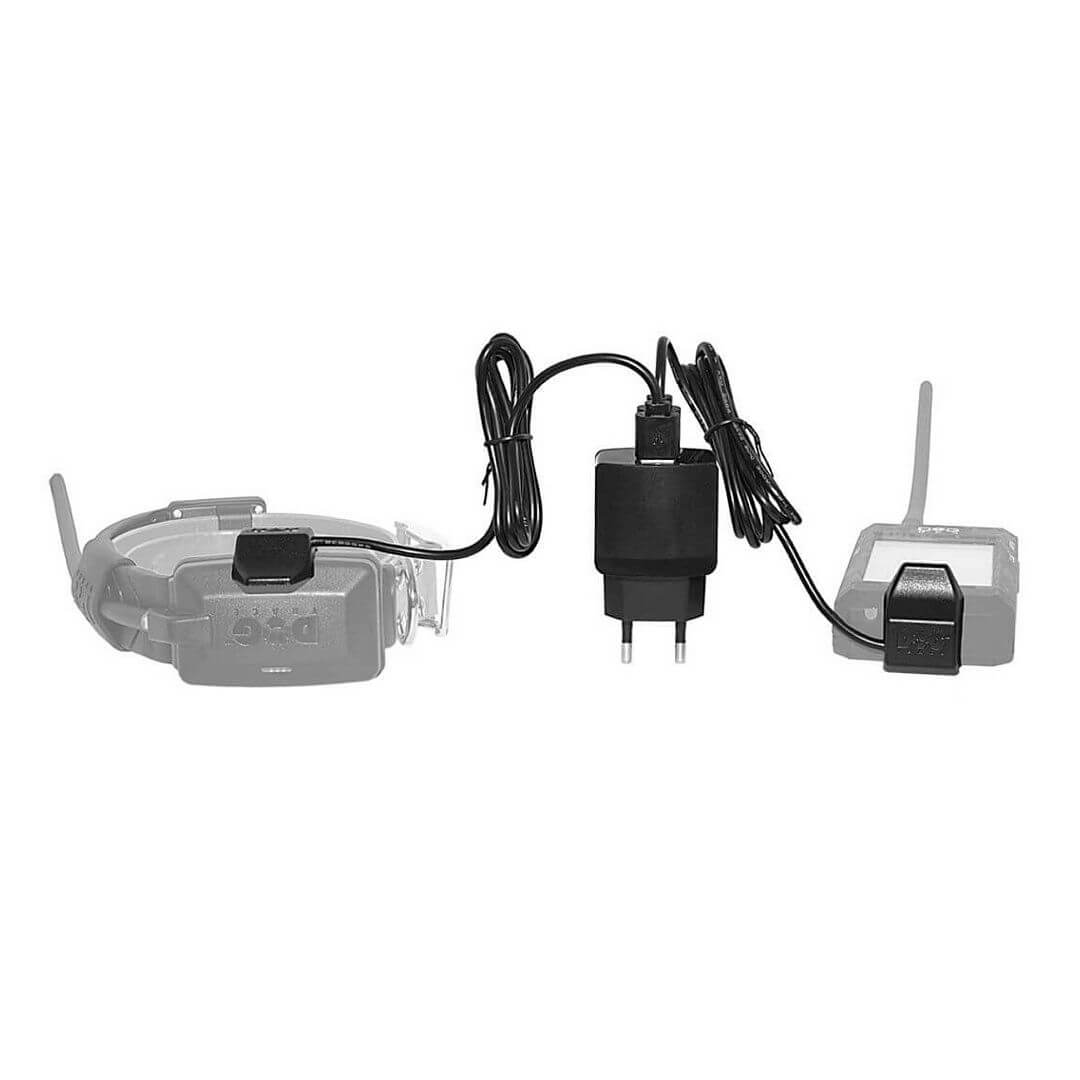

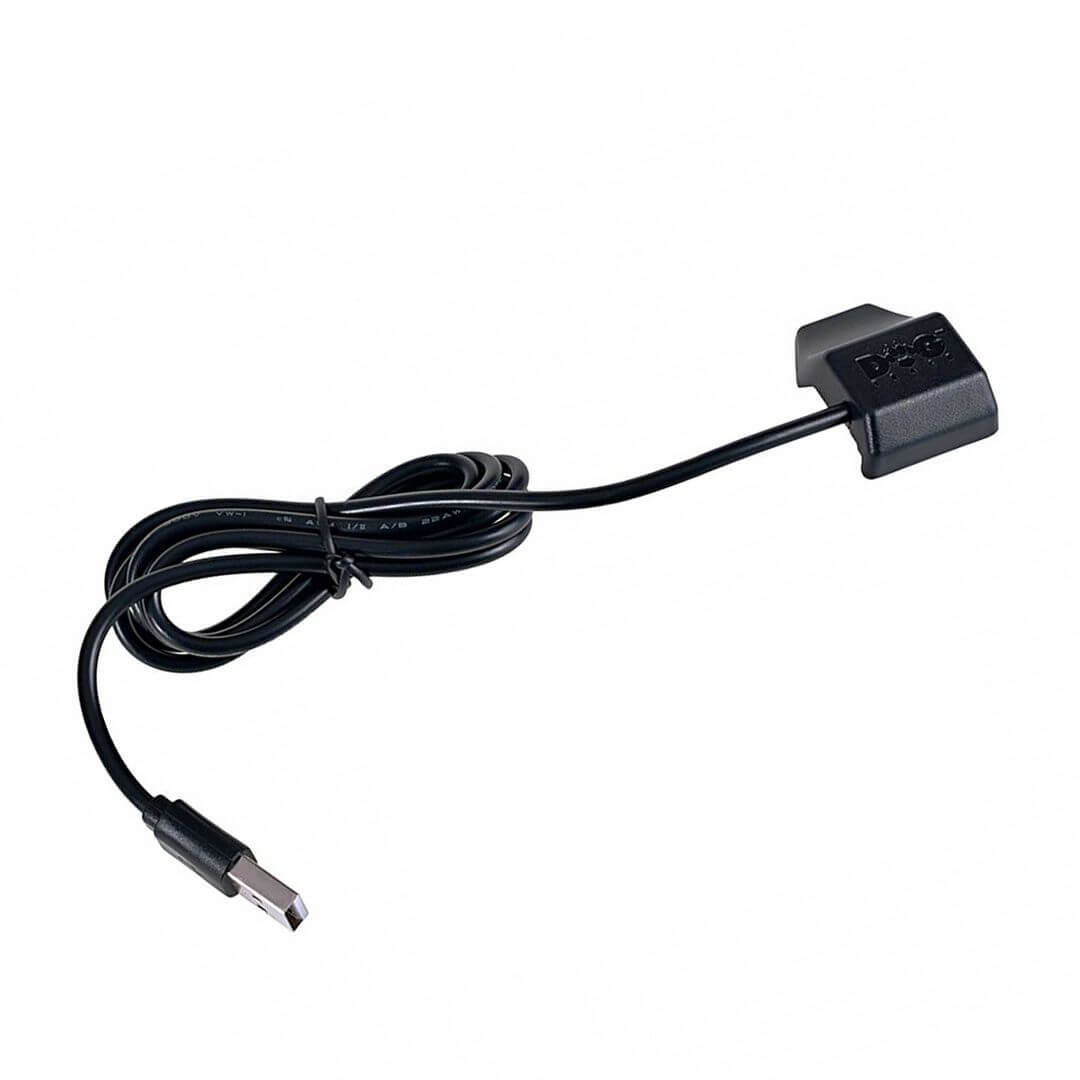

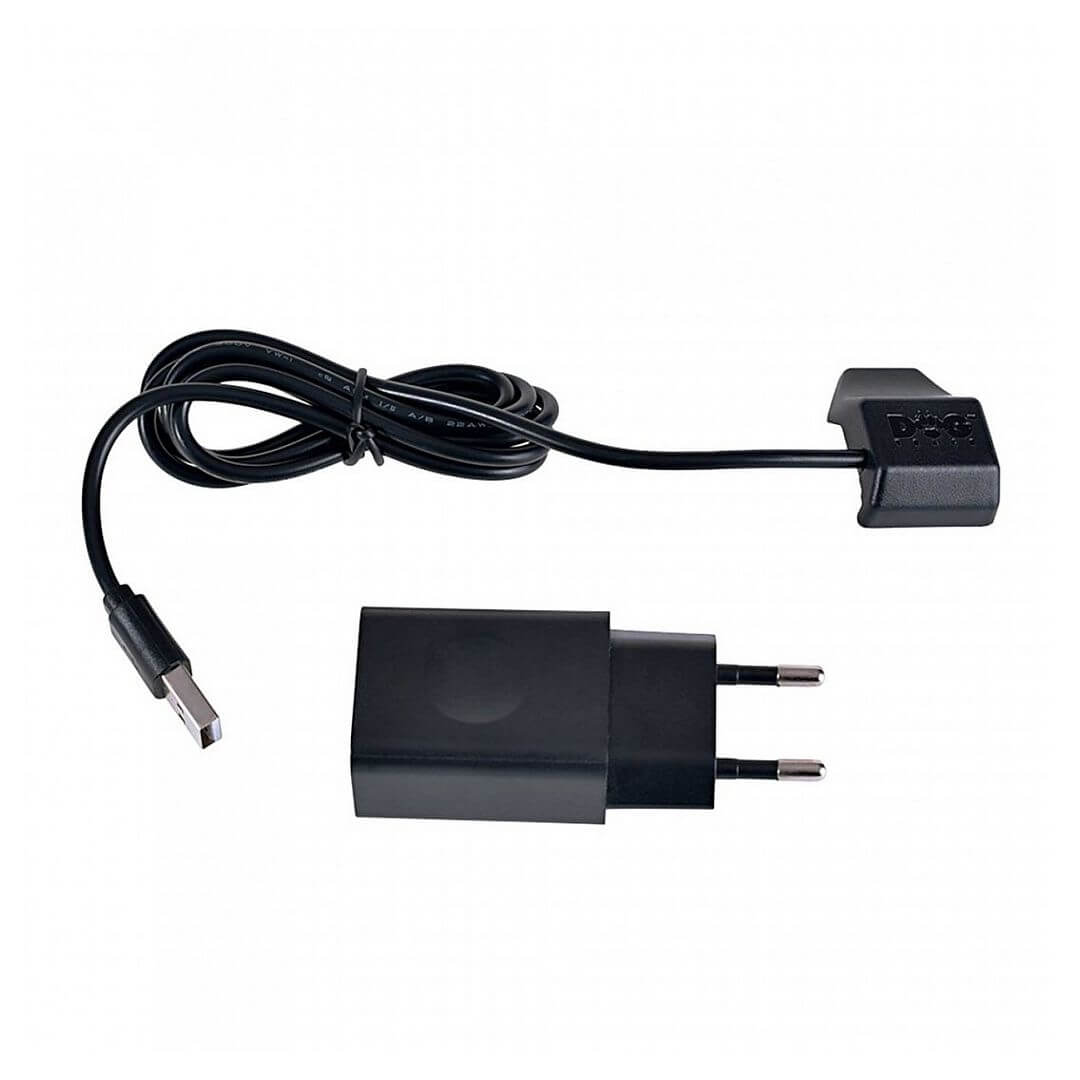

- Power adapter with USB cable and charging clip for DOG GPS
- Set of contact points, 2 pcs 10 mm, 2 pcs 17 mm
- Instructions and warranty card
- The X25 controller cannot be connected to the app on your mobile phone.
- The X25 is compatible with the X20 and X30 series GPS collars.
- The X30 controller cannot control the training functions - pulse, sound and light on the X25 series GPS collars.
