Tracking system with beeper collar and training module DOG GPS X25TB

Product features Tracking system with beeper collar and training module DOG GPS X25TB

beeper run/point circle fence waypoint range 20 kilometers for 19 devices compass rechargeable battery waterproof tone beeper horn light impulse

Product Details Tracking system with beeper collar and training module DOG GPS X25TB

Aquality and reliable device that keeps your dogs under constant supervision and 100% control. Whether you are hunting or on a casual walk in the woods. The Dogtrace DOG GPS X25TB is a sophisticated device used for tracking and training up to 19 dogs.

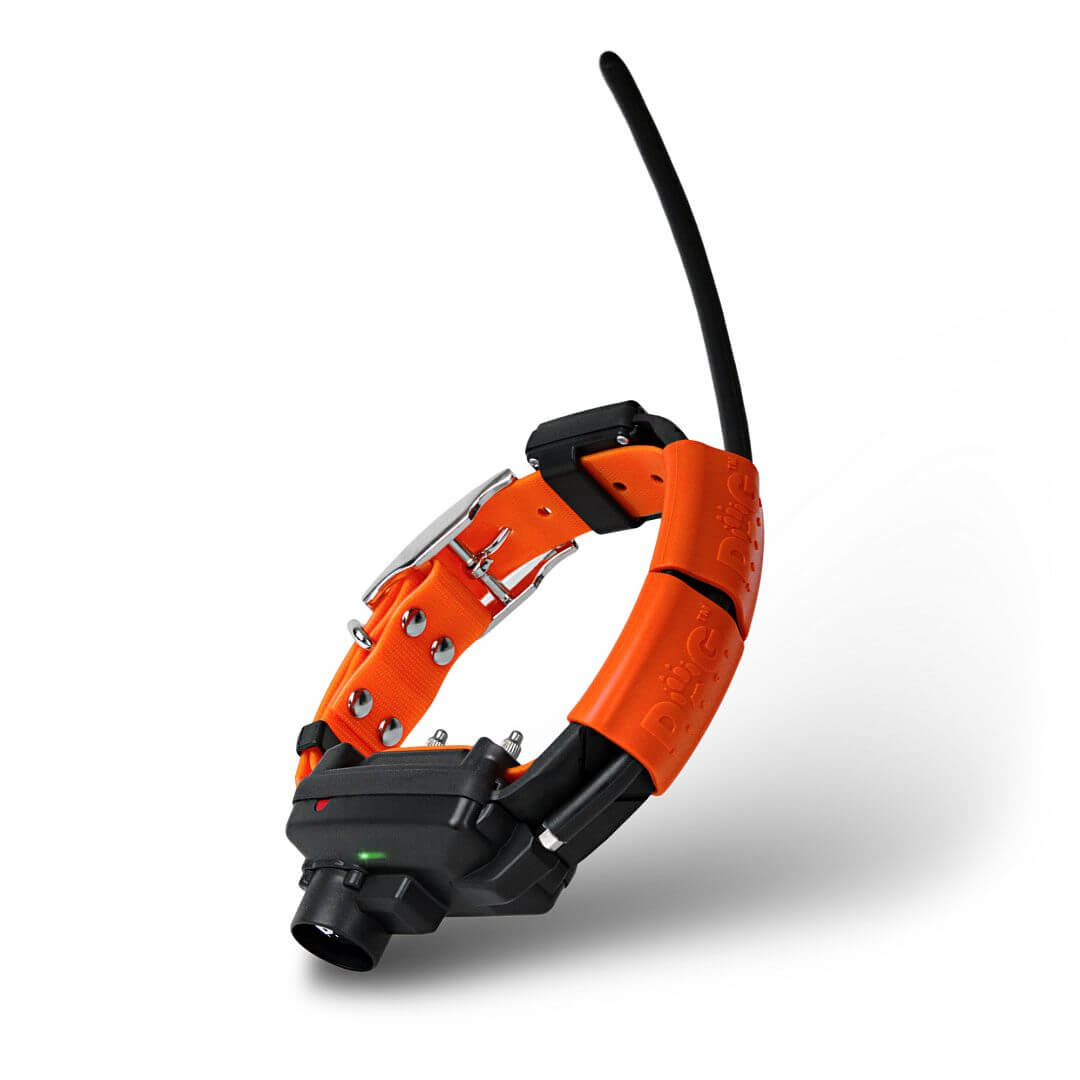

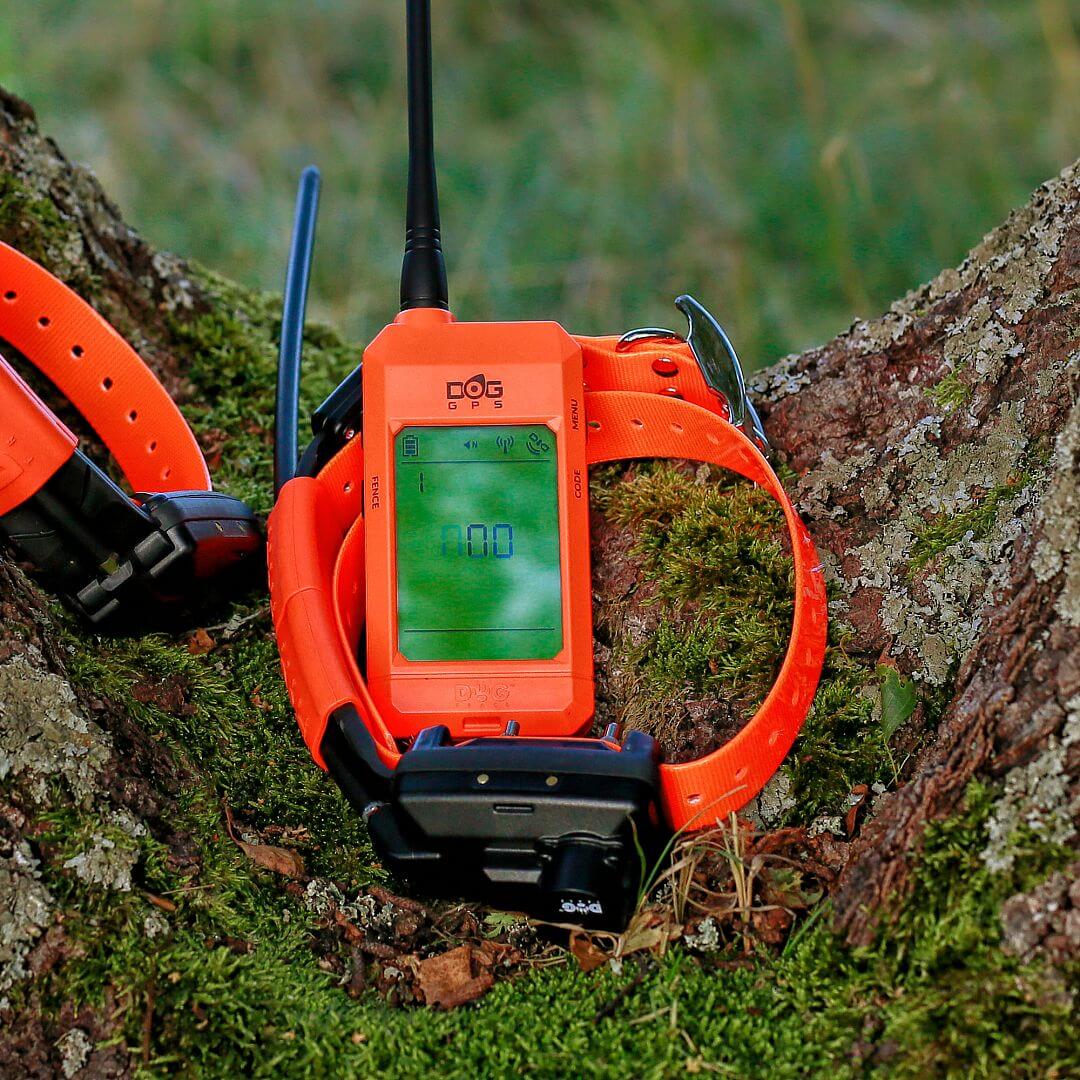

The kit consists of a transmitter that is placed on the dog's collar and a receiver (controller - handheld device) on which the handler tracks the distance and direction to the dogs location.

Full equipment - GPS and Training device with Sound locator

GPS dog collar with training module and the possibility of sound localization of the dog, e.g. in dense forest or in the dark. Choice of 3 different tones. The volume can be adjusted in four levels.

Track up to 19 dogs, handlers and waypoints

Up to 19 devices can be monitored from one remote control. Transmitters (collars), receivers of other members (handlers) as well as waypoints can be freely stored in nineteen positions - subsequent navigation to these waypoints.

Free RF technology for communication

The transmitter gets its position from GPS satellites and sends the position information to the handler's receiver using radio frequency signal (RF technology). The radio link works even where there is no GSM signal. It is very accurate and you always have the dogs current location. Completely free of charge.

GPS, GLONASS and GALILEO navigation systems

Benefit from access to various satellite navigation systems for the best possible service even in the most challenging conditions. The DOG GPS device includes a highly sensitive GPS/Galileo receiver that has the highest accuracy and data reception in remote locations with challenging terrain.

DOG GPS range:

  • Range between transmitter and receiver is 20 km in line-of-sight
  • The distance varies lawfully due to external factors such as terrain ruggedness and vegetation density
  • In line-of-sight conditions, the range can be above 20 km, while in hilly terrain with dense forest it naturally decreases

Features of the DOG GPS X25:

  • Ability to track up to 19 dogs, handlers or waypoints on a single receiver (handheld device)
  • Rechargeable receiver and transmitter, long battery life - over 40 hours of operation
  • Charging time is around 3 hours - receiver and transmitter can be recharged simultaneously
  • State-of-the-art technology with high GPS sensitivity in both the LoRa™ receiver and transmitter
  • GPS dog collar with the highest possible quality and reliability of data transmission
  • Receiver and transmitter are 100% waterproof, made of shockproof plastic

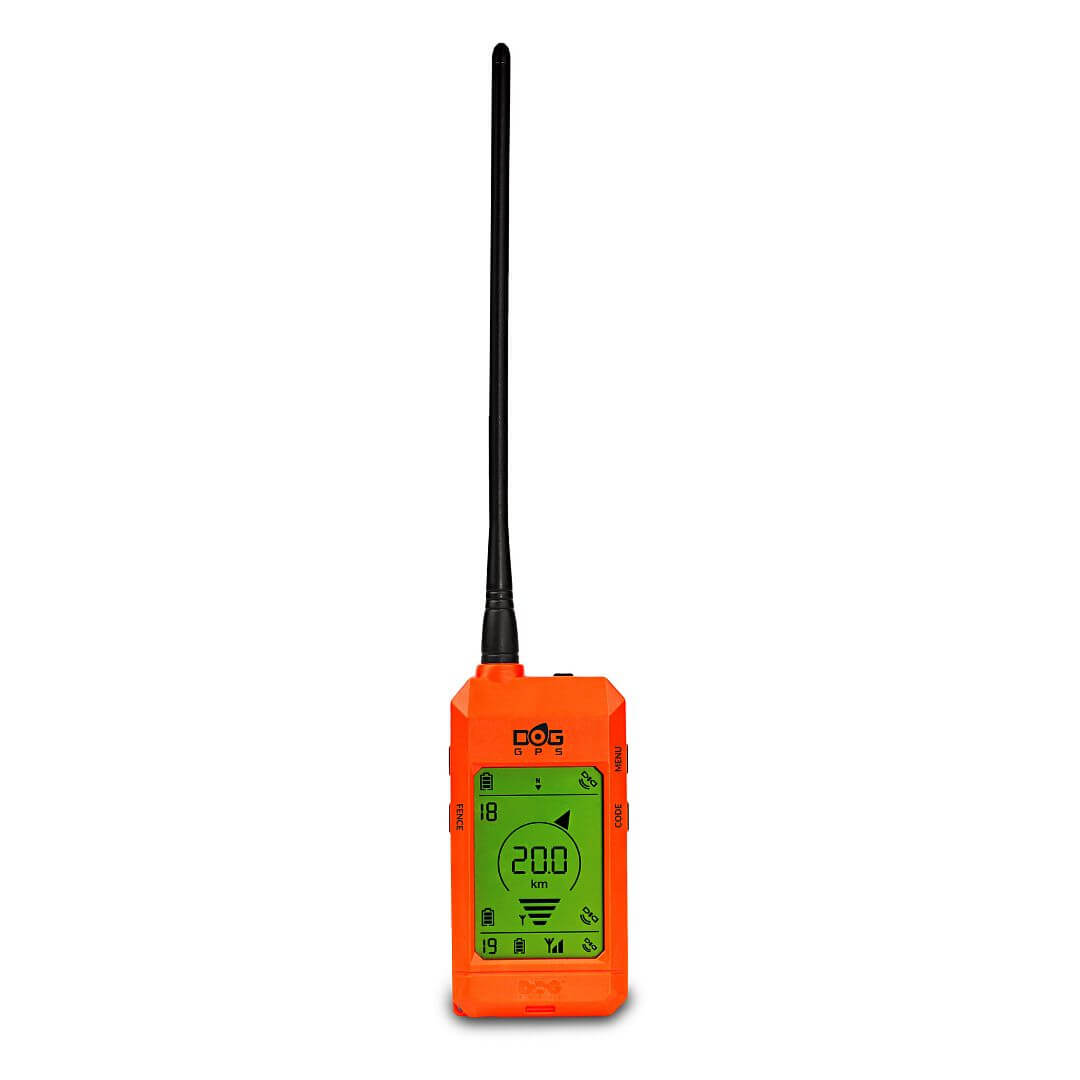

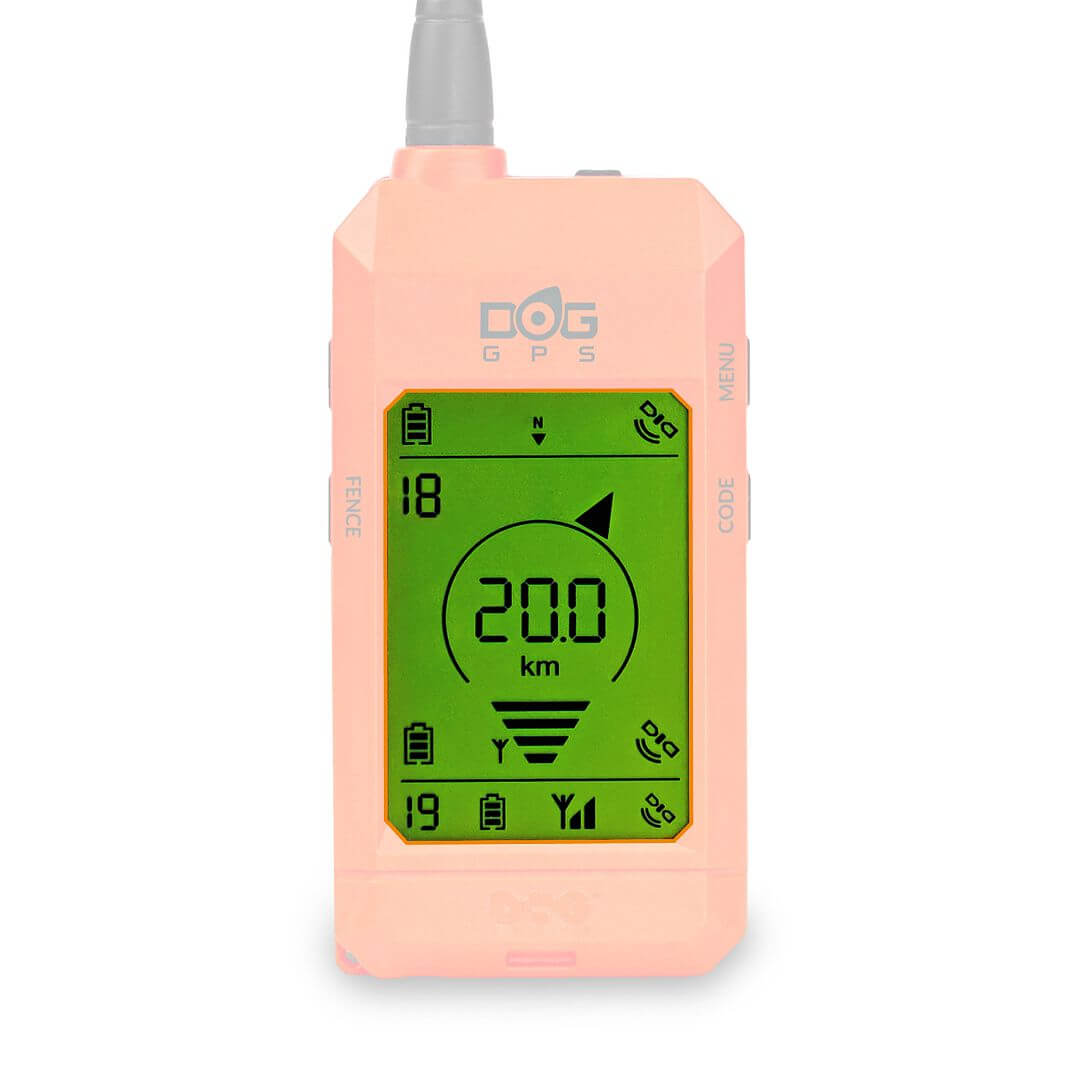

  • Easy to read large LCD display on the receiver - in direct sunlight and in the dark
  • Smallest and lightest transmitter (collar) among competing devices
  • Simple, practical and intuitive operation
  • Quick start handheld device

DOG GPS X25TB function:

  • COMPASS - direction to magnetic north
  • BEEPER - detection of movement or dog standing still
  • FENCE - circular fence - acoustic boundary to mark out the dog's space
  • WAYPOINT - possibility to store 4 gps coordinates of the receiver - navigation to these points
  • CAR mode - mode for using the receiver (handheld device) in the vehicle
  • SOUND signal - replaces the whistle, can be selected from 3 different tones
  • SOUND locator - volume can be set in 4 levels, choice of 3 different tones (X25B and X25TB only)
  • LIGHT - light mode is used to help locate the dog in the dark (X25T and X25TB only)
  • IMPULSE - 15 levels of stimulation pulse (X25T and X25TB only)

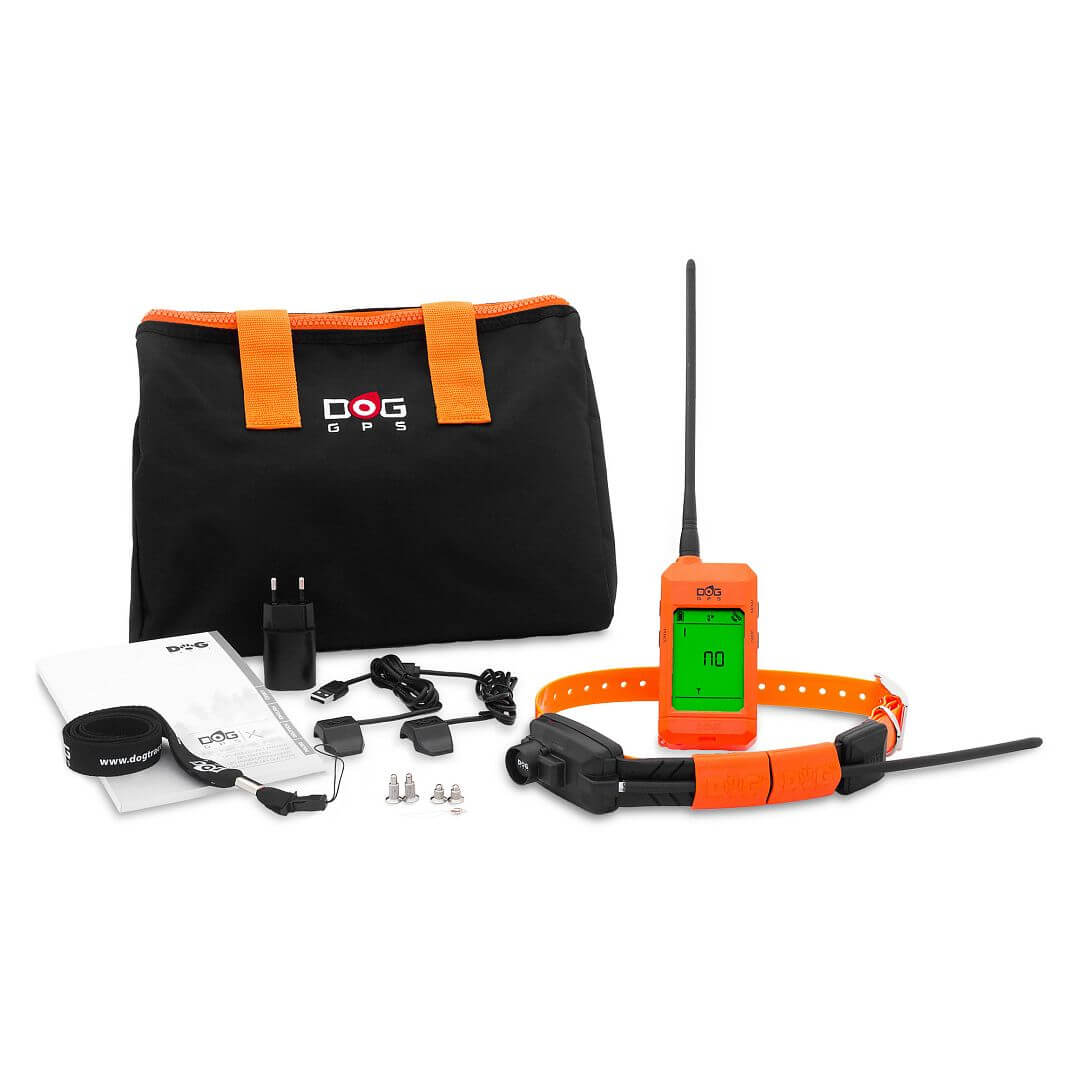

Package Contents:

  • Receiver incl. 1900 mAh Li-Pol battery
  • Set of contact points, 2 pcs 10 mm, 2 pcs 17 mm
  • Clip for hanging the receiver on a belt and 2 screws

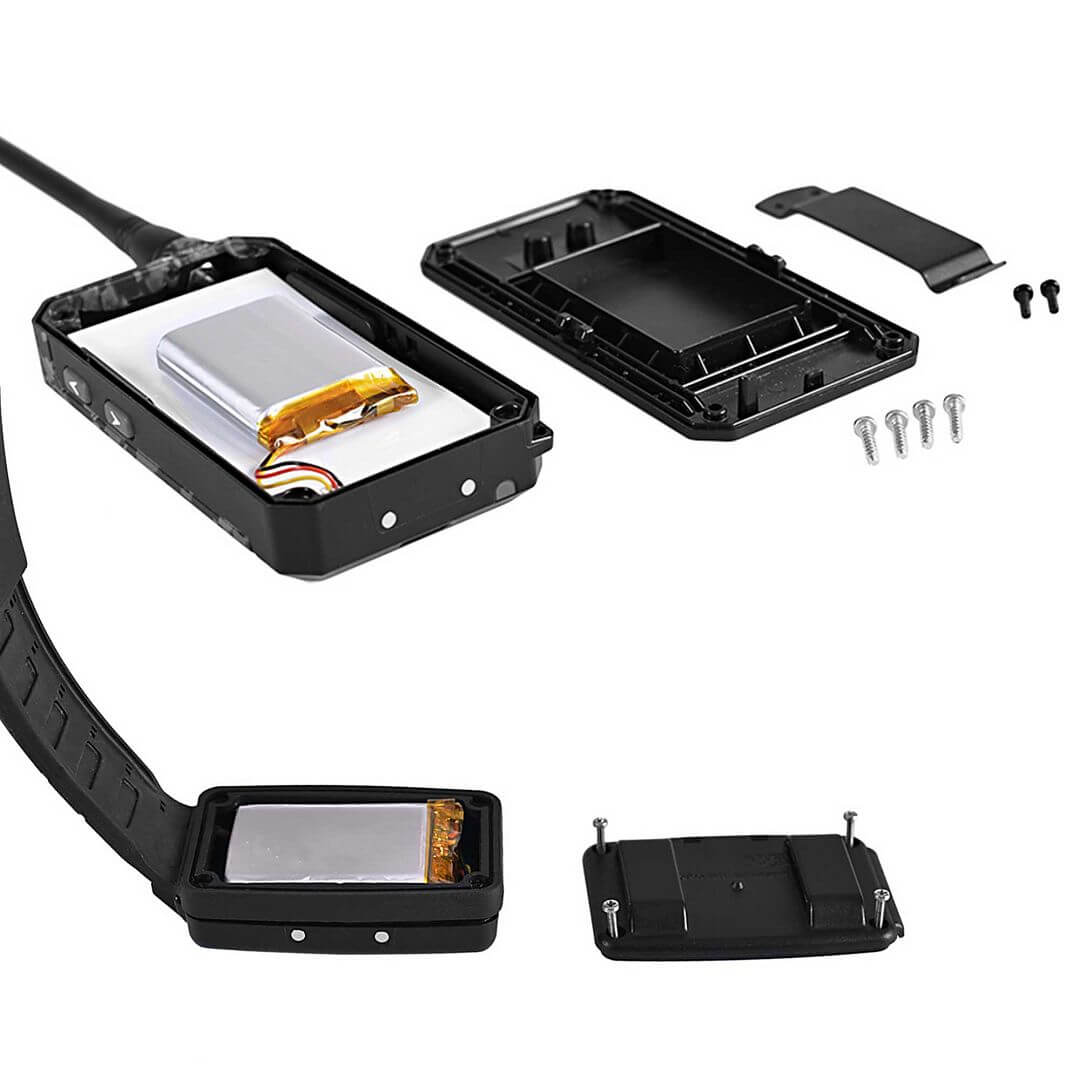

  • Transmitter incl. Li-Pol 1900 mAh battery and plastic orange strap

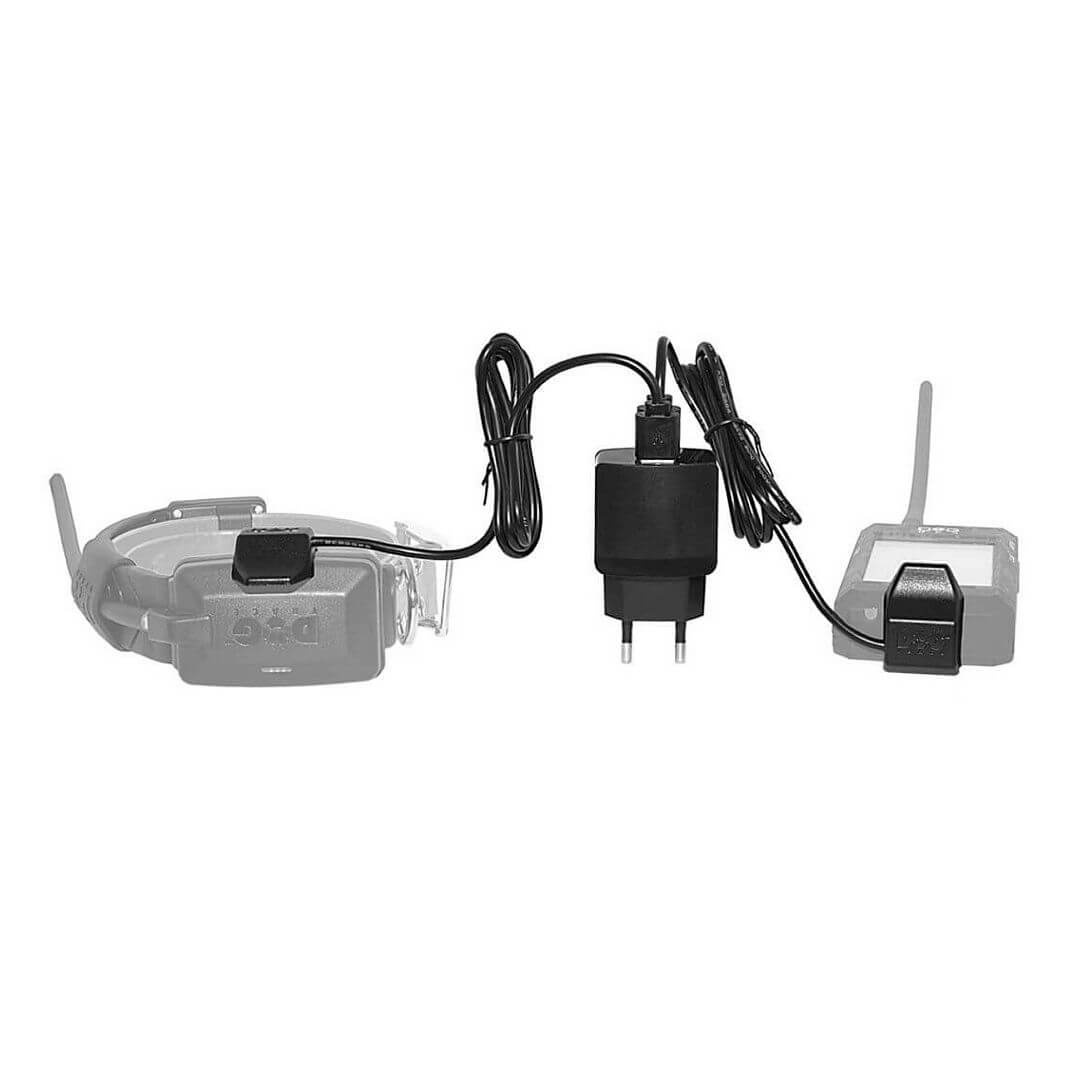

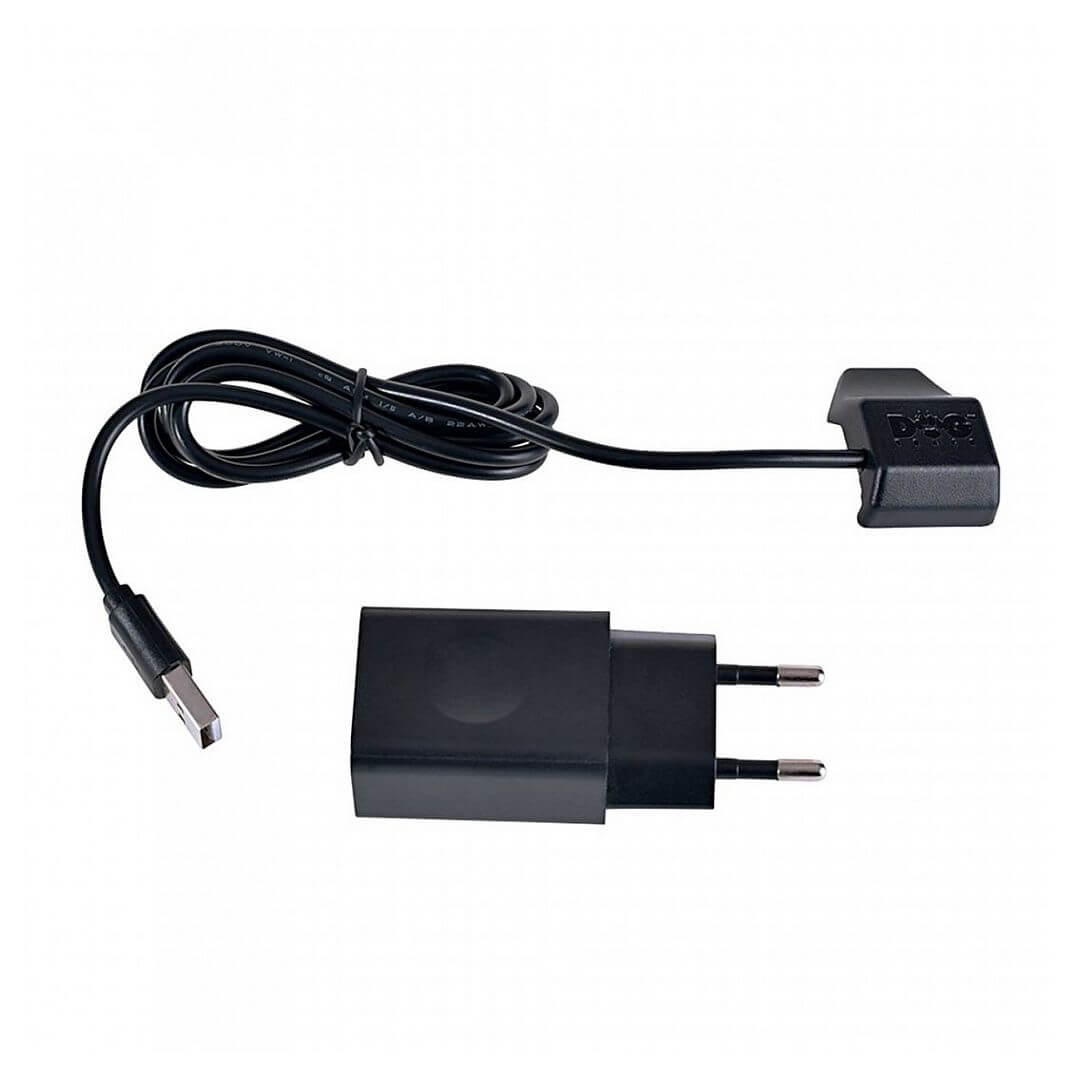

  • Dual power adapter, USB cable with charging clip for GPS 2 pcs
  • Cord for hanging the receiver
  • Instructions and warranty card
  • Transport bag
  • Plastic belt 25 mm × 70 cm - smallest adjustable circumference 32 cm

Optional accessories:

Number of dogs 1 - 19
Stimulation pulses 15
Dog size medium, large
Range 20 km
Collar material plastic
Collar size 25 mm × 70 cm
Power supply Li-Pol 1900 mAh
Receiver dimensions 119 × 62 × 15 mm
Transmitter dimensions 77 × 45 × 49 mm
Weight of the receiver 192 g
Transmitter weight 172 g
Stimulation Impulse
Sound locator
Light
Acoustic signal
BEEPER - run/point
FENCE - circle
WAYPOINT
Compass
