GPS tracking system for dogs allows you to use the map bases via an app for mobile phones…

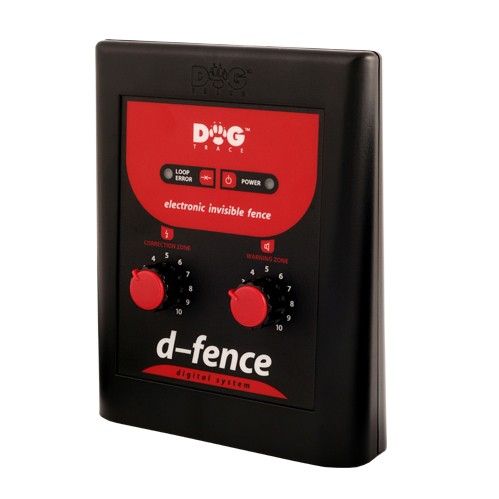

Transmitter unit
- warning zone: width of the zone from 0,4 to 5 m
- correction zone: width of the zone from 0,3 to 1,5 m
- power supply: adapter 230 V/50 Hz, 15 V / 100 mA
- max. covered area: 9 ha (square-shaped installation) 1ha= 10 000m2
- for installations up to 1200 m
- dimensions: 152 × 119 × 42 mm
- weight: 216 g

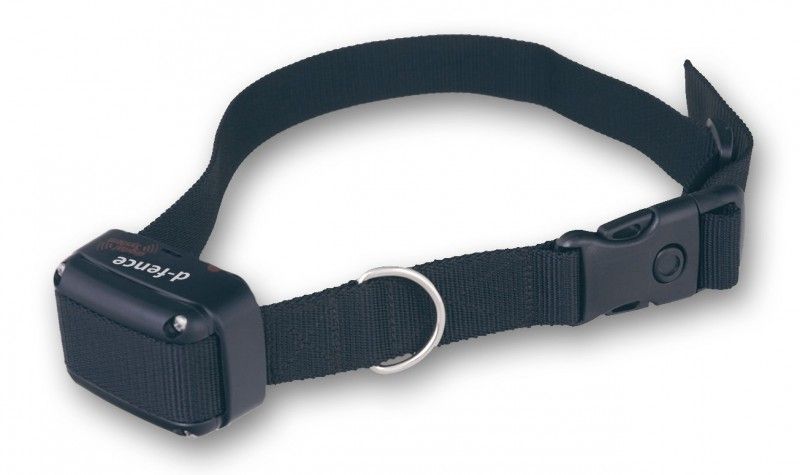

Receiver
- waterproof
- weight: 60 g (without battery and contact points)
- dimensions: 64 x 43 x 34 mm
- power supply: CR2 3V
- battery life: up to 6 months in stand-by
- 8 stimulation levels
Antenna wire
- copper insulated wire with cross-section from 0,75 to 2,5 mm2
- installation up to 400 m. . . . . . . . . . . . . . . . . . . . . . . . . . 0,75 mm2
- installation from 400 m to 600 m . . . . . . . . . . . . . . . . . . . . . 1 mm2
- installation from 600 m to 900 m . . . . . . . . . . . . . . . . . . . 1,5 mm2
- installation from 900 m to 1200 m. . . . . . . . . . . . . . . . . . . 2,5 mm2
